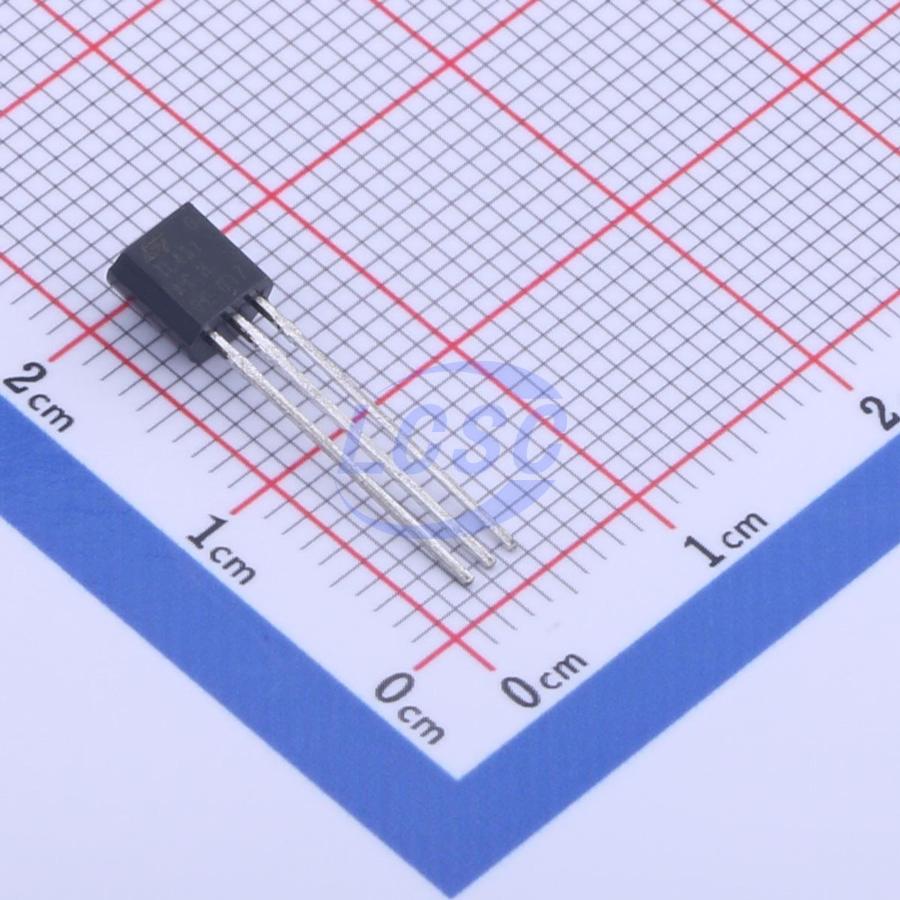

TL431ACZ
2.495V~36V ±1% 2.5V~36V 100mA Adjustable TO-92 Voltage Reference RoHS
TO-92ROHS3 CompliantActive
Automotive adjustable voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TL431ACZ
- Store part #
- C2802048
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C2802048
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.11 | ₹115.55 |
| 50+ | ₹18.26 | ₹913.00 |
| 150+ | ₹16.17 | ₹2,425.50 |
| 500+ | ₹13.56 | ₹6,780.00 |
| 2,500+ | ₹12.41 | ₹31,025.00 |
| 5,000+ | ₹11.71 | ₹58,550.00 |
5 × ₹23.11
₹115.55
excl. GST
₹136.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per box
TL431ACZ
₹115.55 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- 0℃~+70℃@(Ta)
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,500 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
The TL431 and TL432 are adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range from -40 °C up to +125 °C. The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors.
Applications
- Automotive
Key features
- Adjustable output voltage: 2.5 to 36 V
- 100 mA current capability
- 0.22 Ω typical dynamic impedance
- 0.5% voltage precision (only TL432)
- 1% voltage precision (only TL431)
- 2% voltage precision over temperature range from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431ACZT#C1235457ST · TO-92 | ST | TO-92 | 10 | ₹24.41 · 10 in stock | View |
 | TL431ACZ-AP#C283417ST · TO-92 | ST | TO-92 | 525 | ₹29.86 · 525 in stock | View |
 | TL431AILP#C72108TI · TO-92-3 | TI | TO-92-3 | 511 | ₹102.41 · 511 in stock | View |
 | TL431ACLPR#C80098TI · TO-92-3 | TI | TO-92-3 | 23,890 | ₹17.38 · 23,890 in stock | View |
 | TL431C#C262796HTC · TO-92 | HTC | TO-92 | 5,655 | ₹17.99 · 5,655 in stock | View |
