STDatasheet (PDF)

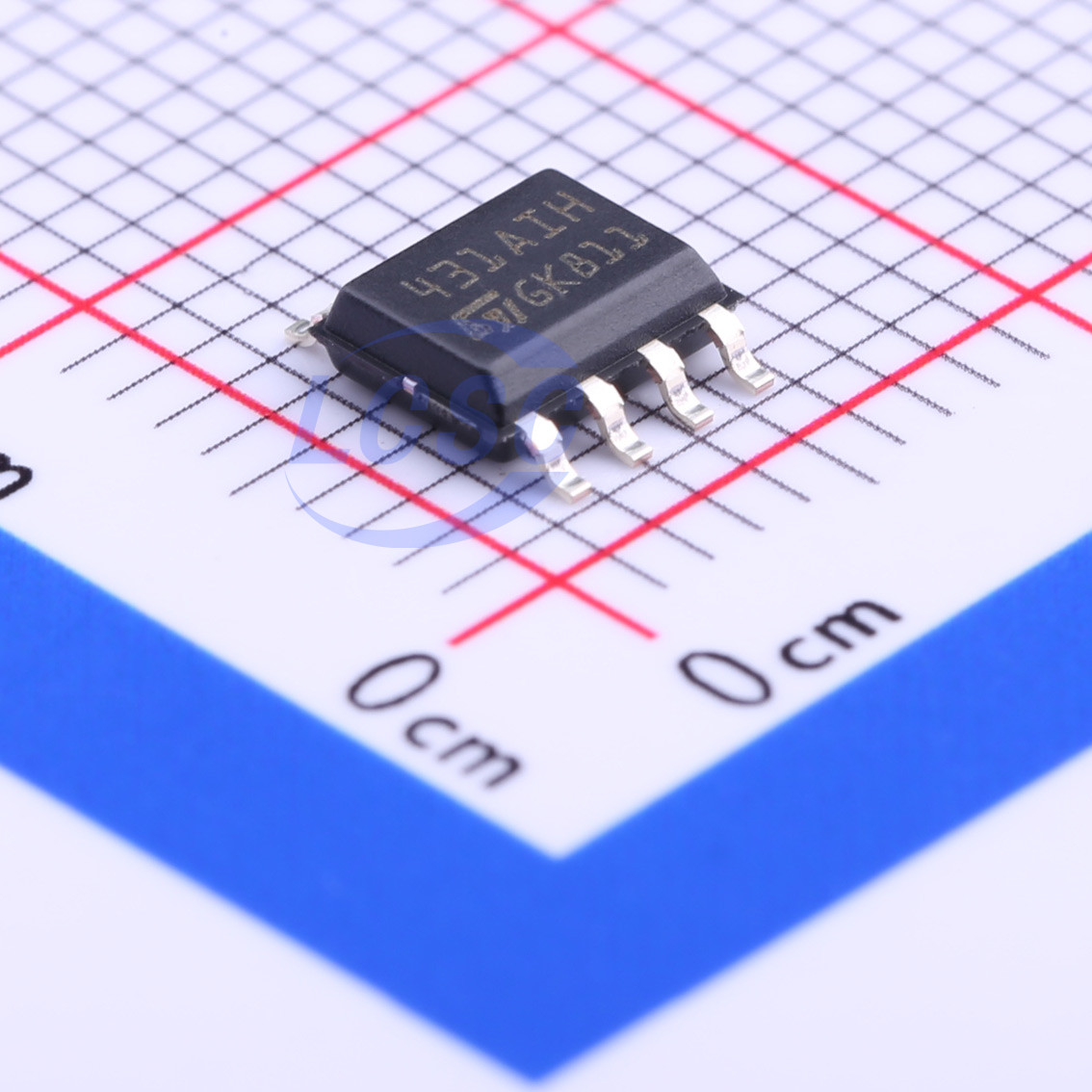

TL431AIDT
2.495V~36V ±1% 100mA Adjustable SO-8 Voltage Reference RoHS
SO-8ROHS3 CompliantActive
Automotive adjustable voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TL431AIDT
- Store part #
- C190796
- Package / case
- SO-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,885 in stock
#C190796
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.43 | ₹102.15 |
| 50+ | ₹16.99 | ₹849.50 |
| 150+ | ₹15.27 | ₹2,290.50 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 2,500+ | ₹12.94 | ₹32,350.00 |
| 5,000+ | ₹12.42 | ₹62,100.00 |
5 × ₹20.43
₹102.15
excl. GST
₹120.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL431AIDT
₹102.15 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The TL431 and TL432 are adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range. The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors. The TL431 and TL432 operate with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.22 Ω.
Applications
- Power supply
- Industrial
- Automotive
Key features
- AEC-Q100 qualified
- Adjustable output voltage: 2.5 to 36 V
- Sink current capability: 1 to 100 mA
- Typical output impedance: 0.22 Ω
- 1% and 2% voltage precision
- Automotive temp. range -40 °C to +125 °C
