STDatasheet (PDF)

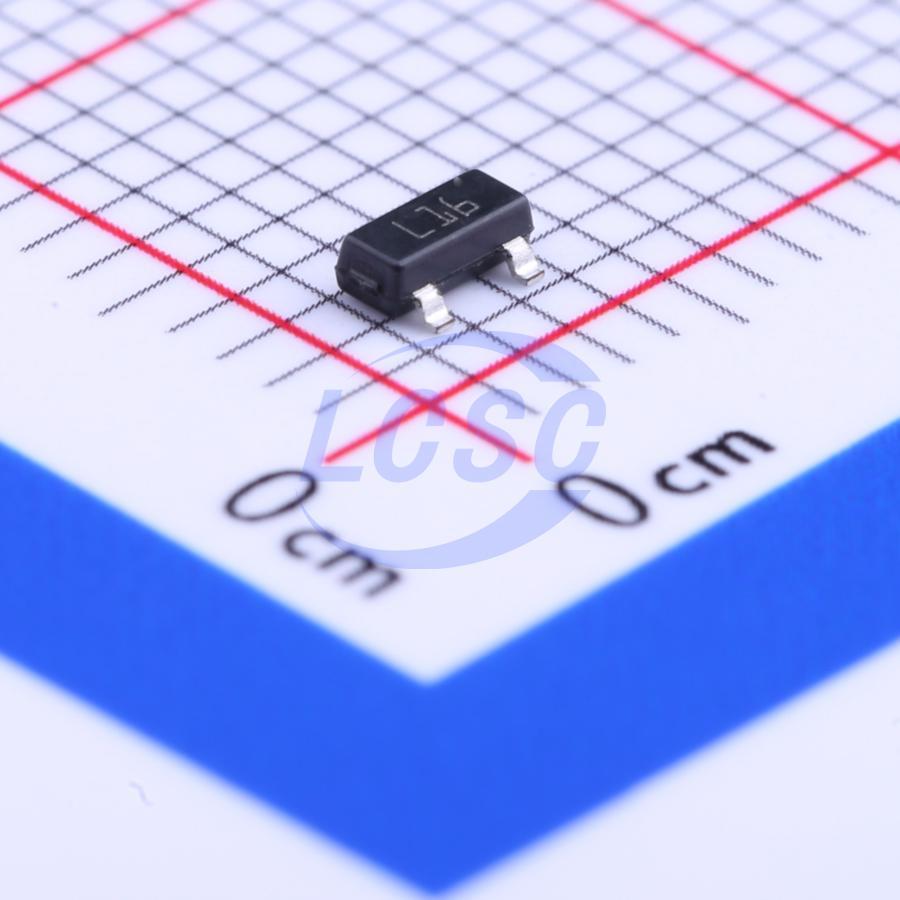

TL431AIL3T
2.495V~36V ±1% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Programmable Voltage Reference
- Manufacturer
- ST
- Manufacturer part #
- TL431AIL3T
- Store part #
- C113312
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,850 in stock
#C113312
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.16 | ₹95.80 |
| 50+ | ₹15.58 | ₹779.00 |
| 150+ | ₹13.79 | ₹2,068.50 |
| 500+ | ₹12.45 | ₹6,225.00 |
| 3,000+ | ₹10.09 | ₹30,270.00 |
| 6,000+ | ₹9.57 | ₹57,420.00 |
5 × ₹19.16
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431AIL3T
₹95.80 for 5 + GST
Specifications
- Quiescent Current
- 1.8uA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The TL431 and TL432 are programmable shunt voltage references with guaranteed temperature stability over the entire operating temperature range. The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors. The TL431 and TL432 operate with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.22 Ω.
Applications
- Power supply
- Industrial Automotive
Key features
- Adjustable output voltage: 2.5 to 36 V
- Sink current capability: 1 to 100 mA
- Typical output impedance: 0.22 Ω
- 1% and 2% voltage precision
- Automotive temp. range - 40 °C to +125 °C
