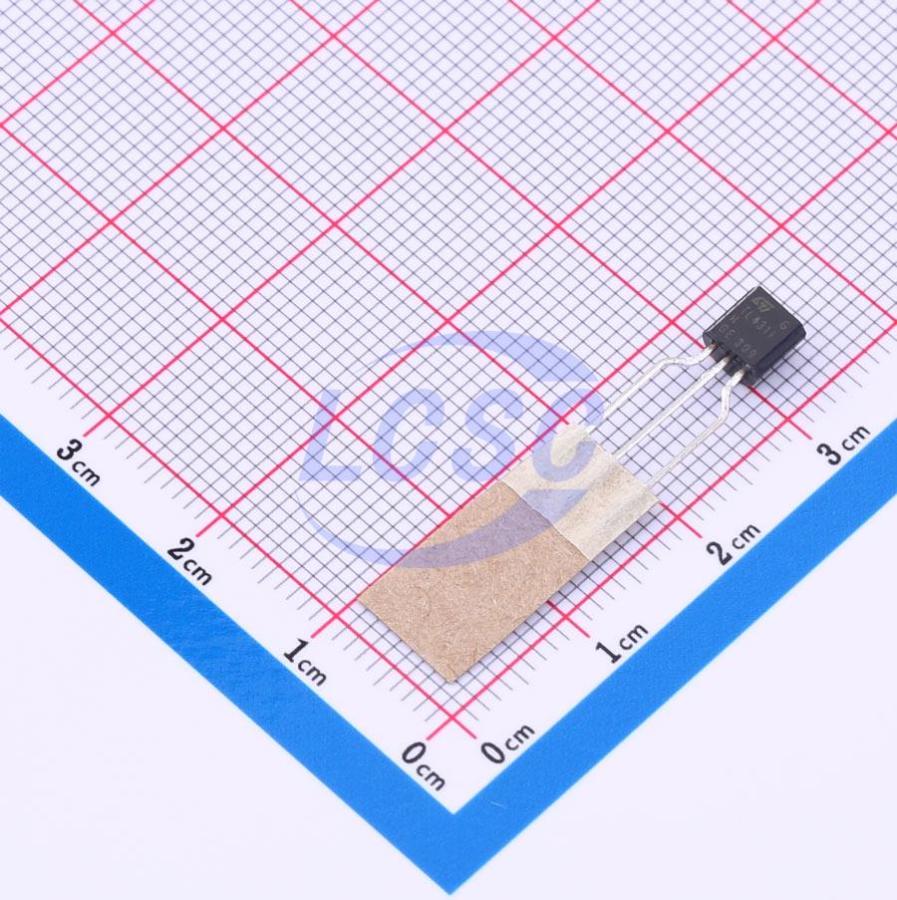

TL431IZT
2.495V~36V ±2% 2.5V~36V 100mA Adjustable TO-92 Voltage Reference RoHS
TO-92ROHS3 CompliantActive
Automotive adjustable voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TL431IZT
- Store part #
- C2156686
- Package / case
- TO-92
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,990 in stock
#C2156686
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.60 | ₹83.00 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹11.44 | ₹1,716.00 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 2,000+ | ₹9.12 | ₹18,240.00 |
| 4,000+ | ₹8.60 | ₹34,400.00 |
5 × ₹16.60
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TL431IZT
₹83.00 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±2%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃@(Ta)
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.452 g
Overview
The TL431 and TL432 are adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range from -40 °C up to +125 °C. The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors.
Applications
- Automotive
Key features
- Adjustable output voltage: 2.5 to 36 V
- 100 mA current capability
- 0.22 Ω typical dynamic impedance
- 0.5% voltage precision (only TL432)
- 1% voltage precision (only TL431)
- 2% voltage precision over temperature range from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TL431ILP#C113522TI · TO-92-3 | TI | TO-92-3 | 892 | ₹66.71 · 892 in stock | View | |
 | AiP431BJA92.TR#C52268475Wuxi I-core Elec · TO-92 | Wuxi I-core Elec | TO-92 | 480 | ₹9.19 · 480 in stock | View |
 | TL431K-T92-B#C71131UTC · TO-92 | UTC | TO-92 | 9,110 | ₹7.01 · 9,110 in stock | View |
 | TL431ILPR#C273655TI · TO-92-3 | TI | TO-92-3 | 15,275 | ₹17.21 · 15,275 in stock | View |
 | TL431#C47120513BLUE ROCKET · TO-92 | BLUE ROCKET | TO-92 | 10 | ₹7.47 · 10 in stock | View |
