UMWDatasheet (PDF)

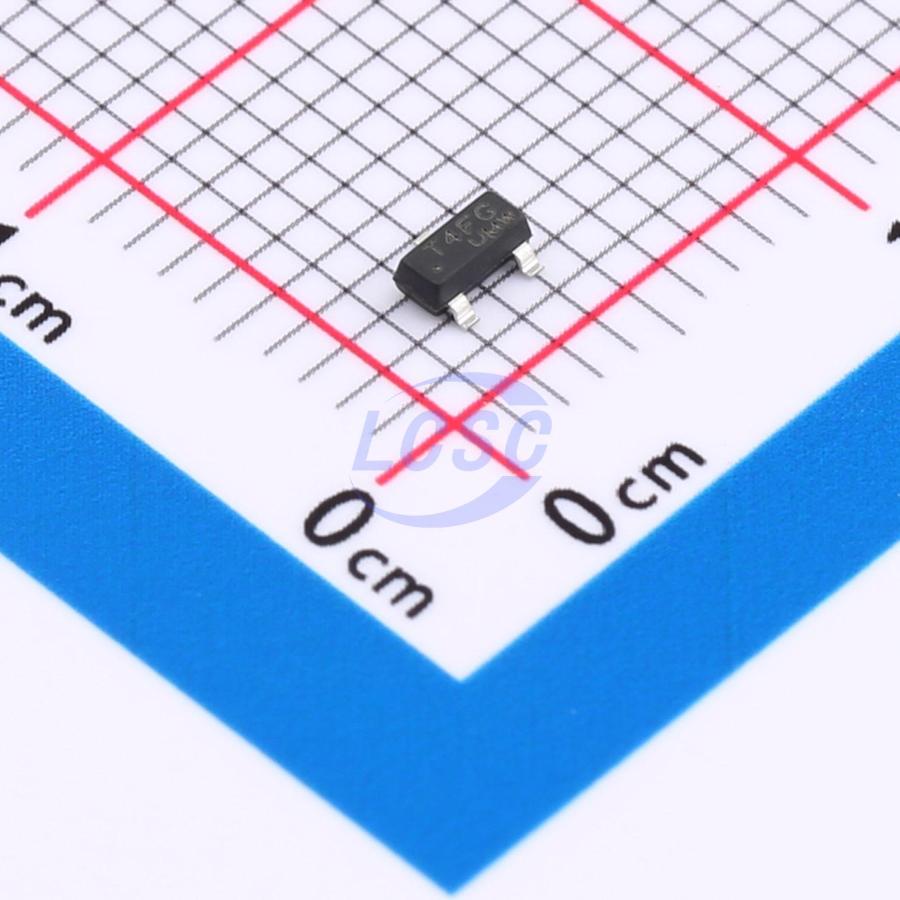

TL432BIDBZR(UMW)
Voltage Reference IC Adjustable 2.5V~36V ±0.5% 100mA SOT-23
SOT-23ROHS CompliantActive
Precision Adjustable Shunt Regulator
- Manufacturer
- UMW
- Manufacturer part #
- TL432BIDBZR(UMW)
- Store part #
- C29780635
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C29780635
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.94 | ₹59.40 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.16 | ₹18,960.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.94
₹59.40
excl. GST
₹70.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432BIDBZR(UMW)
₹59.40 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.076 g
Overview
UMW TL432xIDBZR is an adjustable three-terminal shunt regulator with excellent thermal stability over its operating temperature range. With external resistors, the output voltage can be set to any value between Vref (approximately 2.5V) and 36V. It offers a very sharp turn-on characteristic, making it a suitable replacement for Zener diodes in many applications.
Key features
- Adjustable output voltage: up to 36V
- Low dynamic output impedance: 0.3Ω
- Sink current capability: 1.0~100mA
- Equivalent full-scale temperature coefficient: typical 50ppm/℃
- Temperature compensated over rated operating temperature range
- Low output noise
- Fast startup response
