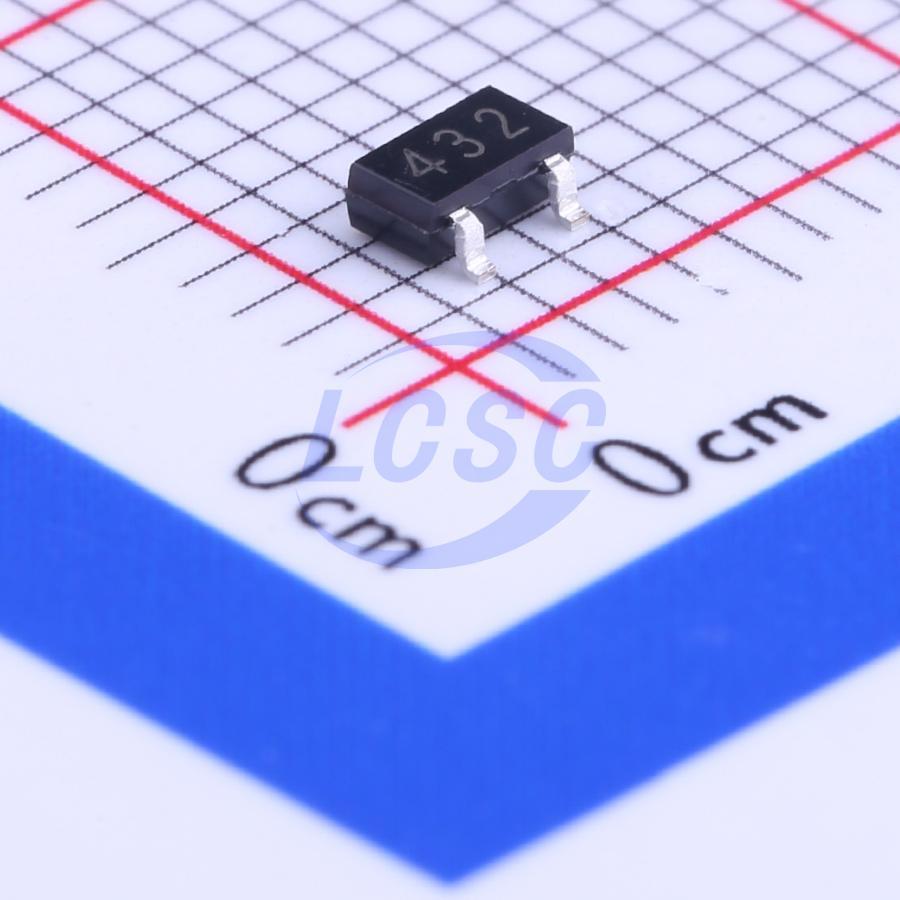

TL432CSF
1.24V~18V ±0.5% 1.24V~18V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Low Voltage Adjustable Precision Shunt Regulator
- Manufacturer
- HTC
- Manufacturer part #
- TL432CSF
- Store part #
- C126100
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,940 in stock
#C126100
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.69 | ₹103.45 |
| 50+ | ₹16.13 | ₹806.50 |
| 150+ | ₹13.85 | ₹2,077.50 |
| 500+ | ₹12.13 | ₹6,065.00 |
| 3,000+ | ₹10.77 | ₹32,310.00 |
| 6,000+ | ₹10.08 | ₹60,480.00 |
5 × ₹20.69
₹103.45
excl. GST
₹122.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL432CSF
₹103.45 for 5 + GST
Specifications
- Output Voltage
- 1.24V~18V
- Tolerance
- ±0.5%
- Voltage - Supply
- 1.24V~18V
- Minimum Cathode Current for Regulation
- 80uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The TL432 is a three-terminal Shunt Voltage Reference providing a highly accuracy 1.24V band-gap reference with 0.5% and 1.0% tolerance. The TL432 thermal stability and wide operating current(100mA) makes is suitable for all variety of applications that are looking for a low cost solution with high performance. The TL432 is an ideal voltage reference in an isolated feed circuit for 3.0V to 3.3V switching mode power supplies.
Applications
- Shunt Regulator
- Voltage Monitoring
- Current Source and Sink Circuits
- Analog & Digital Circuits Requiring Precision References
- Low Out Voltage (3.0V to 3.3V) Switching Power Supply Error Amplifier
Key features
- Low Voltage Operation : 1.24 V Programmable Out Voltage to 18V
- Sink Current Capability of 1mA to 100mA
- Equivalent full range Temperature Coefficient of 50ppm/℃
- Temperature Compensated for operation over full rated operating Temperature Range
- Low Output Noise Voltage
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LMV431BIM3/TR#C42377660HGSEMI · SOT-23-3 | HGSEMI | SOT-23-3 | 985 | ₹11.88 · 985 in stock | View | |
| LMV431BCM3/TR#C42377661HGSEMI · SOT-23-3 | HGSEMI | SOT-23-3 | 2,295 | ₹10.07 · 2,295 in stock | View | |
 | AZ431LANTR-TP#C48586681TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,680 | ₹7.95 · 2,680 in stock | View |
 | TLVH431BIDBZR-TP#C48586701TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,120 | ₹21.83 · 2,120 in stock | View |
 | TS432AILT-TP#C48586731TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,215 | ₹10.27 · 2,215 in stock | View |
