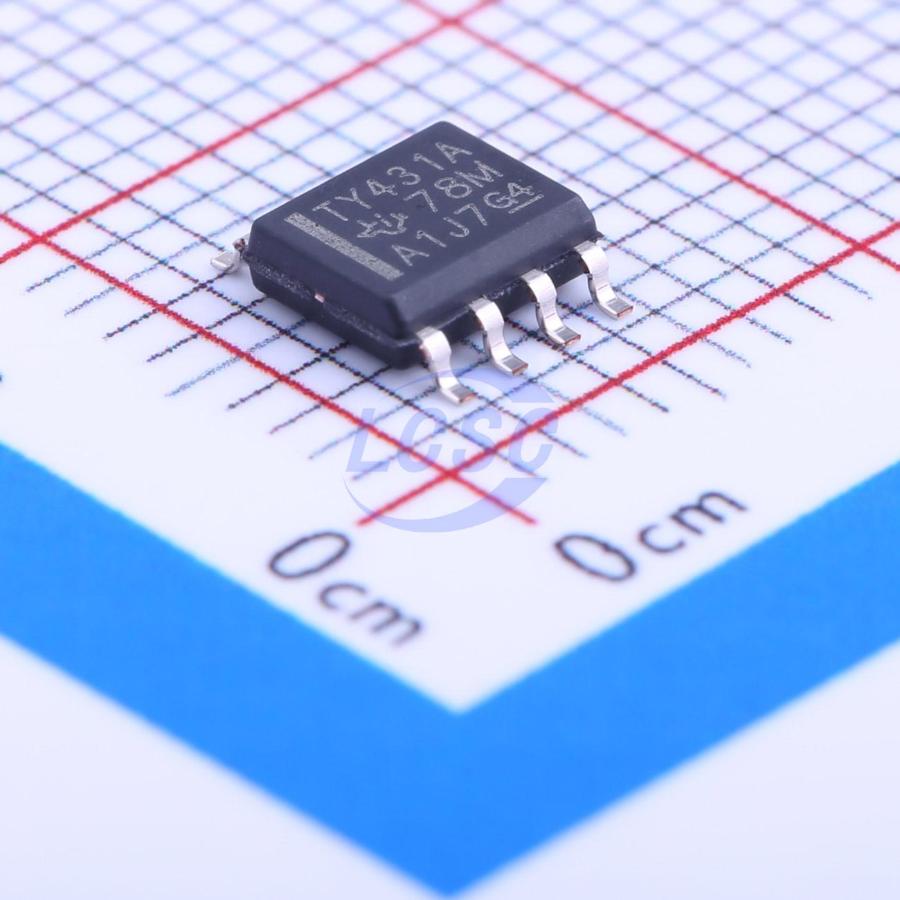

TLV431AIDR
1.24V~6V ±1% 1.24V~6V 15mA Adjustable SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
Low-Voltage Adjustable Precision Shunt Regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV431AIDR
- Store part #
- C7088
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,828 in stock
#C7088
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.95 | ₹105.95 |
| 10+ | ₹84.84 | ₹848.40 |
| 30+ | ₹74.18 | ₹2,225.40 |
| 100+ | ₹63.74 | ₹6,374.00 |
| 500+ | ₹57.43 | ₹28,715.00 |
| 1,000+ | ₹54.16 | ₹54,160.00 |
1 × ₹105.95
₹105.95
excl. GST
₹125.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV431AIDR
₹105.95 for 1 + GST
Specifications
- Quiescent Current
- 80uA
- Output Voltage
- 1.24V~6V
- Tolerance
- ±1%
- Voltage - Supply
- 1.24V~6V
- Minimum Cathode Current for Regulation
- 80uA
- Reference Type
- Parallel
- Output Current
- 15mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TLV431 device is a low-voltage 3-terminal adjustable voltage reference with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between VREF (1.24 V) and 6 V with two external resistors. These devices operate from a lower voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references. When used with an optocoupler, the TLV431 device is an ideal voltage reference in isolated feedback circuits for 3-V to 3.3-V switching-mode power supplies. These devices have a typical output impedance of 0.25Ω. Active output circuitry provides a very sharp turn-on characteristic, making them excellent replacements for low-voltage Zener diodes in many applications, including on-board regulation and adjustable power supplies.
Key features
- Low-Voltage Operation, VREF = 1.24 V
- Adjustable Output Voltage, V0 = VREF to 6 V
- 0.5% for TLV431B, 1% for TLV431A, 1.5% for TLV431
- Typical Temperature Drift: – 4 mV (0°C to 70°C), 6 mV (-40°C to 85°C), 11 mV (-40°C to 125°C)
