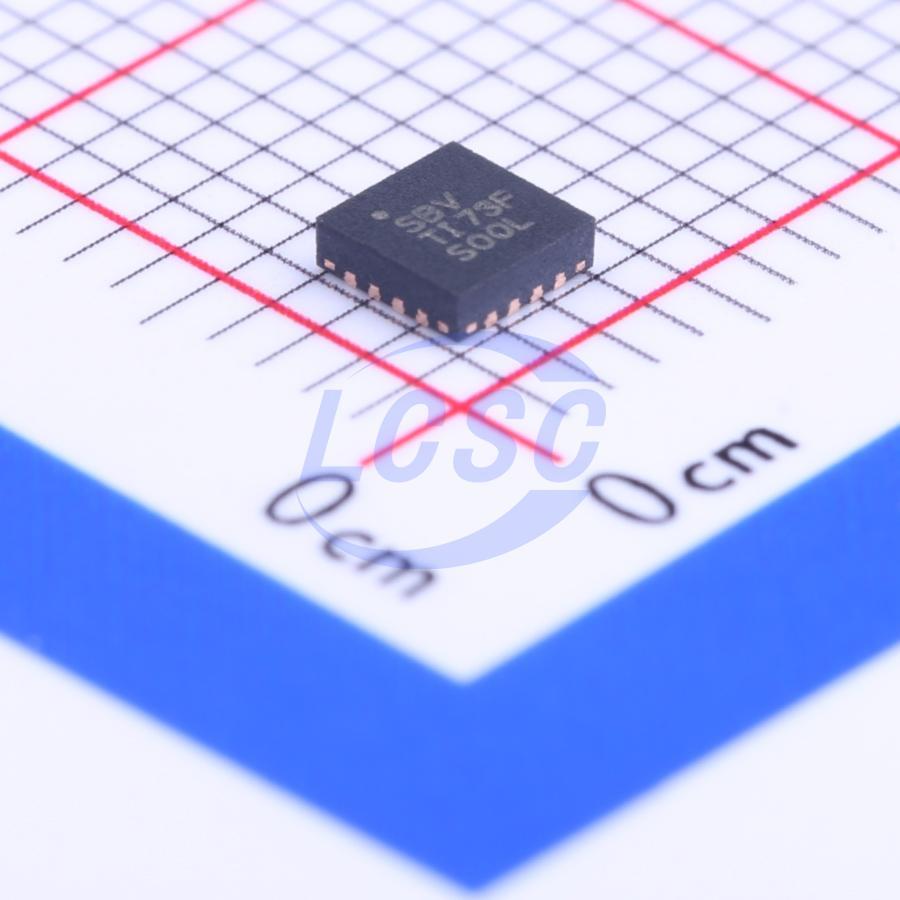

TLV62090RGTR

The TLV62090 device is a high-frequency synchronous buck converter optimized for small solution size and high efficiency, making it ideal for battery-powered applications. To maximize efficiency, the converter operates in pulse-width modulation (PWM) mode at a nominal switching frequency of 1.4MHz and automatically enters a power-save operating mode under light load current conditions. In distributed power and point-of-load regulation applications, the device allows tracking of voltage rails at other voltages and supports output capacitance ranging from 10μF to 150μF or higher. By using DCS-Control topology, the device achieves excellent DC load performance and precise output voltage regulation. The output voltage startup ramp is controlled by the soft-start pin, and the device can operate from an independent supply or in a tracking configuration. In addition, power sequencing can be implemented by configuring the enable (EN) pin and the power good (PG) pin. In power-save mode, the device has a typical quiescent current of 20μA. Automatic entry into power-save mode is seamlessly maintained with high efficiency across the full load current range. The device is available in a 3mm×3mm 16-pin very thin quad flat no-lead (VQFN) (RGT) package.

Applications

• Distributed power supplies
• Laptops, netbooks
• Hard disk drives (HDD)
• Solid state drives (SSD)
• Processor power supplies
• Battery-powered applications

Key features

• 2.5V to 5.5V input voltage range
• Up to 98% efficiency with DCS-Control™ power save mode
• 20μA quiescent operating current
• 100% duty cycle for minimum dropout
• 1.4MHz typical switching frequency
• Adjustable output voltage from 0.8V to VIN
• Output discharge function
• Adjustable soft-start
• Hiccup short-circuit protection
• Output voltage tracking
• Pin-to-pin compatible with TPS62090, TLV62095, and TPS62095
