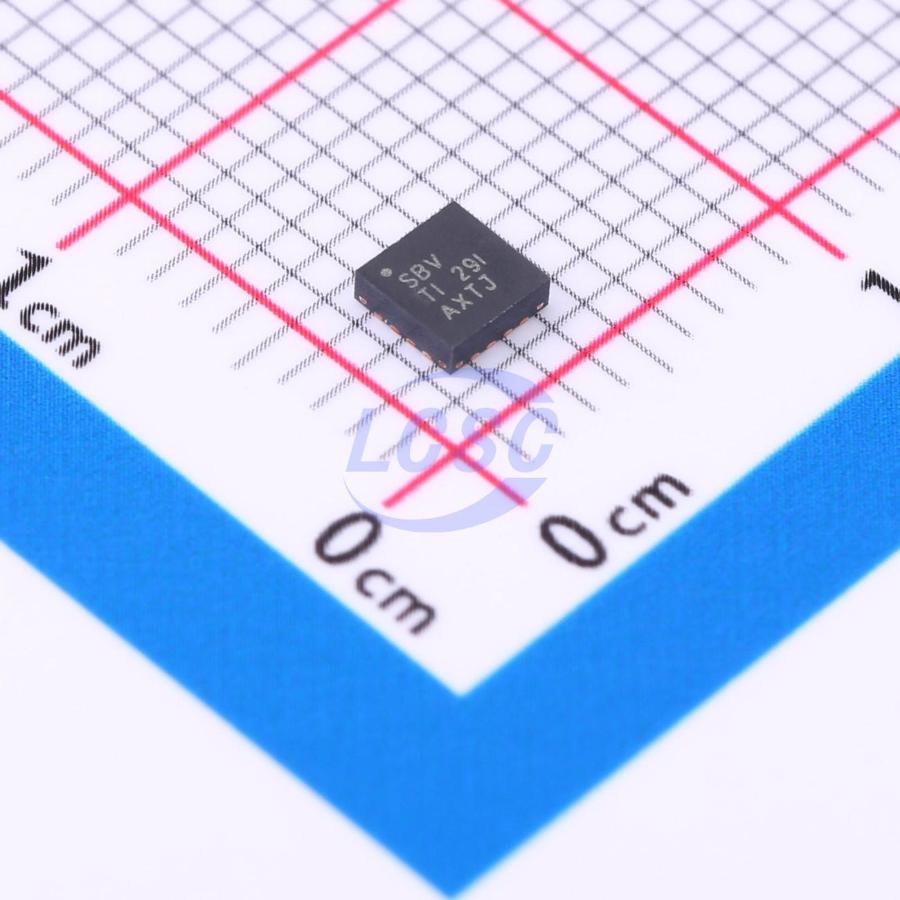

TLV62090RGTT

The TLV62090 is a high-frequency synchronous buck converter optimized for small solution size and high efficiency, making it ideal for battery-powered applications. To maximize efficiency, the converter operates in pulse-width modulation (PWM) mode at a nominal switching frequency of 1.4MHz and automatically enters a power-save mode under light load conditions. In distributed power and point-of-load regulation applications, the device allows voltage tracking of other voltage rails and supports output capacitance ranging from 10μF to 150μF or higher. By utilizing the DCS-Control topology, the device achieves excellent load transient performance and precise output voltage regulation. The output voltage start-up ramp is controlled by the soft-start pin, supporting both independent supply operation and tracking configuration. In addition, power sequencing can be implemented by configuring the enable (EN) pin and power-good (PG) pin. In power-save mode, the device has a typical quiescent current of 20μA. Across the full load current range, the device automatically enters power-save mode and maintains high efficiency seamlessly.

Applications

• Distributed power supply
• Laptops, netbooks
• Hard disk drives (HDD)
• Solid state drives (SSD)
• Processor power supply
• Battery-powered applications

Key features

• 2.5V to 5.5V input voltage range
• DCS-Control™ up to 98% efficiency in power save mode
• 20μA quiescent operating current
• 100% duty cycle for minimum dropout
• 1.4MHz typical switching frequency
• Adjustable output voltage from 0.8V to VIN
• Output discharge function
• Adjustable soft-start
• Hiccup short-circuit protection
• Output voltage tracking
• Pin-to-pin compatible with TPS62090, TLV62095, and TPS62095
