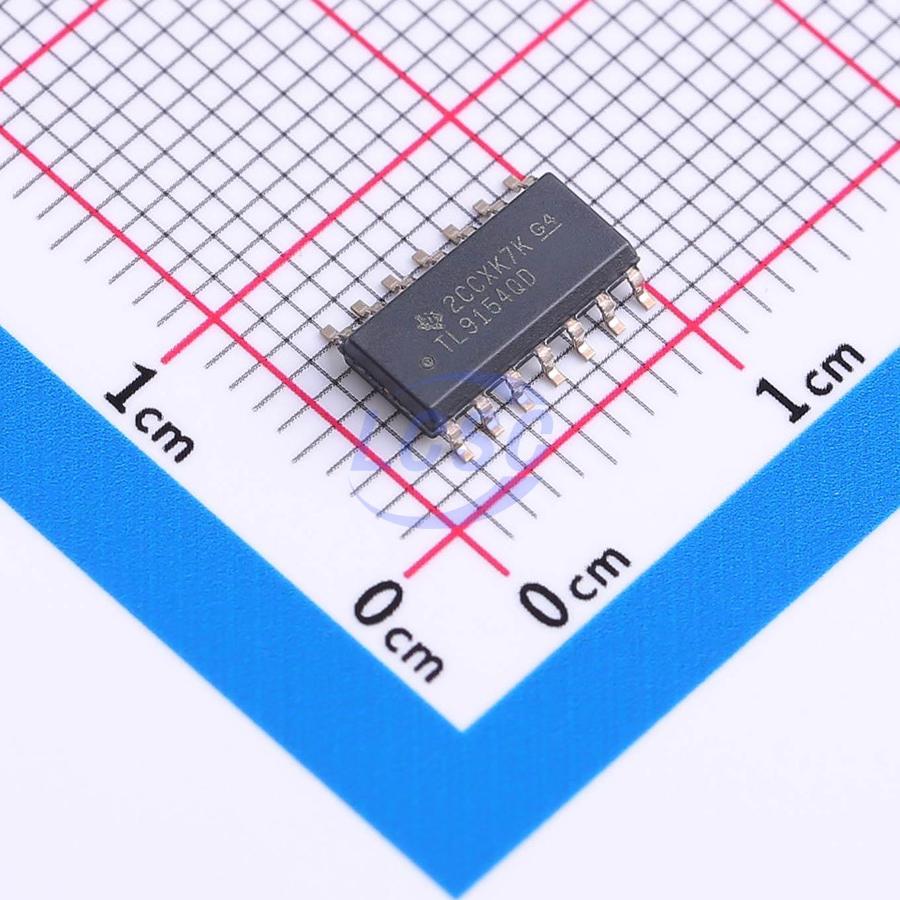

TLV9154QDRQ1

The TLV915x-Q1 family is a 16V general-purpose automotive operational amplifier series. These devices offer excellent DC accuracy and AC performance, including rail-to-rail output, low offset voltage (±125μV, typical), low temperature drift (±0.3μV/°C, typical), and 4.5MHz bandwidth. Convenient features such as wide differential input voltage range, high output current (±75mA), high slew rate (21V/μs), and low noise (10.8nV/√Hz) make the TLV915x-Q1 a powerful low-noise op amp for automotive applications. The TLV915x-Q1 series op amps are available in standard packages and are rated for an operating temperature range of -40°C to 125°C.

Applications

• Optimized for AEC-Q100 Grade 1 applications
• Infotainment systems and instrument clusters
• Passive safety
• Body electronics and lighting
• Hybrid/EV inverters and motor control
• On-board chargers (OBC) and wireless chargers
• Powertrain current sensing
• Advanced driver assistance systems (ADAS)
• High-side and low-side current sensing

Key features

• AEC-Q100 qualified for automotive applications
• Temperature Grade 1: -40°C to +125°C, TA
• Device HBM ESD Classification Level 3A
• Device CDM ESD Classification Level C6
• Low offset voltage: ±125μV
• Low offset voltage drift: ±0.3μV/°C
• Low noise: 10.8nV/√Hz at 1 kHz
• High common-mode rejection: 120dB
• Low bias current: ±10pA
• Rail-to-rail input and output
• Wide bandwidth: 4.5MHz GBW
• High slew rate: 21V/μs
• Low quiescent current: 560μA per amplifier
• Wide supply voltage: ±1.35V to ±8V, 2.7V to 16V
• Robust EMIRR performance: EMI/RFI filter on input pins
