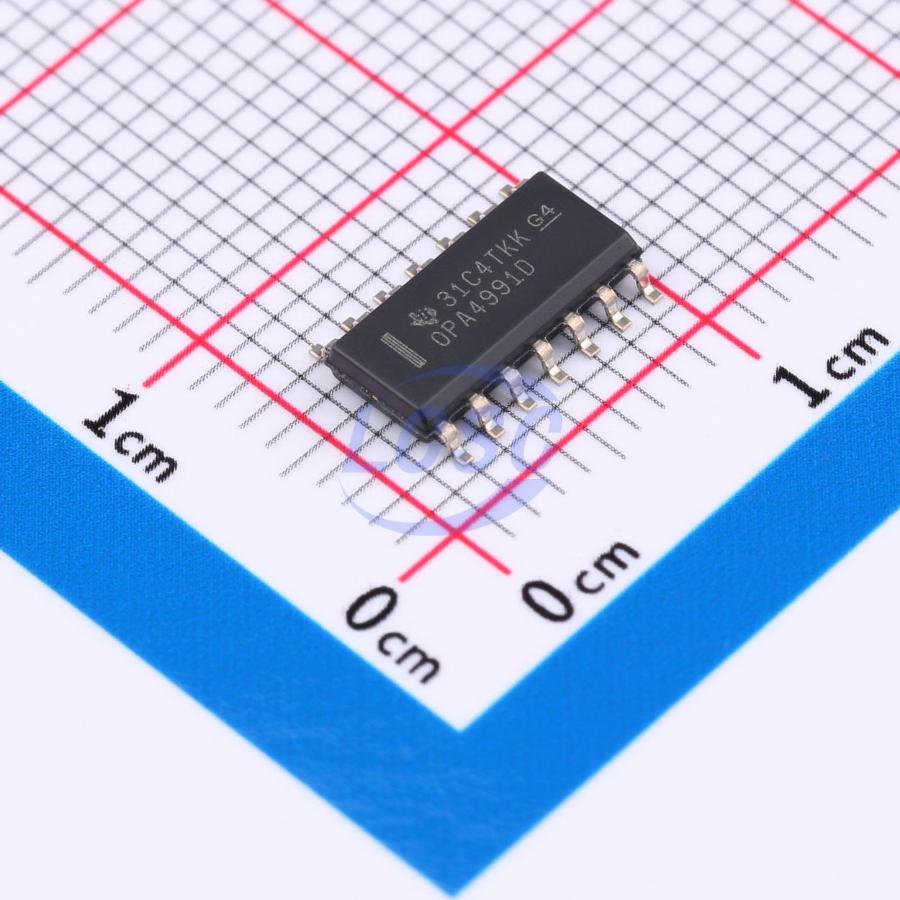

OPA4991IDR

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOIC-14

SOIC-14ROHS3 CompliantActive

40-V rail-to-rail input/output, low offset voltage, low noise operational amplifier

Manufacturer: TI
Manufacturer part #: OPA4991IDR
Store part #: C2860973
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

990 in stock

#C2860973

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
1+	₹369.46	₹369.46
10+	₹328.05	₹3,280.50
30+	₹306.80	₹9,204.00
100+	₹278.40	₹27,840.00
500+	₹268.21	₹1,34,105.00
1,000+	₹263.87	₹2,63,870.00

Quantity (min 1)

1 × ₹369.46

₹369.46

excl. GST

₹435.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4991IDR

₹369.46 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 75mA
Number of Channels: 4
Vos - Input Offset Voltage: 125uV
Slew Rate: 21V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 560uA
Gain Bandwidth Product: 4.5MHz
Features: Enable/shutdown function;EMI filtering/RF suppression
Input Voltage Noise Density: 10.8nV/√Hz@1kHz
Dual Supply: -20V~-1.35V;1.35V~20V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g

Overview

The OPAx991 series is a high-voltage (40V) general-purpose operational amplifier series. These devices feature excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (±125μV typ.), low temperature drift (±0.3μV/°C typ.), low noise (10.5nV/√Hz and 1.8μVPP), and a 4.5MHz bandwidth.

Applications

Low-power audio preamplifier
Multiplexed data acquisition system
Test and measurement equipment
ADC driver amplifier
SAR ADC reference buffer
Programmable logic controller
High-side and low-side current sensing
High-voltage multiplexed data acquisition system

Key features

Low offset voltage: ±125μV
Low offset voltage drift: ±0.3μV/°C
Low noise: 10.8nV/√Hz at 1 kHz
High common-mode rejection: 130dB
Low bias current: ±10pA
Rail-to-rail input and output
Wide bandwidth: 4.5MHz GBW
High slew rate: 21V/µs
High capacitive load drive: 1nF
Multiplexer/comparator input support
Amplifier operates with differential input up to the supply rail
Amplifier usable open-loop or as a comparator
Low quiescent current: 560μA per amplifier
Wide supply voltage: ±1.35V to ±20V, 2.7V to 40V
Robust EMIRR performance: EMI/RFI filters on input and supply pins
Differential and common-mode input voltage range up to supply rails
