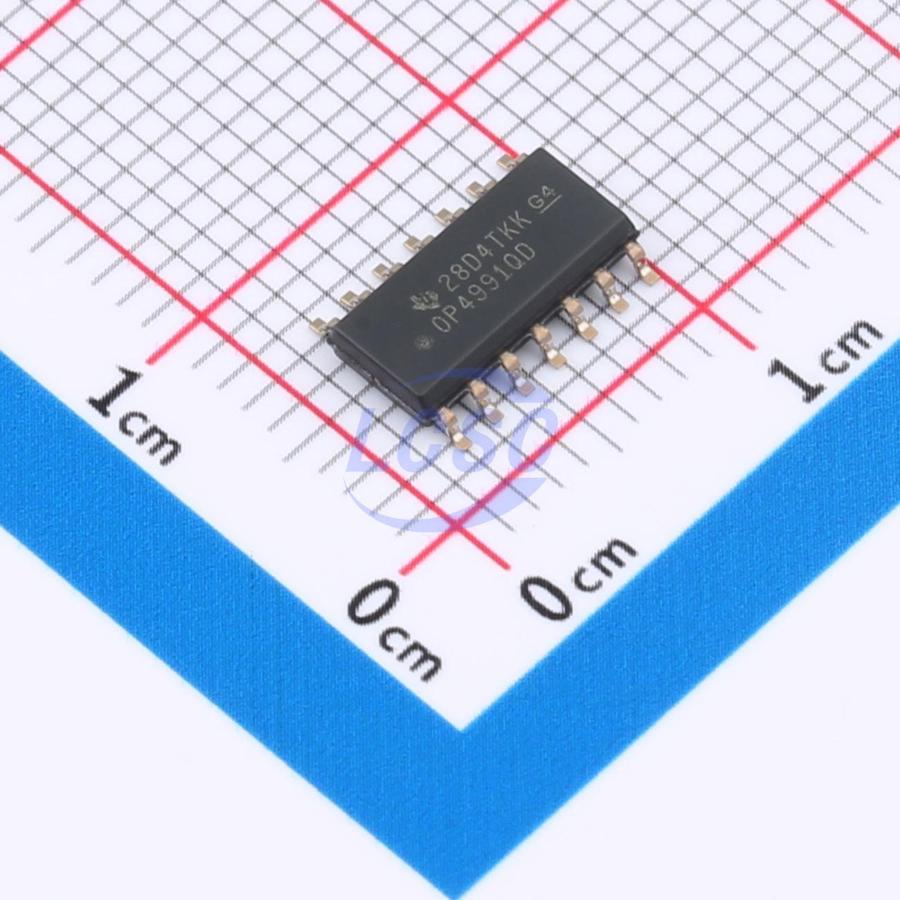

OPA4991QDRQ1

The OPAx991-Q1 series is a high-voltage (40V) general-purpose op amp family for automotive applications. These devices offer excellent DC accuracy and AC performance, including rail-to-rail input/output, low offset voltage (±125μV typical), low temperature drift (±0.3μV/°C typical), low noise (10.8nV/√Hz and 1.8μVPP), and 4.5MHz bandwidth. The OPAx991-Q1 features unique capabilities such as differential and common-mode input voltage range up to the supply rails, high output current (±75mA), high slew rate (21V/μs), and high capacitive load drive (1nF), making it a robust, high-performance op amp for high-voltage automotive applications. The OPAx991-Q1 series op amps are available in standard packages (SOT-23, SOIC, VSSOP, and TSSOP) and are rated for an operating temperature range of -40°C to 125°C.

Applications

• Optimized for AEC-Q100 Grade 1 applications
• Infotainment systems and instrument clusters
• Passive safety
• Body electronics and lighting
• Hybrid/EV inverters and motor control
• On-board chargers (OBC) and wireless chargers
• Powertrain current sensors
• Advanced driver assistance systems (ADAS)
• High-side current sensing

Key features

• AEC-Q100 qualified for automotive applications
• Temperature Grade 1: -40°C to +125°C, TA
• Device HBM ESD Classification Level 2A
• Device CDM ESD Classification Level C6
• Low offset voltage: ±125μV
• Low offset voltage drift: ±0.3μV/°C
• Low noise: 10.8nV/√Hz at 1 kHz
• High common-mode rejection: 130dB
• Low bias current: ±10pA
• Rail-to-rail input and output
• Wide bandwidth: 4.5MHz GBW
• High slew rate: 21V/µs
• High capacitive load drive: 1nF
• Multiplexer/comparator input support
• Amplifier operates with differential inputs up to the supply rail
• Amplifier usable open-loop or as a comparator
• Low quiescent current: 560μA per amplifier
• Wide supply voltage: ±1.35V to ±20V, 2.7V to 40V
• Robust EMIRR performance: EMI/RFI filters on input and supply pins
