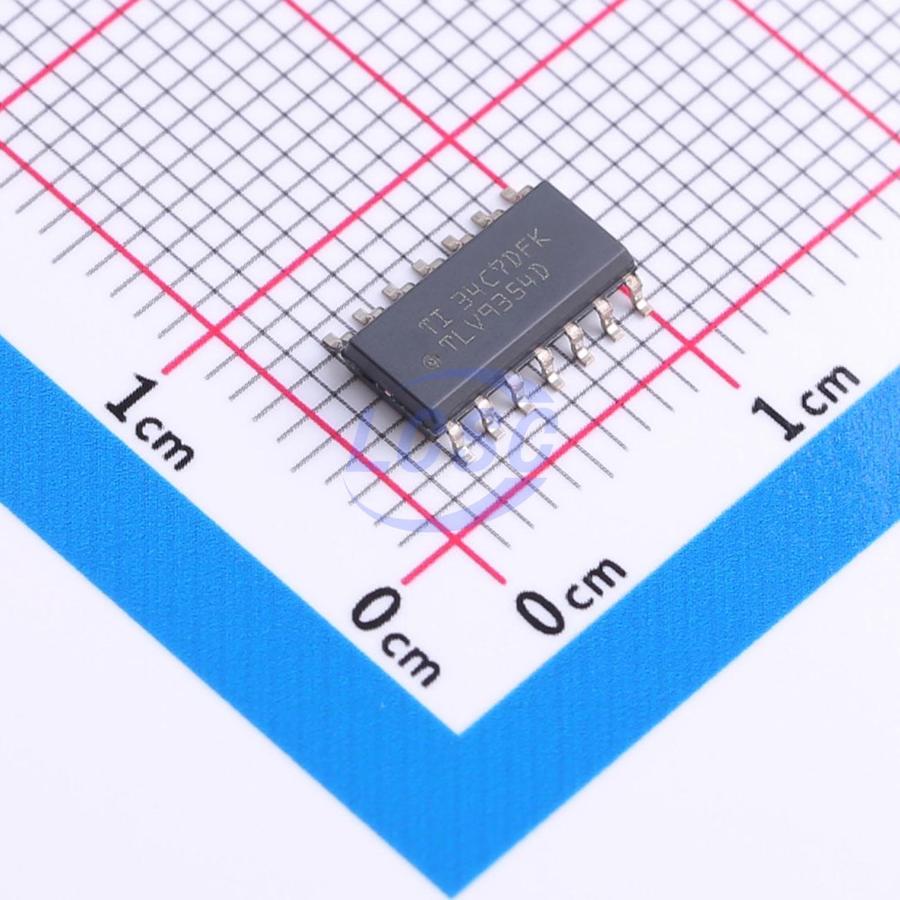

TLV9354IDR

The TLV935x series is a 40V cost-optimized operational amplifier series. These devices feature excellent DC and AC specifications, including rail-to-rail output, low offset voltage (±350μV typ.), low temperature drift (±1.5μV/°C typ.), and 3.5MHz bandwidth. The TLV935x has unique characteristics, such as a differential input voltage range across the supply rails, high output current (±60mA), and high slew rate (20V/μs). It is a stable and reliable operational amplifier suitable for high-voltage cost-sensitive applications. The TLV935x series operational amplifiers are available in standard packages and are rated for an operating temperature range of -40°C to 125°C.

Applications

• AC and motor drive servo control modules
• AC and motor drive power stage modules
• Test and measurement equipment
• Programmable logic controllers

Key features

• Low offset voltage: ±350μV
• Low offset voltage drift: ±1.5μV/°C
• Low noise: 15nV/√Hz at 1 kHz
• High common-mode rejection: 110dB
• Low bias current: ±10pA
• Rail-to-rail output
• Input compatible with multiplexers/comparators
• Amplifier operates with differential input up to the supply rails
• Amplifier usable open-loop or as a comparator
• High bandwidth: 3.5MHz GBW
• High slew rate: 20V/μs
• Low quiescent current: 600μA per amplifier
• Wide supply voltage: ±2.25V to ±20V, 4.5V to 40V
• Robust EMIRR performance: EMI/RFI filter on input pins
• Differential and common-mode input voltage range up to supply rails
