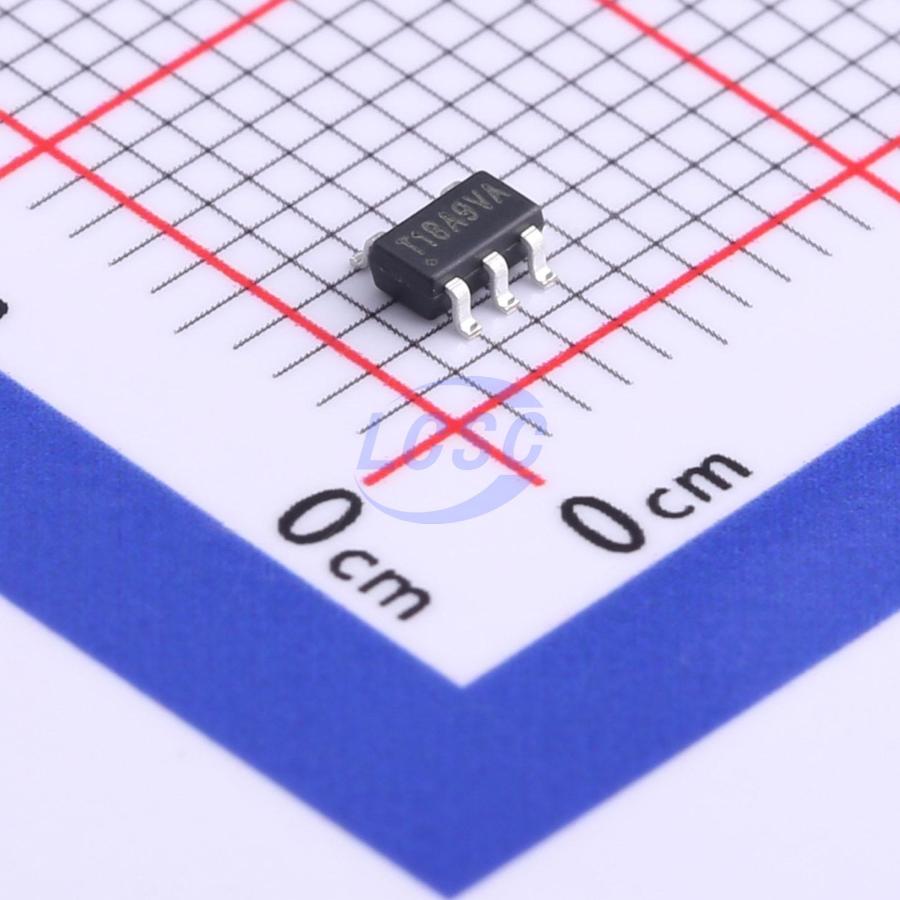

1 2.4A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
Precision Power Distribution Switch
- Manufacturer
- TMI
- Manufacturer part #
- TMI6263BH
- Store part #
- C782122
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,961 in stock
#C782122
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹10.35 | ₹31.05 |
| 30+ | ₹8.26 | ₹247.80 |
| 90+ | ₹7.21 | ₹648.90 |
| 300+ | ₹6.43 | ₹1,929.00 |
| 1,500+ | ₹5.81 | ₹8,715.00 |
| 3,000+ | ₹5.49 | ₹16,470.00 |
3 × ₹10.35
₹31.05
excl. GST
₹36.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI6263BH
₹31.05 for 3 + GST
Specifications
- Operating Temperature
- -40℃~+130℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2.4A
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 60mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.037 g
Overview
The TMI6263 is a cost-effective, single P-MOSFET load switch with ultra-low RDS(ON), optimized for selfpowered and bus-powered Universal Serial Bus (USB) applications. Input voltage from 2.5V to 5.5V, making it ideal for both 3V and 5V systems. A built-in P-channel MOSFET with true shutdown function to eliminate any reversed current flow across the switch. When output voltage is higher than input voltage, power switch is turned off. The TMI6263BH offers a programmable current limit threshold between 200mA to 2.4A via an external resistor.
Applications
- USB Bus/Self Powered Hubs
- Battery-Charger Circuits
- Personal Communication Devices
- Notebook Computers
Key features
- Integrated 60mΩ Power MOSFET
- 1μA Typical at Switch Off State
- Wide Input Voltage Range: 2.5V to 5.5V
- Fast Transient Response: 15μs
- 0.1ms Typical Rise Time
- Reverse Current Flow Blocking
- Automatic output discharge at shutdown
- Deglitched Open-Drain Over-Current Flag Output (TMI6263AH, TMI6263AL)
- Thermal Shutdown Protection
- Hot Plug-In Application (Soft-Start)
- Two Enable polarities and four current levels
- TMI6263AH: 2.0A/Enable High
- TMI6263AL: 2.0A/Enable Low
- TMI6263CH: 1.5A/Enable High
- TMI6263BH: ADJ /Enable High
- CB Test Certification by IEC62368-1:2014
- UL 2367 Certification - E528420
- SOT-23-5 package
