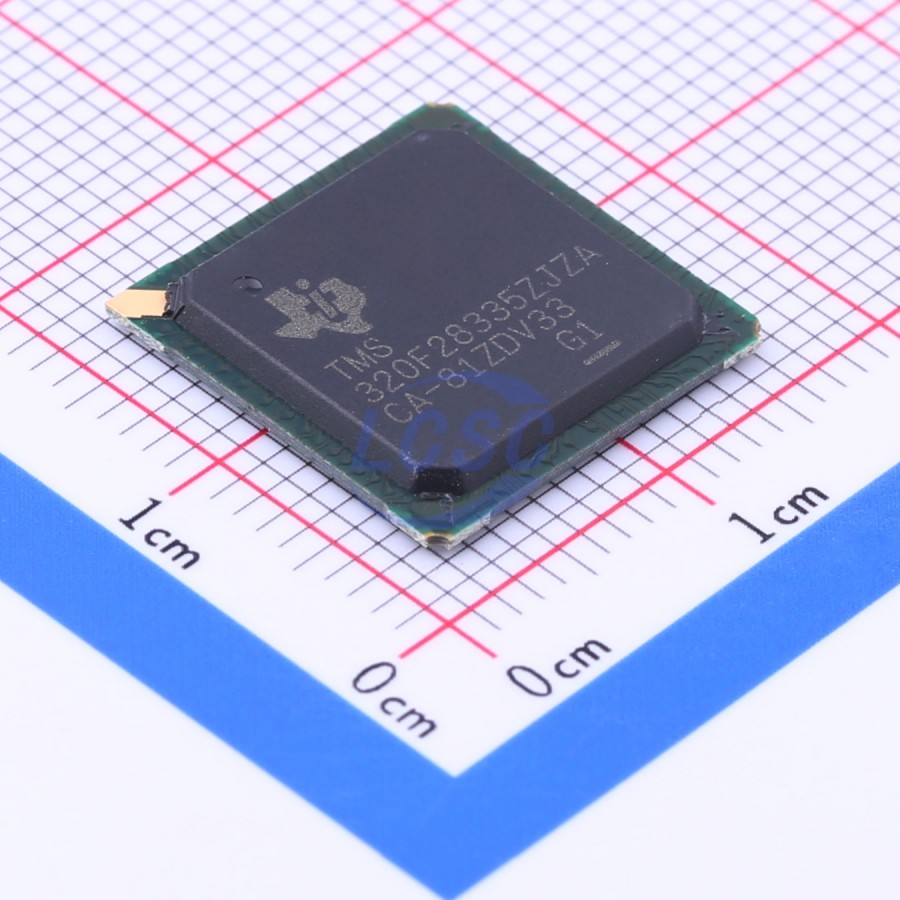

TMS320F28335ZJZA

The TMS320F28335, TMS320F28334, TMS320F28333, TMS320F28332, TMS320F28235, TMS320F28234, and TMS320F28232 devices, members of the TMS320C28x/ Delfino DSC/MCU generation, are highly integrated, high-performance solutions for demanding control applications.

Applications

• Industrial AC Inverter Drives
• Industrial Servo Amplifiers and Controllers
• Computer Numerical Control (CNC) Machining
• Uninterruptible and Server Power Supplies
• Telecom Equipment Power
• Solar Inverters

Key features

• High-Performance Static CMOS Technology – Up to 150 MHz (6.67-ns Cycle Time) – 1.9-V/1.8-V Core, 3.3-V I/O Design
• High-Performance 32-Bit CPU (TMS320C28x) – IEEE 754 Single-Precision Floating-Point Unit (FPU) (F2833x Only) – 16×16 and 32×32 MAC Operations – 16×16 Dual MAC – Harvard Bus Architecture – Fast Interrupt Response and Processing – Unified Memory Programming Model – Code-Efficient (in C/C++ and Assembly)
• Six-Channel DMA Controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
• 16-Bit or 32-Bit External Interface (XINTF) – More Than 2M×16 Address Reach
• On-Chip Memory – F28335, F28333, F28235: 256K×16 Flash, 34K×16 SARAM – F28334, F28234: 128K×16 Flash, 34K×16 SARAM – F28332, F28232: 64K×16 Flash, 26K×16 SARAM – 1K×16 OTP ROM
• Boot ROM (8K×16) – With Software Boot Modes (Through SCI, SPI, CAN, I2C, McBSP, XINTF, and Parallel I/O) – Standard Math Tables
• Clock and System Control – On-Chip Oscillator – Watchdog Timer Module
• GPIO0 to GPIO63 Pins Can Be Connected to One of the Eight External Core Interrupts
• Peripheral Interrupt Expansion (PIE) Block That Supports All 58 Peripheral Interrupts
• 128-Bit Security Key/Lock – Protects Flash/OTP/RAM Blocks – Prevents Firmware Reverse Engineering
• Enhanced Control Peripherals – Up to 18 PWM Outputs – Up to 6 HRPWM Outputs With 150 ps MEP Resolution – Up to 6 Event Capture Inputs – Up to 2 Quadrature Encoder Interfaces – Up to 8 32-Bit Timers (6 for eCAPs and 2 for eQEPs) – Up to 9 16-Bit Timers (6 for ePWMs and 3 XINTCTRs)
• Three 32-Bit CPU Timers
• Serial Port Peripherals – Up to 2 CAN Modules – Up to 3 SCI (UART) Modules – Up to 2 McBSP Modules (Configurable as SPI) – One SPI Module – One Inter-Integrated Circuit (I2C) Bus
• 12-Bit ADC, 16 Channels – 80-ns Conversion Rate – 2×8 Channel Input Multiplexer – Two Sample-and-Hold – Single/Simultaneous Conversions – Internal or External Reference
• Up to 88 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• JTAG Boundary Scan Support – IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture
• Advanced Emulation Features – Analysis and Breakpoint Functions – Real-Time Debug Using Hardware
• Development Support Includes – ANSI C/C++ Compiler/Assembler/Linker – Code Composer Studio IDE – DSP/BIOS and SYS/BIOS – Digital Motor Control and Digital Power Software Libraries
• Low-Power Modes and Power Savings – IDLE, STANDBY, HALT Modes Supported – Disable Individual Peripheral Clocks
• Endianness: Little Endian
• Package Options: – Lead-free, Green Packaging – Plastic Ball Grid Array (BGA) (ZJZ) – MicroStar BGA (ZHH) – Low-Profile Quad Flatpack (LQFP) (PGF) – Thermally Enhanced Low-Profile Quad Flatpack (HLQFP) (PTP)
• Temperature Options: – A: -40℃ to 85℃ (PGF, ZHH, ZJZ) – S: -40℃ to 125℃ (PTP, ZJZ) – Q: -40℃ to 125℃ (PTP, ZJZ) (AEC Q100 Qualification for Automotive Applications)
