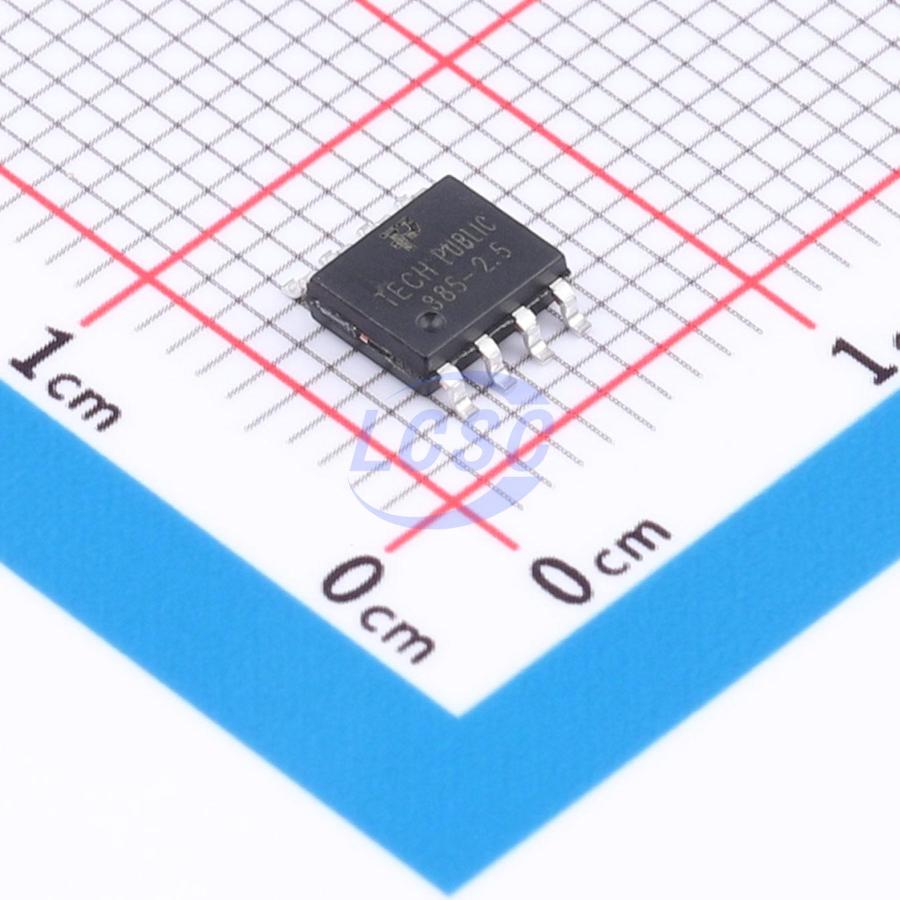

TP385S8-2.5
2.5V ±0.3% 20mA Fixed SOP-8 Voltage Reference
SOP-8RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP385S8-2.5
- Store part #
- C51886172
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C51886172
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.34 | ₹66.70 |
| 50+ | ₹11.64 | ₹582.00 |
| 150+ | ₹10.80 | ₹1,620.00 |
| 500+ | ₹10.16 | ₹5,080.00 |
| 3,000+ | ₹9.66 | ₹28,980.00 |
| 6,000+ | ₹9.39 | ₹56,340.00 |
5 × ₹13.34
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP385S8-2.5
₹66.70 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Tolerance
- ±0.3%
- Minimum Cathode Current for Regulation
- 65uA
- Reference Type
- Parallel
- Output Current
- 20mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 60uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
This is a versatile, easy-to-use shunt voltage reference suitable for a wide range of applications. This pin-fixed output device requires no external capacitors and remains stable under all capacitive loads. In addition, the reference features low dynamic impedance, low noise, and low temperature coefficient, ensuring stable output voltage over a wide range of operating currents and temperatures. The device is housed in an SOP-8 package for space savings. With a minimum operating current of 25 μA (typical), it is ideal for portable applications. Rated operating temperature range: -40°C to +125°C.
Applications
- Battery-powered equipment
- Data acquisition systems
- Precision audio components
- Instrumentation
- Process control
Key features
- Low output noise
- No output capacitor required
- Capable of driving capacitive loads
- Low temperature drift: 4mV (typical)
- Low temperature coefficient: 100 ppm/°C (max)
- Fixed reverse breakdown voltage: 2.5V
- Output voltage tolerance: ±0.3%
- Package: SOP-8
