TP40540B

This product is a complete single-cell lithium-ion battery CC/CV linear charge management IC. It features an internal PMOS architecture with integrated reverse-charge prevention circuitry, eliminating the need for external sense resistors and isolation diodes, while also providing battery reverse-polarity protection. The IC incorporates a thermal feedback function that adaptively adjusts the charge current to limit junction temperature under high-power or high-temperature conditions. The charge voltage is fixed at 4.2V, and the charge current is programmable via an external resistor. When the charge voltage reaches the final float voltage and the charge current drops to 1/10 of the programmed value, the charge cycle terminates automatically. When the input power source is removed, the IC automatically enters a low-current state, reducing battery leakage current to below 1μA.

Applications

• Mobile phones
• PDAs
• MP3 players and similar applications

Key features

• Programmable charge current up to 600mA
• No external MOSFET, sense resistor, or blocking diode required
• Complete linear charge management solution for single-cell Li-Ion batteries
• Constant-current/constant-voltage operation with thermal regulation
• Single-cell Li-Ion battery management from USB port
• Preset float voltage accuracy: 4.2V ±1%
• Charge current output monitoring
• Charge status indicator flag
• C/10 charge current termination with automatic recharge
• Soft-start to limit inrush current
• 2.9V trickle charge support

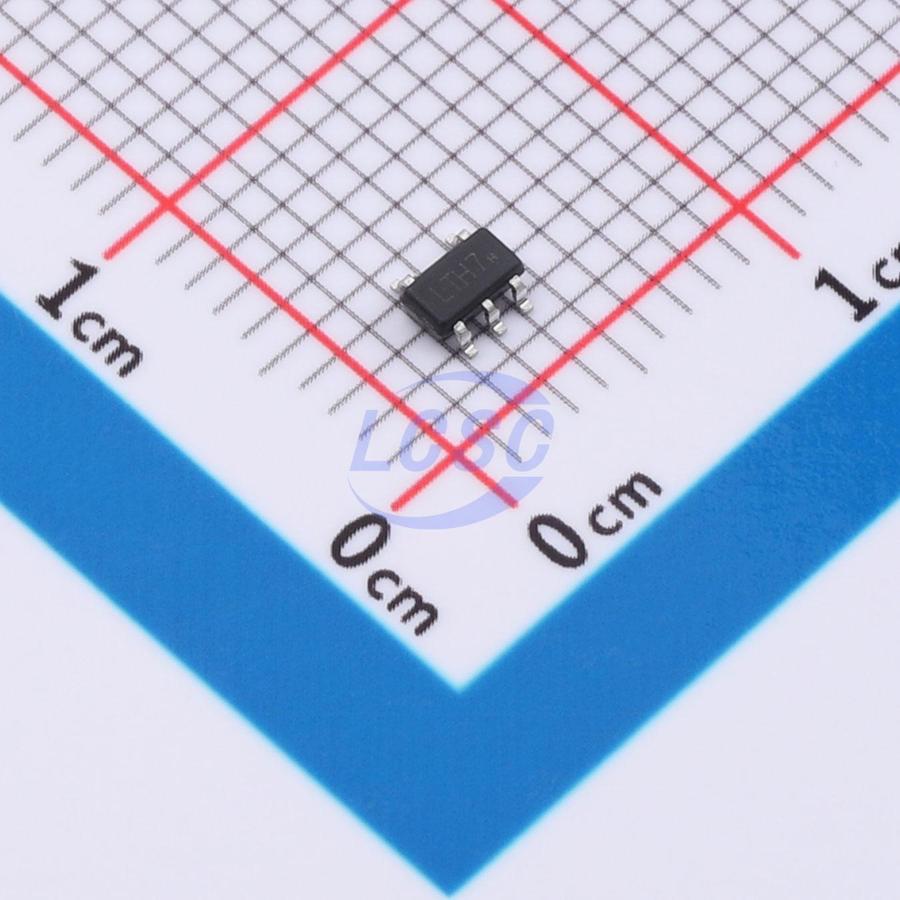

• SOT23-5L lead-free package
