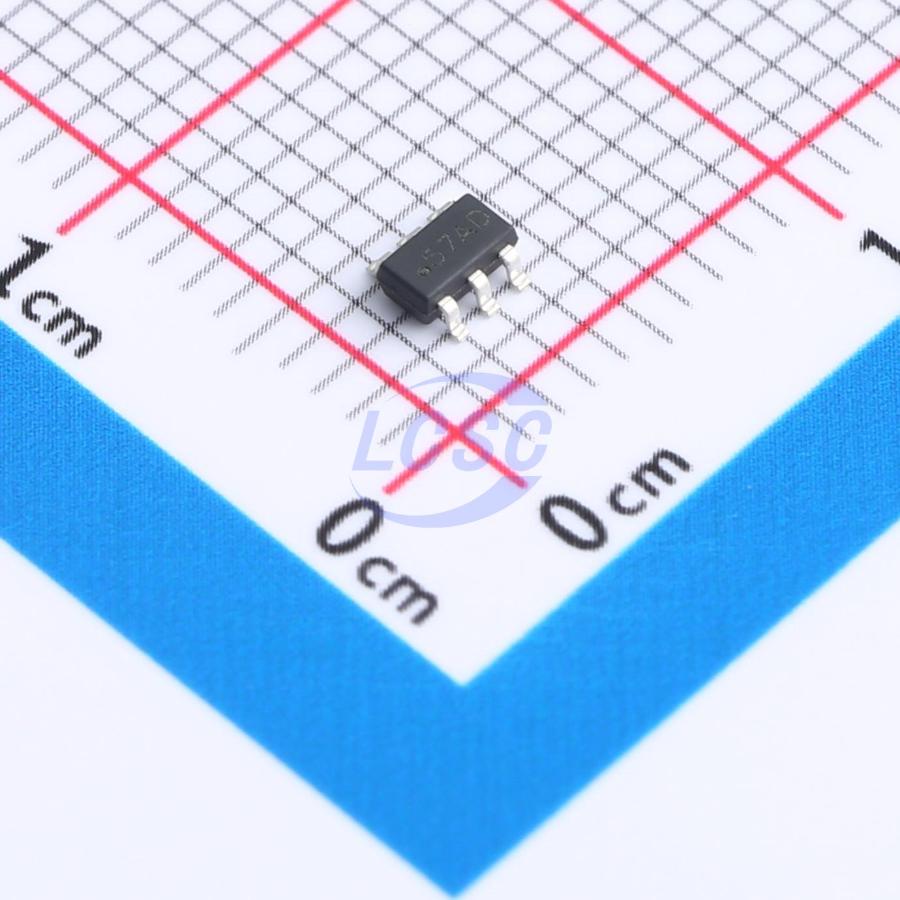

TP4057
Lithium Battery 600mA SOT-23-6L Battery Management
600mA Standalone linear Li-lon charger
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- TP4057
- Store part #
- C20199358
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C20199358
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.27 | ₹85.40 |
| 200+ | ₹3.35 | ₹670.00 |
| 600+ | ₹2.83 | ₹1,698.00 |
| 3,000+ | ₹2.43 | ₹7,290.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.27
₹85.40
excl. GST
₹100.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP4057
₹85.40 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 30uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- -300mV~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
The TP4057 is a constant current/constant voltage charger for single cell Li-Ion batteries. No external sense resistor or blocking diode is required and its SOT package make it ideally suited for portable applications. The TP4057 is designed to work within USB power specifications. An internal block regulates the current when the junction temperature increases, in order to protect the device when it operates in high power or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current limitation can be programmed using a single resistor connectd between PROG pin and GND. The charge cycle is automatically terminated when the current flowing to the battery is 1/10 of the programmed value. If the external adaptor is removed, the TP4057 turns off and a 2μA current can flow from the battery to the device. The device can be put into Shutdown Mode, reducing the supply current to 30μA. The device also has a charge current monitor, undervoltage lockout, automatic recharge. The device is packaged in SOT-23-6L.
Applications
- Cellular telephones
- PDAs
- Bluetooth applications
- Battery-powered devices
Key features
- Programmable charge current up to 600mA
- No external MOSFET, sense resistors or blocking diode required
- Constant current / constant voltage operation with thermal regulation to maximize charge rate without risk of overheating
- Charges single cell li-ion batteries directly from USB port
- Preset 4.2V charge voltage with 1% accuracy
- Automatic recharge
- Soft-Start Limits Inrush Current
- 30μA Supply Current in Shutdown
- 2.9V Trickle Charge Threshold
