Guangdong Hottech
TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
TECH PUBLICDatasheet (PDF)

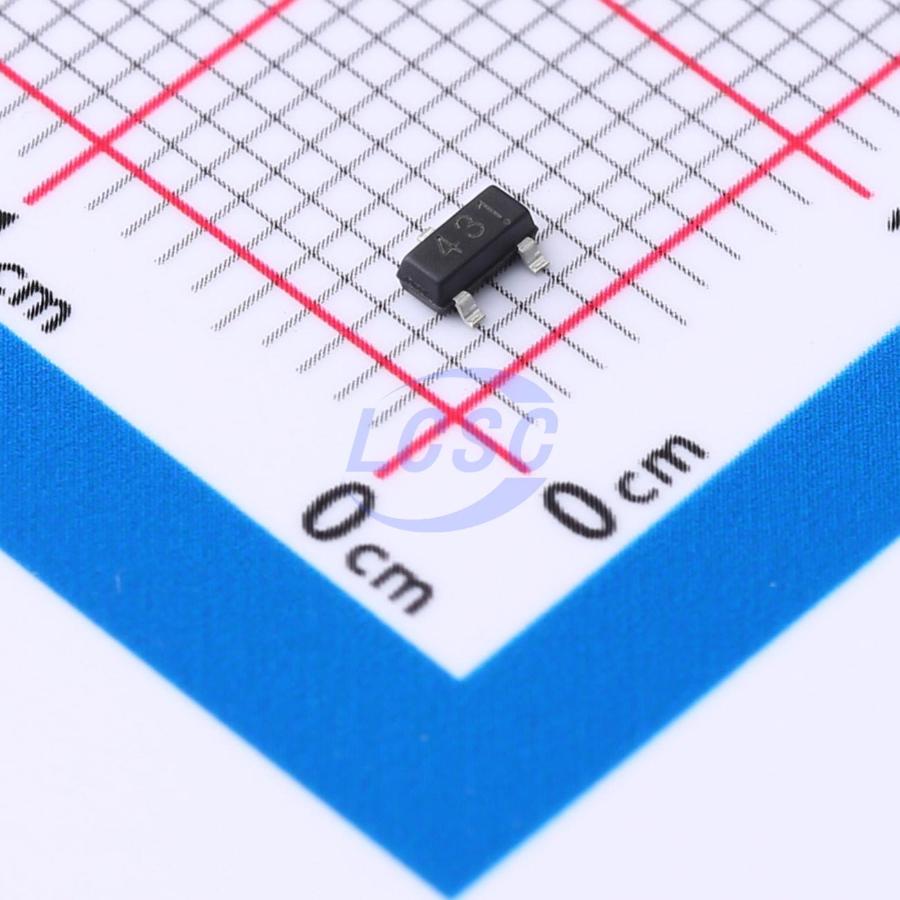

TP431CS3
Voltage Reference IC Adjustable 2.47V~36V ±1% 150mA SOT-23-3
SOT-23-3RoHSActive
Encapsulate Adjustable Reference Source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP431CS3
- Store part #
- C5310940
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C5310940
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.50 | ₹75.00 |
| 100+ | ₹5.99 | ₹599.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹4.00 | ₹24,000.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹7.50
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP431CS3
₹75.00 for 10 + GST
Specifications
- Output Voltage
- 2.47V~36V
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 450uA
- Reference Type
- Parallel
- Output Current
- 150mA
- Operating Temperature
- -40℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Output voltage adjustable up to 36V
- Low dynamic output impedance, typical 0.2Ω
- Sink current capability: 1 to 100mA
- Low output noise voltage
- Fast turn-on response
- Effective temperature compensation over full operating temperature range
- Typical equivalent temperature coefficient over full temperature range: 50ppm/°C
