JingYangDatasheet (PDF)

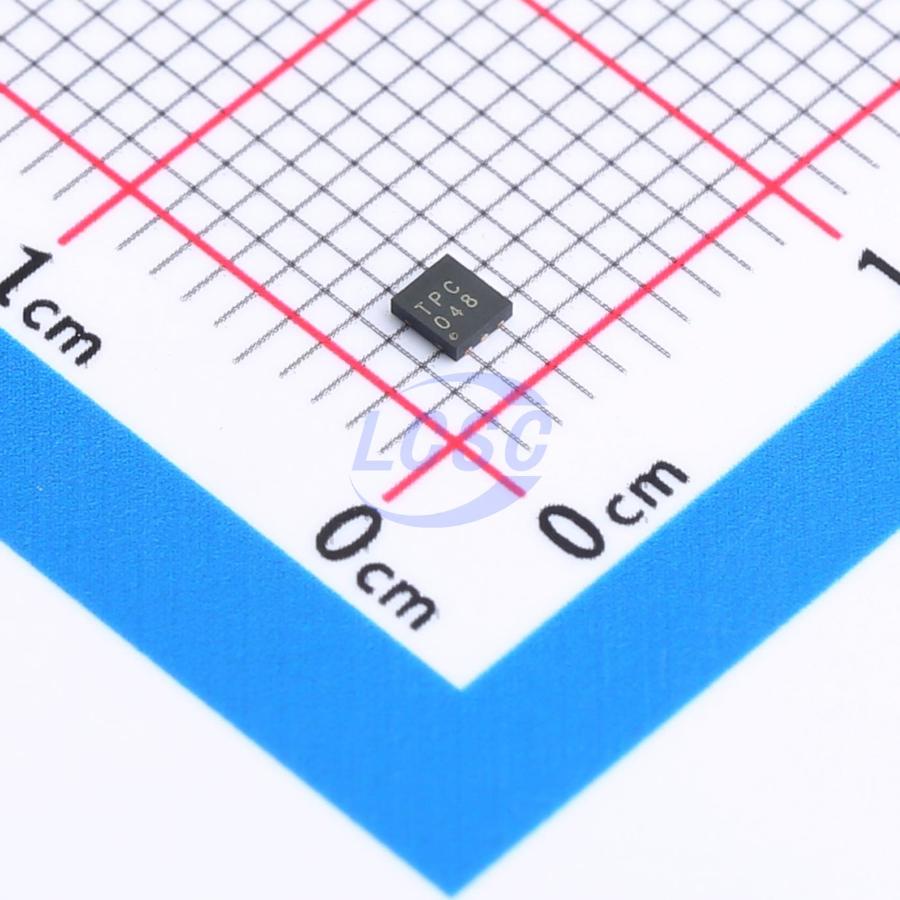

TP6001CX
1 600mA Active High High Side Switch DFN2018-6 Power Distribution Switches, Load Drivers RoHS
DFN2018-6ROHS CompliantActive
High-Side Power Switches
- Manufacturer
- JingYang
- Manufacturer part #
- TP6001CX
- Store part #
- C5364044
- Package / case
- DFN2018-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,825 in stock
#C5364044
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.75 | ₹143.75 |
| 50+ | ₹25.11 | ₹1,255.50 |
| 150+ | ₹23.55 | ₹3,532.50 |
| 500+ | ₹21.60 | ₹10,800.00 |
| 3,000+ | ₹20.73 | ₹62,190.00 |
| 6,000+ | ₹20.22 | ₹1,21,320.00 |
5 × ₹28.75
₹143.75
excl. GST
₹169.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP6001CX
₹143.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 600mA
- Control Input Logic
- Active High
- Operating Voltage
- 2.4V~5.5V
- RDS(on)
- 100mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The TP600X is a low voltage, single P-MOSFET high-side power switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. The TP600X equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch's low RDS(ON), 80mΩ, meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller. Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. lower quiescent current as 20uA making this device ideal for portable battery-operated equipment. The TP600XA is available in SOT-23-5L package requiring minimum board space and smallest components.
Applications
- USB Bus/Self Powered Hubs
- USB Peripherals
- ACPI Power Distribution
- PC Card Hot Swap
- Notebook, Motherboard PCs
- Battery-Powered Equipment
- Hot-Plug Power Supplies
- Battery-Charger Circuits
Key features
- Wide Input Voltage Ranges : 2.4V to 5.5V
- Compliant to USB Specifications
- Typical Rps(ON) 80mΩ
- 1.9V Typical Under-Voltage Lockout (UVLO)
- Low Supply Current : 20uA Typical at Switch on State, 1uA Typical at Switch off State
- Current Limiting Protection
- Thermal Shutdown Protection
- Output Can Be Forced Higher Than Input (Off-State)
