TECH PUBLICDatasheet (PDF)

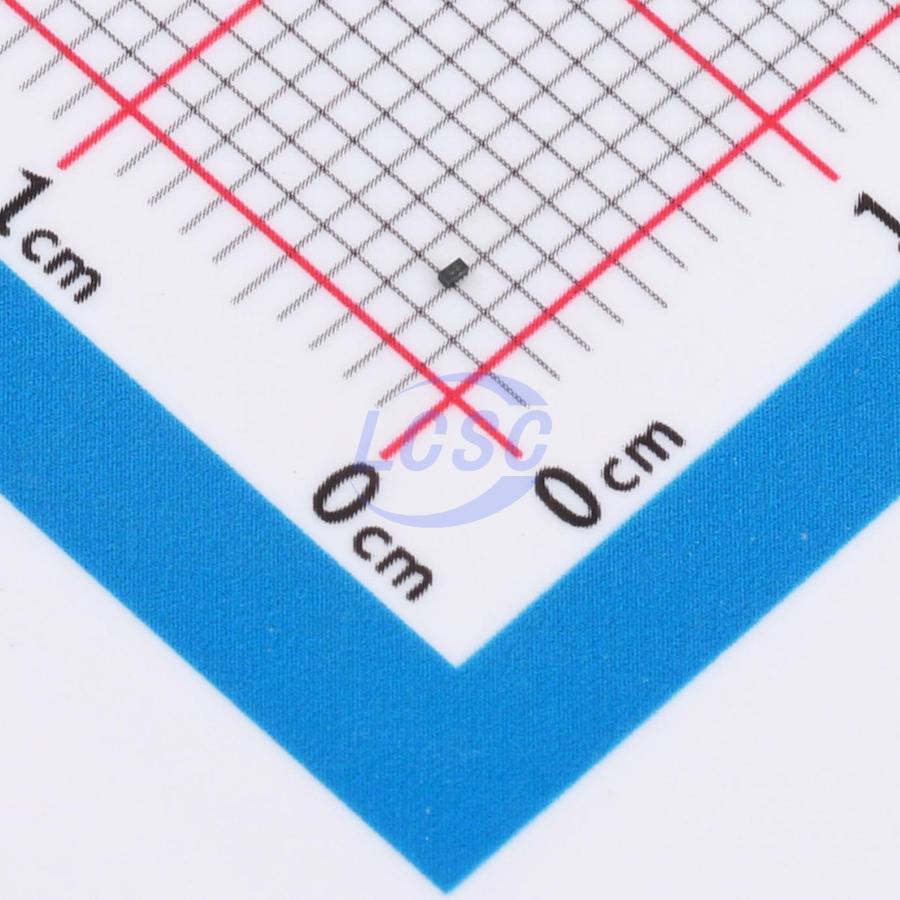

TPAQ0115-01ETG
4.3V 7A@8/20us 30W@8/20us 2V Bidirectional 1V DFN0603-2 TVS Diodes
DFN0603-2RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAQ0115-01ETG
- Store part #
- C52098230
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C52098230
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.96 | ₹79.60 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.41 | ₹1,623.00 |
| 1,000+ | ₹4.78 | ₹4,780.00 |
| 5,000+ | ₹4.27 | ₹21,350.00 |
| 10,000+ | ₹4.01 | ₹40,100.00 |
10 × ₹7.96
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPAQ0115-01ETG
₹79.60 for 10 + GST
Specifications
- Clamping Voltage
- 4.3V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 7A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 2V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.005 g
Overview
Applications
- Mobile phones and accessories
- Personal digital assistants
- Laptops and handheld devices
- USB Type-C interfaces
- USB 3.1/3.2 interfaces
Key features
- Low operating voltage: 1V
- Ultra-low capacitance: 0.35pF (typical)
- Ultra-low leakage: nanoamp level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±18kV
- IEC 61000-4-2 (ESD) immunity test Contact discharge: ±16kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Surge) 7A (8/20μs)
- 2-pin leadless package
- Lead-free devices
- Typical response time < 1 ns
