TECH PUBLICDatasheet (PDF)

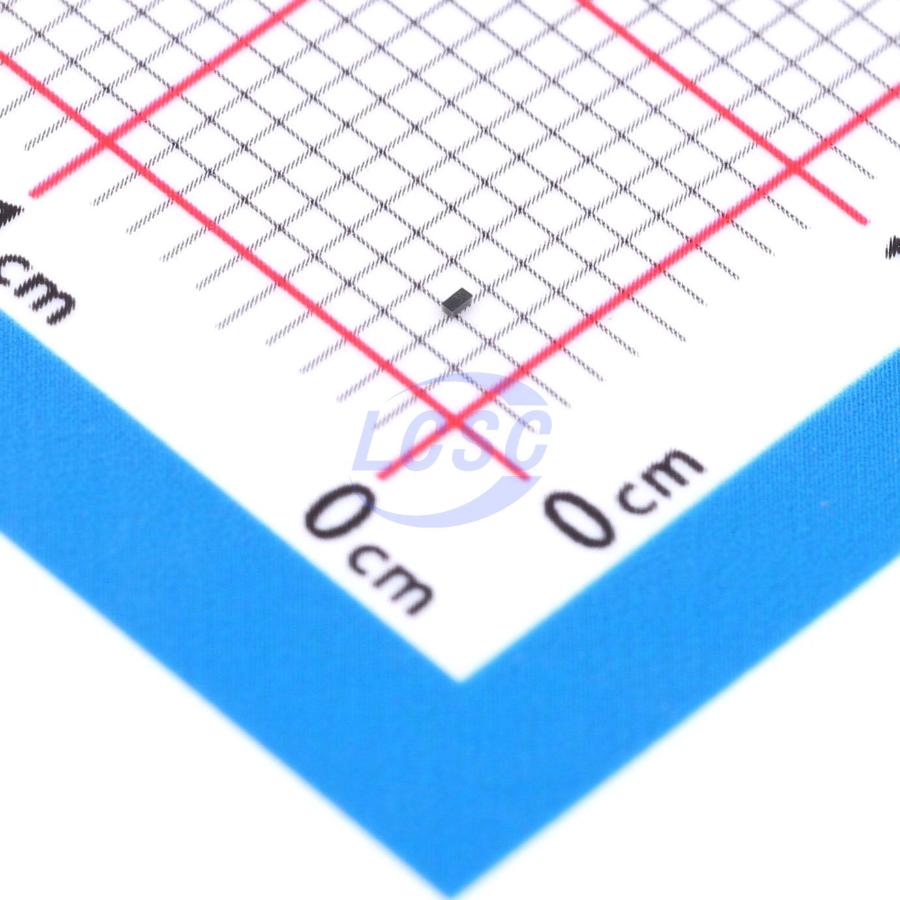

TPRCLAMP1031ZCTFT
4.3V 3.5A@8/20us 30W@8/20us 2V Bidirectional 1V DFN0603-2 TVS Diodes RoHS
DFN0603-2ROHS CompliantActive
1VWM 4.3VC DFN0603-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRCLAMP1031ZCTFT
- Store part #
- C49374618
- Package / case
- DFN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C49374618
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.63 | ₹58.15 |
| 50+ | ₹9.33 | ₹466.50 |
| 150+ | ₹8.18 | ₹1,227.00 |
| 500+ | ₹7.32 | ₹3,660.00 |
| 2,500+ | ₹6.30 | ₹15,750.00 |
| 5,000+ | ₹5.94 | ₹29,700.00 |
5 × ₹11.63
₹58.15
excl. GST
₹68.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
TPRCLAMP1031ZCTFT
₹58.15 for 5 + GST
Specifications
- Clamping Voltage
- 4.3V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 2V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 1V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Applications
- Mobile Phones & Accessories
- Personal Digital Assistants
- Laptops & Handheld Devices
- Thunderbolt 3.0
- USB 3.x
Key features
- Low operating voltage: 1V
- Ultra-low capacitance: 0.35pF (typical)
- Ultra-low leakage: nanoamp-level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test, air discharge: ±18kV
- IEC 61000-4-2 (ESD) immunity test, contact discharge: ±16kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Surge) 3.5A (8/20μs)
- 2-pin leadless package
- Lead-free devices
- Typical response time < 1 ns
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD0121LZ#C49333212TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 14,040 | ₹9.58 · 14,040 in stock | View |
 | TPAQ0115-01ETG#C52098230TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 880 | ₹7.96 · 880 in stock | View |
 | ESDL2012MX4T5G#C2987137TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 6,785 | ₹15.31 · 6,785 in stock | View |
 | ESDL2011PFCT5G#C2987138TECH PUBLIC · DFN0603-2 | TECH PUBLIC | DFN0603-2 | 5,915 | ₹22.16 · 5,915 in stock | View |
