TECH PUBLICDatasheet (PDF)

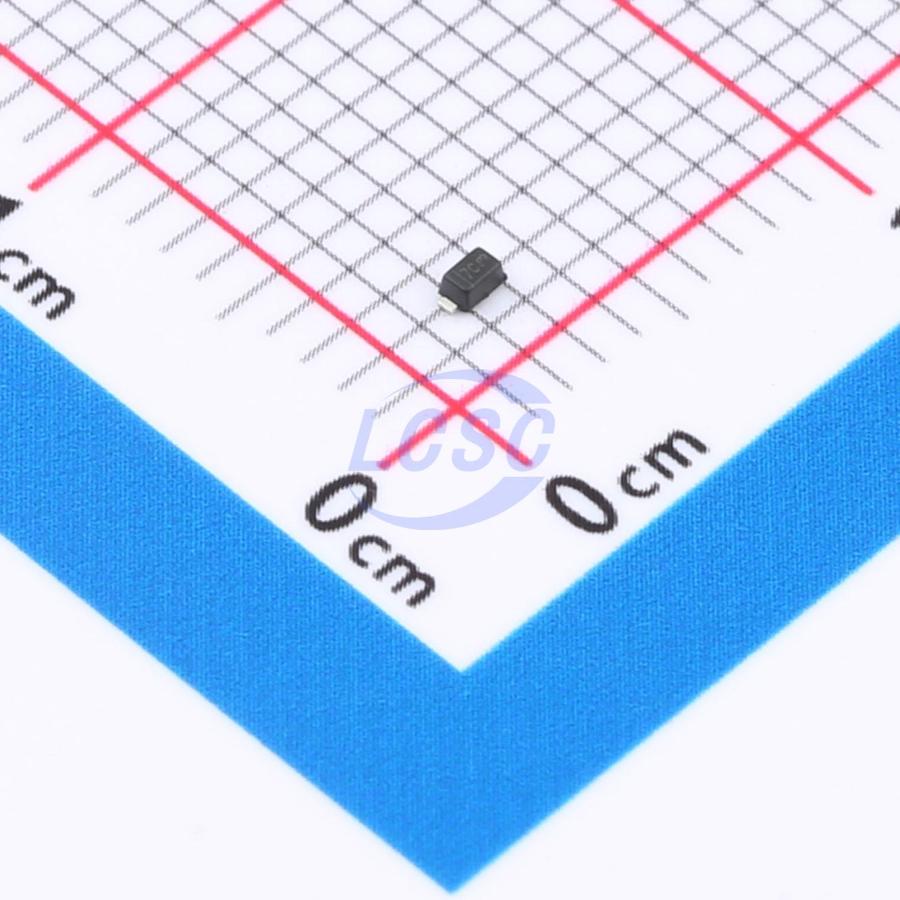

TPCSH08BB
15VC Clamp 8A@8/20us Ipp ESD DIODE SOD-523
SOD-523RoHSActive
ESD DIODE 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPCSH08BB
- Store part #
- C48886831
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C48886831
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.73 | ₹74.60 |
| 200+ | ₹2.96 | ₹592.00 |
| 600+ | ₹2.53 | ₹1,518.00 |
| 3,000+ | ₹2.28 | ₹6,840.00 |
| 9,000+ | ₹2.05 | ₹18,450.00 |
| 21,000+ | ₹1.93 | ₹40,530.00 |
20 × ₹3.73
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPCSH08BB
₹74.60 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripheral devices
Key features
- Low operating voltage: 7V
- Ultra-low capacitance: 20pF
- Ultra-low leakage current: nA level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity test standard: air discharge ±30kV, contact discharge ±30kV
- Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
- 2-pin leadless package
- Lead-free device
- Typical response time <1 ns
- Package: SOD523 (0603)
- Lead finish: Matte tin
- Case material: "Green" molding compound
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ESD5Z7V0C#C51939552TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,440 | ₹3.40 · 2,440 in stock | View |
 | TPLESD5D7.0CT1G#C51939658TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,900 | ₹3.40 · 2,900 in stock | View |
 | TPESD5B7.0CT1G#C51939648TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,760 | ₹3.40 · 2,760 in stock | View |
 | TPESD7V0S1BB#C51939649TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,060 | ₹3.21 · 2,060 in stock | View |
 | TPESD07B6AWT#C48639027TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,760 | ₹3.85 · 2,760 in stock | View |
