TECH PUBLICDatasheet (PDF)

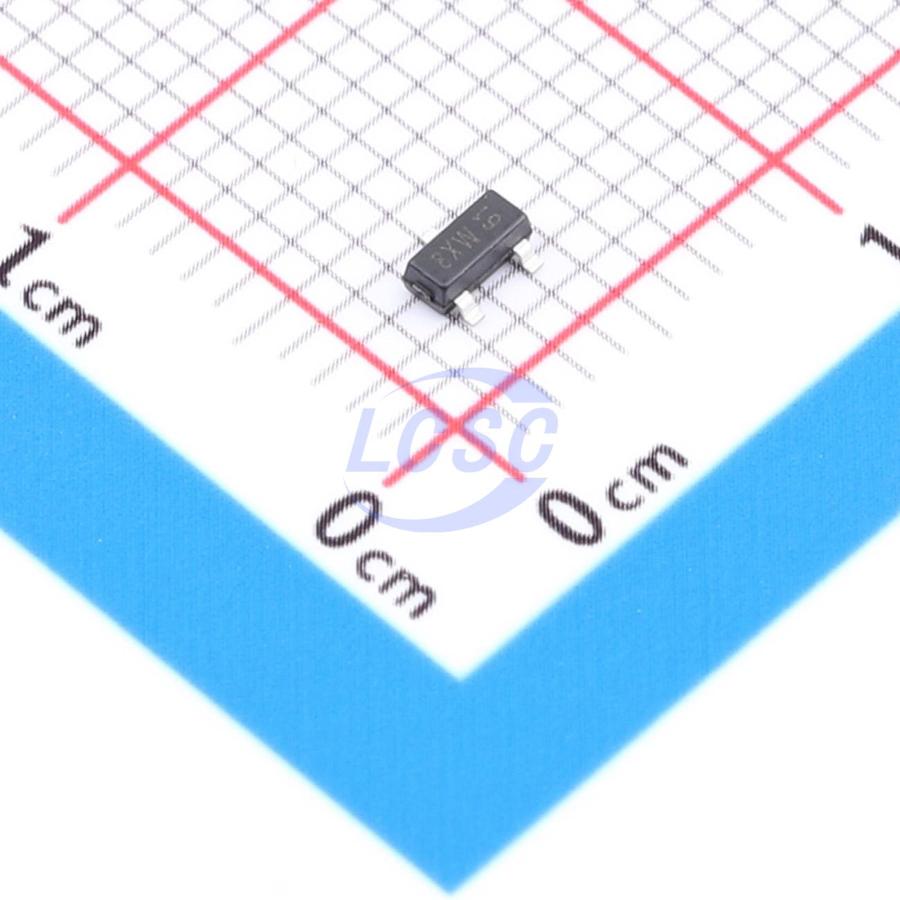

TPESD2CANFD36LT-QR
72V 3A@8/20us 180W@8/20us 44V Bidirectional 36V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPESD2CANFD36LT-QR
- Store part #
- C53340930
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,765 in stock
#C53340930
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPESD2CANFD36LT-QR
₹53.10 for 5 + GST
Specifications
- Clamping Voltage
- 72V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Voltage - Breakdown
- 44V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Applications
- Industrial control
- Personal digital assistants
- Laptop and handheld devices
- CAN bus protection
- Automotive applications
Key features
- Low operating voltage: 36V
- Ultra-low capacitance: 4pF
- Ultra-low leakage: nanoamp-level
- Low clamping voltage
- Passes IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±22kV
- Contact discharge: ±22kV
- Passes IEC 61000-4-4 (EFT) 40A (5/50ns) test
- 3-pin lead-free package
- Lead-free devices
- Response time typically < 1 ns
- Package: SOT-23
- Lead finish: matte tin
- Case material: "green" molding compound
- Passes IEC 61000-4-2 (ESD) immunity test
