TECH PUBLICDatasheet (PDF)

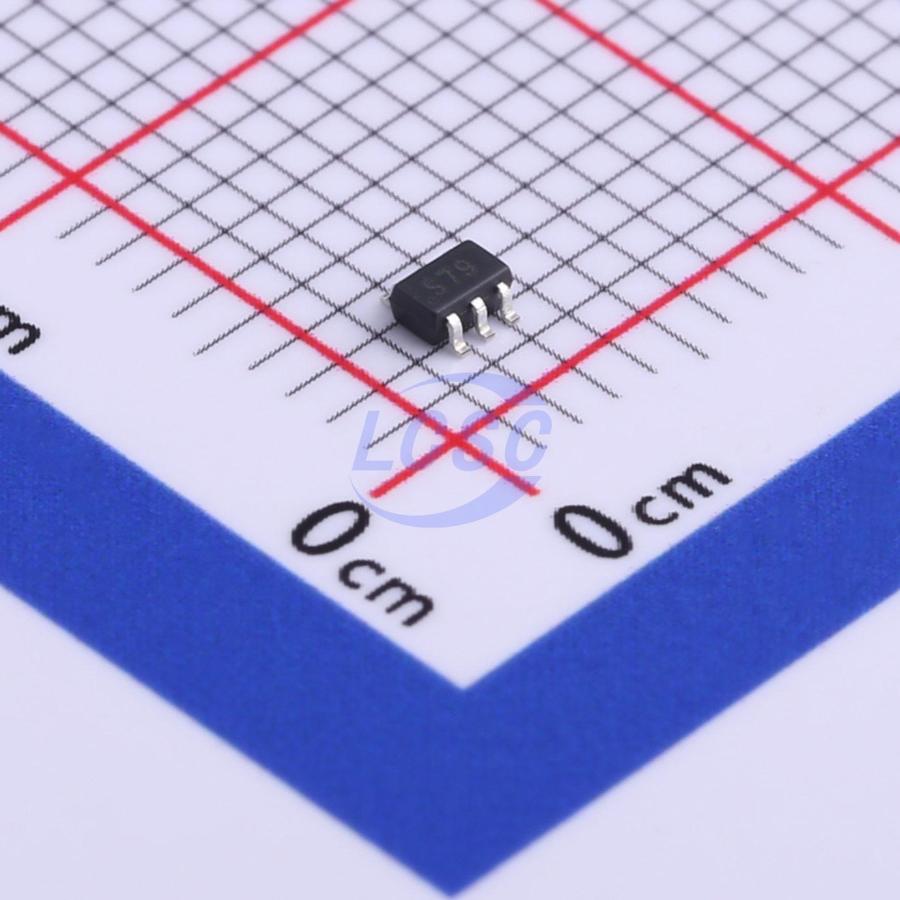

TPG619C6
2.8V~5V 1 SOT-363 Analog Switches, Multiplexers, Demultiplexers
SOT-363RoHSActive
GaAs DC-3GHz SPDT Switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPG619C6
- Store part #
- C521968
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,815 in stock
#C521968
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹17.95 | ₹897.50 |
| 150+ | ₹15.98 | ₹2,397.00 |
| 500+ | ₹13.52 | ₹6,760.00 |
| 3,000+ | ₹11.30 | ₹33,900.00 |
| 6,000+ | ₹10.64 | ₹63,840.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPG619C6
₹112.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.8V~5V
- Number of Channels
- 1
- Con
- 5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TPG619C6 is a GaAs SPDT switch operating at DC - 3GHz in a low cost SOT - 363 plastic lead(Pb) free package. The TPG619C6 features low insertion loss with very low DC power consumption. This switch can be used in many wireless digital communication systems like IEEE 802.11b/g WLAN and Bluetooth for transmit/receive selection or antenna diversity function.
Applications
- WLAN
- Mobile Phone
- Bluetooth
- DECT
- PHS
- GPS
Key features
- Low Insertion Loss: 0.4dB @ 2.5GHz
- High Isolation: 30dB @ 2.5GHz
- P - 1dB: +31dBm Typical @ +3V
- IIP3: 55dBm @ Input Power up to 20dBm
- Good Reliability Performance
- SOT - 363 6 Lead Plastic Package
