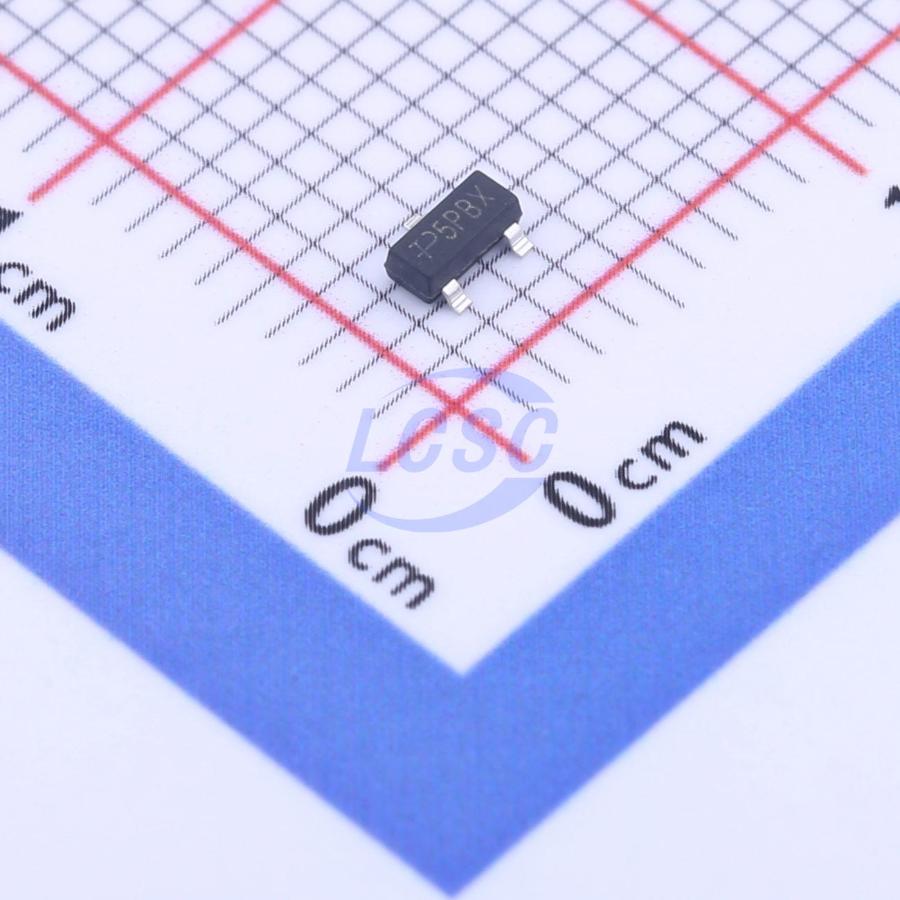

TPIRLML2244TRPBF
20V 4.1A 1.7W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4.1A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPIRLML2244TRPBF
- Store part #
- C2940631
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,300 in stock
#C2940631
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.71 | ₹58.55 |
| 50+ | ₹9.42 | ₹471.00 |
| 150+ | ₹8.27 | ₹1,240.50 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹5.97 | ₹17,910.00 |
| 6,000+ | ₹5.62 | ₹33,720.00 |
5 × ₹11.71
₹58.55
excl. GST
₹69.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPIRLML2244TRPBF
₹58.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 740pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 52mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Advanced Trench Technology Excellent on-resistance RDS(ON) and low gate charge
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Advanced Trench Technology
- Excellent Rps(on) and Low Gate Charge
- Leadfreeproduct is acquired
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG2305UX#C2940629TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,330 | ₹13.31 · 7,330 in stock | View |
 | DMP2305U#C2940630TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 700 | ₹14.05 · 700 in stock | View |
 | APM2305AC#C2959856TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 13,525 | ₹11.55 · 13,525 in stock | View |
 | WPM2341A#C2987066TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,130 | ₹12.98 · 2,130 in stock | View |
 | DMP2130L#C28646340TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 205 | ₹6.89 · 205 in stock | View |
