TECH PUBLICDatasheet (PDF)

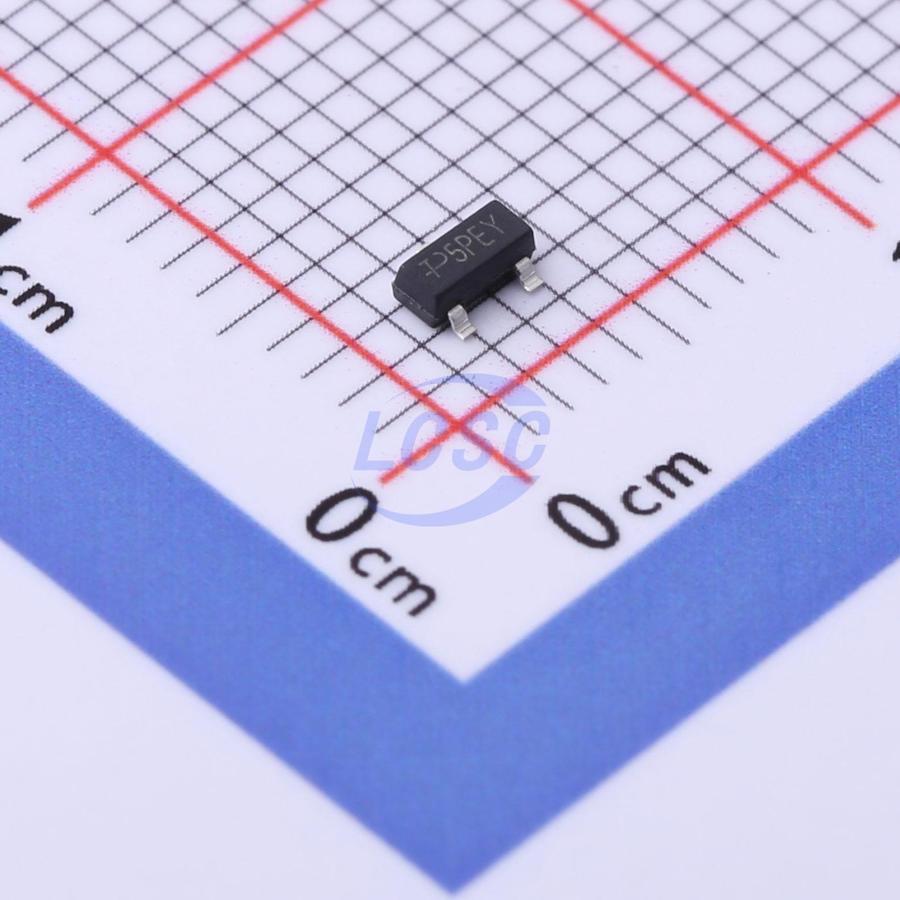

WPM2341A
20V 4.1A 1.7W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4.1A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- WPM2341A
- Store part #
- C2987066
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,130 in stock
#C2987066
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.98 | ₹64.90 |
| 50+ | ₹10.33 | ₹516.50 |
| 150+ | ₹9.01 | ₹1,351.50 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 3,000+ | ₹6.46 | ₹19,380.00 |
| 6,000+ | ₹6.06 | ₹36,360.00 |
5 × ₹12.98
₹64.90
excl. GST
₹76.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WPM2341A
₹64.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 740pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4.1A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 52mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Advanced Trench Technology Excellent R<sub>DS(ON)</sub> and Low Gate Charge
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- Advanced TrenchTechnology
- Excellent Rps(on) and Low Gate Charge
- Lead freeproduct is acquired
