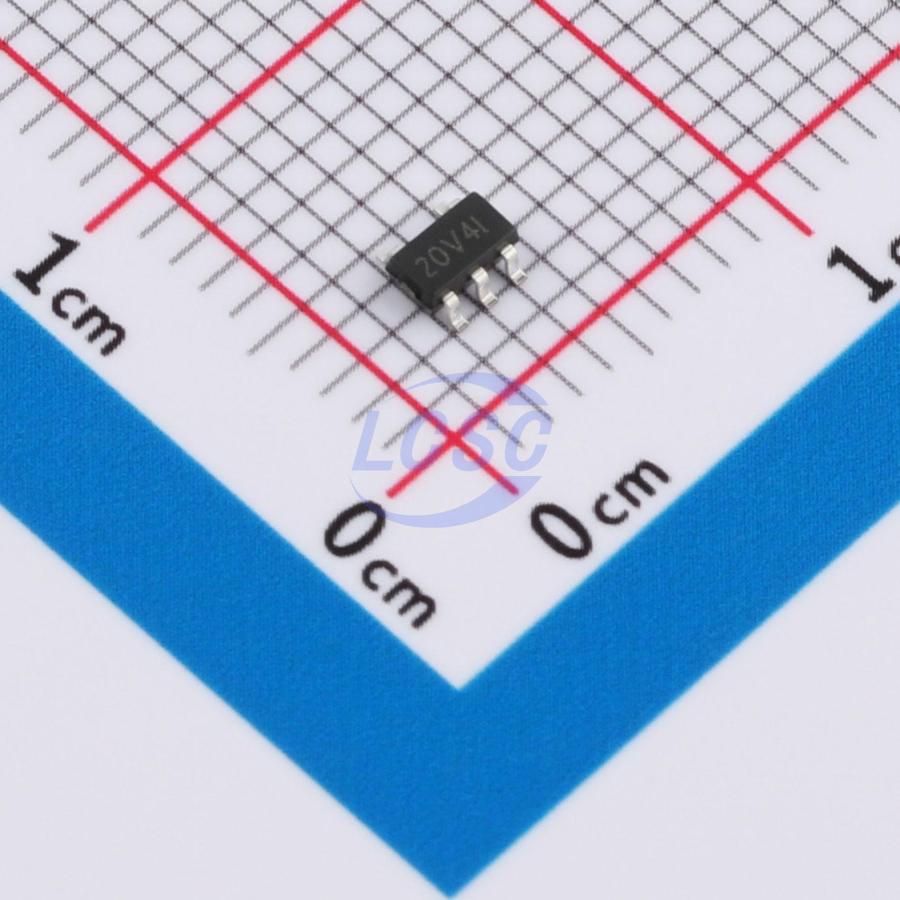

TPK20V4IS5
4.5V~18V 300mA 600mA SOT-23-5 Gate Drivers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPK20V4IS5
- Store part #
- C51939653
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C51939653
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.28 | ₹161.40 |
| 50+ | ₹25.24 | ₹1,262.00 |
| 150+ | ₹22.23 | ₹3,334.50 |
| 500+ | ₹18.47 | ₹9,235.00 |
| 3,000+ | ₹16.79 | ₹50,370.00 |
| 6,000+ | ₹15.78 | ₹94,680.00 |
5 × ₹32.28
₹161.40
excl. GST
₹190.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPK20V4IS5
₹161.40 for 5 + GST
Specifications
- Input Logic Level - Low
- 1V~1.2V
- Low Level Delay Time
- 33ns
- High Level Delay Time
- 33ns
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.4V~2.6V
- Voltage - Supply
- 4.5V~18V
- Operating Temperature
- 0℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 12ns
- Fall Time
- 11ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This device is a compact gate driver that serves as an excellent replacement for NPN and PNP discrete driver (buffer circuit) solutions. The driver is suitable for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN. Well-suited for high-speed applications. Its asymmetric 4A peak source current and 8A peak sink current enhance immunity to parasitic Miller turn-on effects. Features including wide input hysteresis and negative input voltage handling improve transient noise immunity.
Applications
- DC-DC converters
- Desktop computer power supplies
- Switching mode power supplies
- Companion gate drivers for digital power controllers
- Gate drivers for emerging wide bandgap power devices (e.g., GaN)
Key features
- 4.5V to 15V single-supply range
- Output held low during VDD undervoltage lockout
- TTL and CMOS compatible input logic thresholds
- Output designed to remain low when input pins are floating
- Fast rise and fall times (typical 9ns and 7ns)
- Fast propagation delay (typical 13ns)
- Split-output configuration
- Strong sink current for enhanced Miller turn-on immunity
- Input pins withstand voltages 5V below GND pin
- Compact package: SOT23-5
