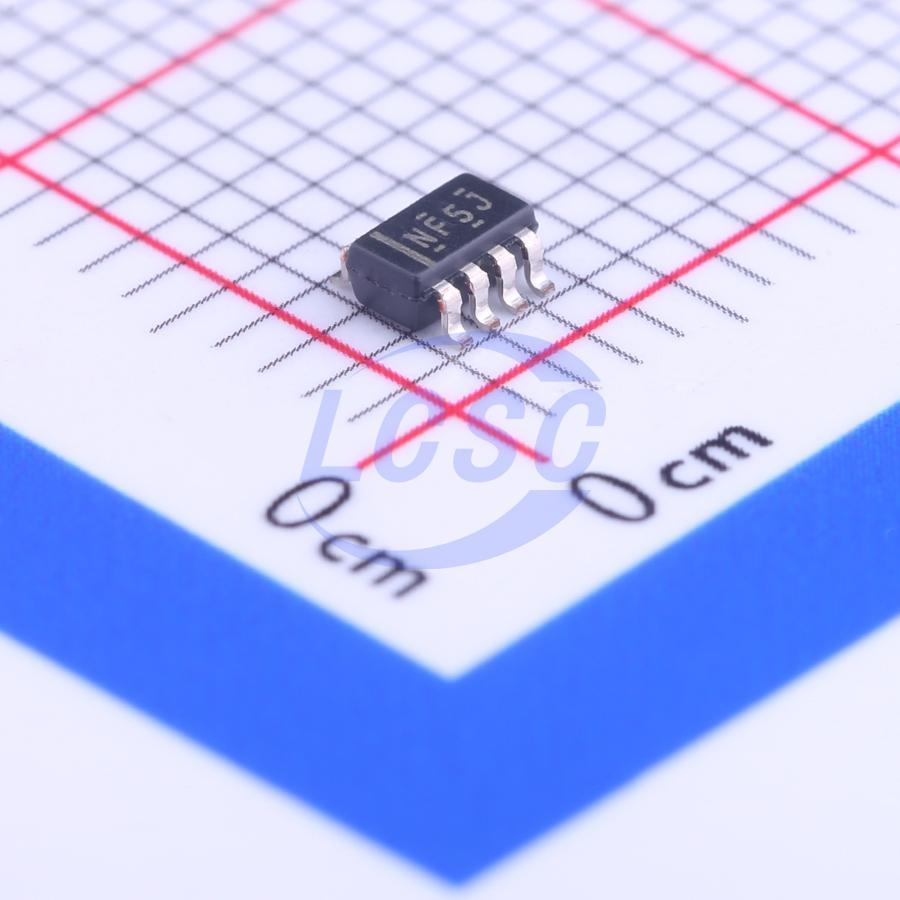

TPL0501-100DCNR
±20% SPI 100kΩ SOT-23-8 Digital Potentiometers RoHS
256-tap single-channel digital potentiometer with SPI interface
- Manufacturer
- TI
- Manufacturer part #
- TPL0501-100DCNR
- Store part #
- C131323
- Package / case
- SOT-23-8
- Category
- Digital Potentiometers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C131323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.55 | ₹175.55 |
| 10+ | ₹145.97 | ₹1,459.70 |
| 30+ | ₹129.87 | ₹3,896.10 |
| 100+ | ₹104.85 | ₹10,485.00 |
| 500+ | ₹96.59 | ₹48,295.00 |
| 1,000+ | ₹92.89 | ₹92,890.00 |
1 × ₹175.55
₹175.55
excl. GST
₹207.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPL0501-100DCNR
₹175.55 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.5V
- Resistance value change
- Linear
- Number of Taps
- 256
- Tolerance
- ±20%
- Interface
- SPI
- Temperature Coefficient(Typ)
- 35ppm/℃
- Operating Temperature
- -40℃~+85℃
- Resistance Value (Ohms)
- 100kΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The TPL0501 device is a single-channel linear taper digital potentiometer with 256 wiper positions. The device can be used as a three-terminal potentiometer or a two-terminal rheostat. The TPL0501 device is equipped with a 100 kΩ end-to-end resistance. The internal registers of the TPL0501 device are accessible via an SPI-compatible interface. The TPL0501 device has a nominal temperature coefficient of 35 ppm/°C. The TPL0501 is available in an 8-pin Small Outline Transistor (SOT)-23 and an 8-pin Ultra-thin Quad Flat No-lead (UQFN) package, rated for a temperature range of -40°C to 85°C.
Applications
- Adjustable power supply
- Variable gain amplifier and offset trimming
- Precision calibration of setpoint thresholds
- Sensor fine-tuning and calibration
- Mechanical potentiometer replacement
Key features
- Single-channel, 256-position resolution
- 100 kΩ end-to-end resistance option
- Low temperature coefficient: 35 ppm/°C
- SPI-compatible serial interface
- 2.7V to 5.5V single-supply operation
- ±20% resistance tolerance
- Operating temperature: -40°C to 125°C
- ESD performance per JESD 22 – 2000V Human Body Model (A114-B, Class II)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD5165BUJZ100-R7#C578144ADI · TSOT-23-8 | ADI | TSOT-23-8 | 420 | ₹330.02 · 420 in stock | View |
 | AD5165BUJZ100-R2#C649294ADI · TSOT-23-8 | ADI | TSOT-23-8 | 2 | ₹646.36 · 2 in stock | View |
 | MAX5401EKA+T#C1121862MAXIM · SOT-23-8 | MAXIM | SOT-23-8 | 2 | ₹318.13 · 2 in stock | View |
 | AD5160BRJZ100-RL7#C578141ADI · SOT-23-8 | ADI | SOT-23-8 | 135 | ₹414.13 · 135 in stock | View |
| AD5160BRJZ100-R2#C649282ADI · SOT-23-8 | ADI | SOT-23-8 | 3 | ₹369.84 · 3 in stock | View | |
