TECH PUBLICDatasheet (PDF)

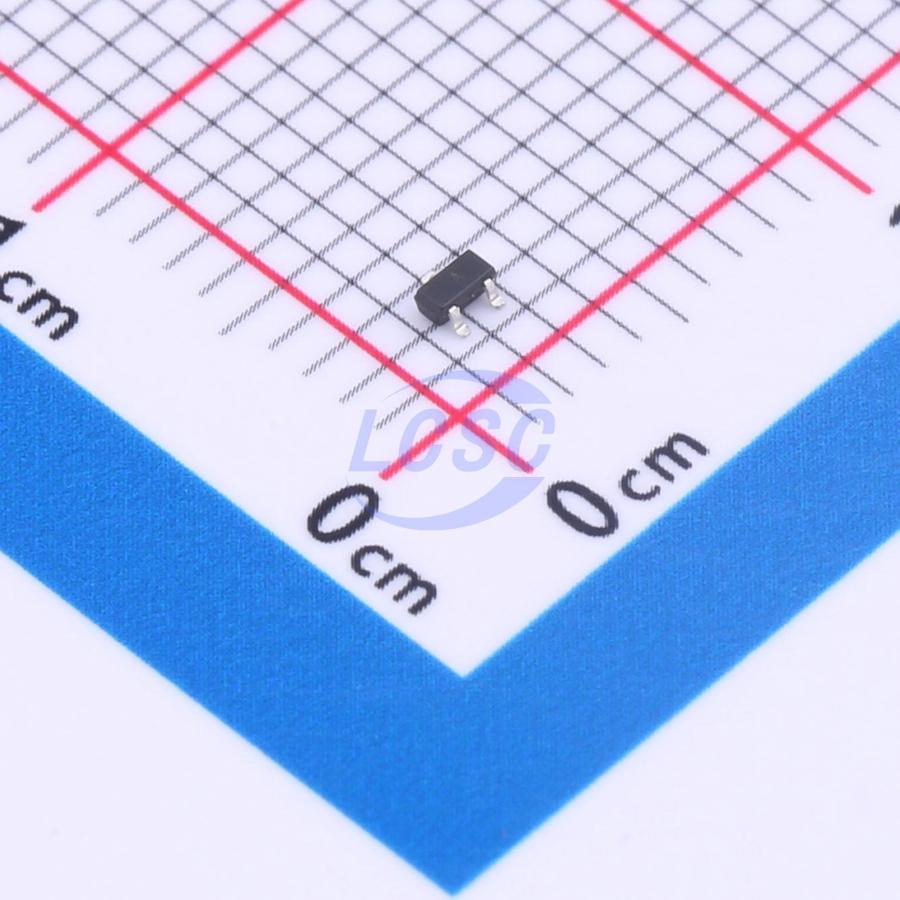

TPM1012ER3-1
20V 0.9A 0.27W Surface Mount SOT-523
SOT-523RoHSActive
MOSFET 20V 0.9A SOT-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM1012ER3-1
- Store part #
- C5182081
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C5182081
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.18 | ₹71.80 |
| 100+ | ₹5.76 | ₹576.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.01 | ₹12,030.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
10 × ₹7.18
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM1012ER3-1
₹71.80 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 9pF
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 270mW
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 900mA
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = 20V
- RDS(ON) = 300mΩ (typ.) @ VGS = 2.5V
- RDS(ON) = 250mΩ (typ.) @ VGS = 4.5V
- ESD Protected up to 2KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNTA4001NT1G#C42407114TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 1,980 | ₹5.29 · 1,980 in stock | View |
 | SI2302T#C55042656TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,820 | ₹4.58 · 2,820 in stock | View |
