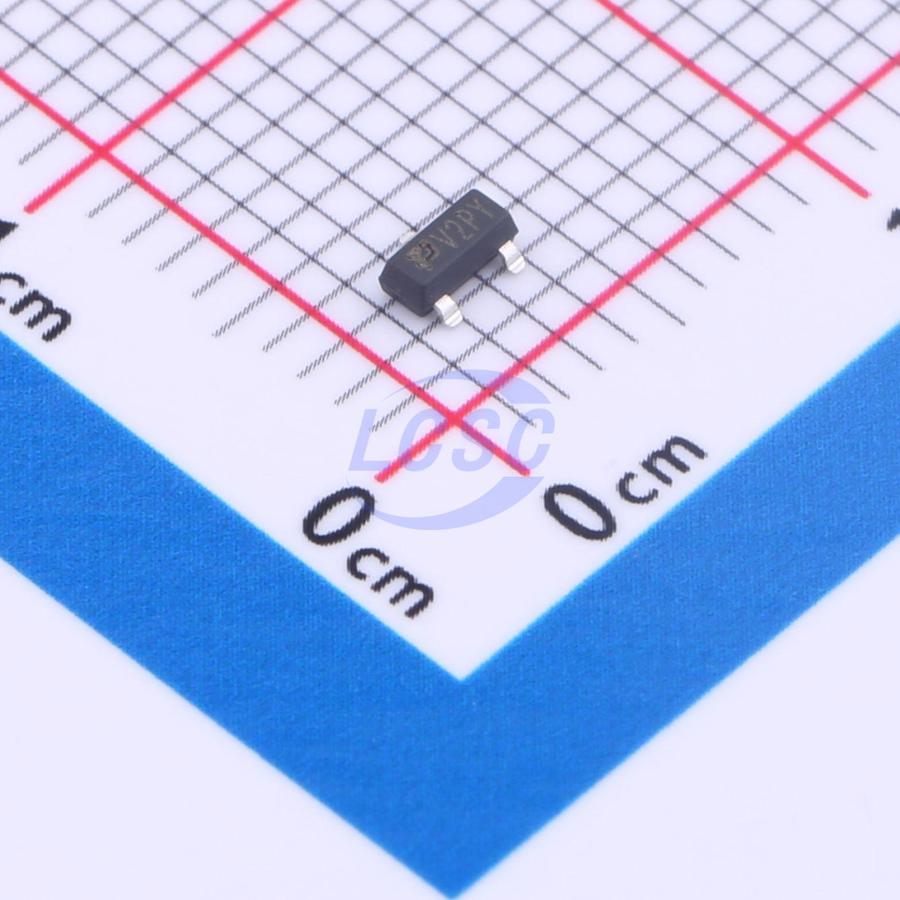

TPM60V2PS3-3
1.5W 60V 1.6A 150mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
P-Channel Power MOSFET
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM60V2PS3-3
- Store part #
- C5182089
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,721 in stock
#C5182089
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹14.76 | ₹14.76 |
| 10+ | ₹12.83 | ₹128.30 |
| 30+ | ₹12.01 | ₹360.30 |
| 100+ | ₹10.98 | ₹1,098.00 |
| 500+ | ₹10.53 | ₹5,265.00 |
| 1,000+ | ₹10.25 | ₹10,250.00 |
1 × ₹14.76
₹14.76
excl. GST
₹17.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM60V2PS3-3
₹14.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 19.6pF
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- VDS = -60V, ID = -1.6A
- RDS(ON) < 200mΩ @ VGS = -10V
- RDS(ON) < 240mΩ @ VGS = -4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2309#C19268136TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,480 | ₹8.94 · 2,480 in stock | View |
 | LP2309LT1G#C7202957TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,620 | ₹8.35 · 1,620 in stock | View |
 | FDN5618P#C3021110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 39,180 | ₹13.03 · 39,180 in stock | View |
 | TPM60V2PS3#C3021111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,670 | ₹16.59 · 2,670 in stock | View |
 | SI2309CDS#C3021112TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 9,495 | ₹13.34 · 9,495 in stock | View |
