TECH PUBLICDatasheet (PDF)

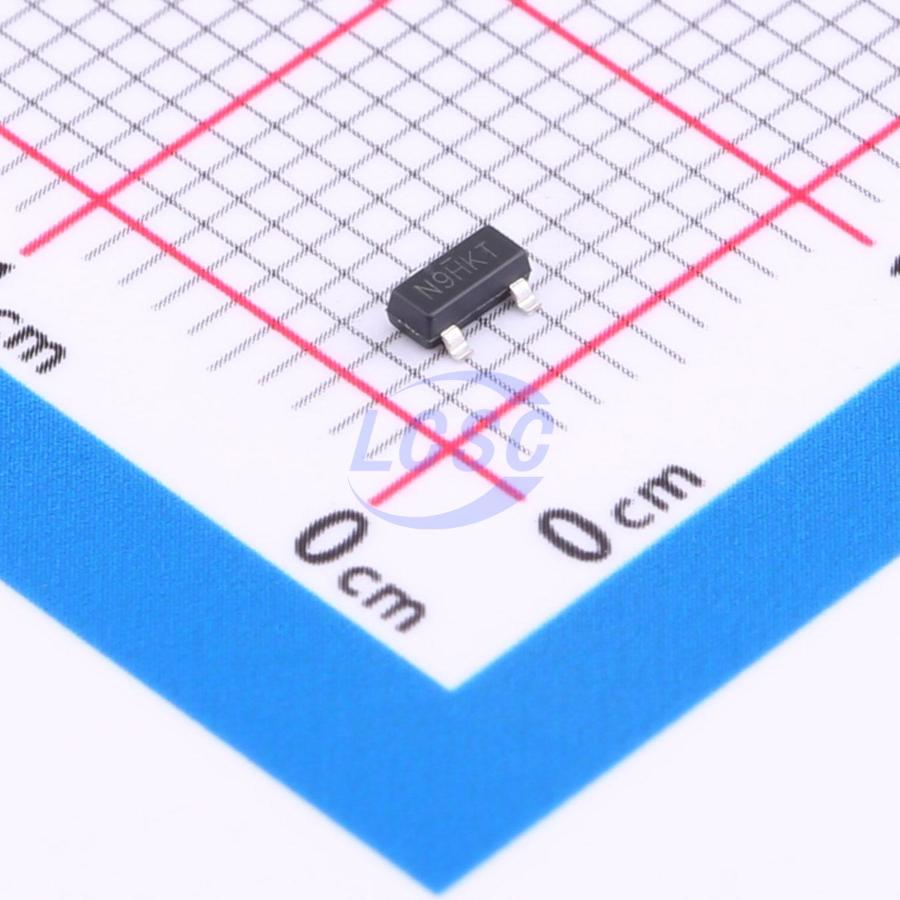

LP2309LT1G
60V 1.6A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 60V 1.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LP2309LT1G
- Store part #
- C7202957
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C7202957
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.35 | ₹83.50 |
| 100+ | ₹6.56 | ₹656.00 |
| 300+ | ₹5.66 | ₹1,698.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.46 | ₹26,760.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹8.35
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP2309LT1G
₹83.50 for 10 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 19.6pF
- Current - Continuous Drain(Id)
- 1.6A
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- VDS = -60V, ID = -1.6A
- RDs(on) <200mΩ @ Vgs = -10V
- RDs(on) <240mΩ @ Vgs = -4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2309#C19268136TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,480 | ₹8.94 · 2,480 in stock | View |
 | TPM60V2PS3-3#C5182089TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,721 | ₹14.76 · 2,721 in stock | View |
 | TPM60V2PS3-1#C4355021TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,390 | ₹14.76 · 2,390 in stock | View |
 | SI2309DS#C5182077TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,975 | ₹13.64 · 2,975 in stock | View |
 | FDN5618P#C3021110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 39,180 | ₹13.03 · 39,180 in stock | View |
