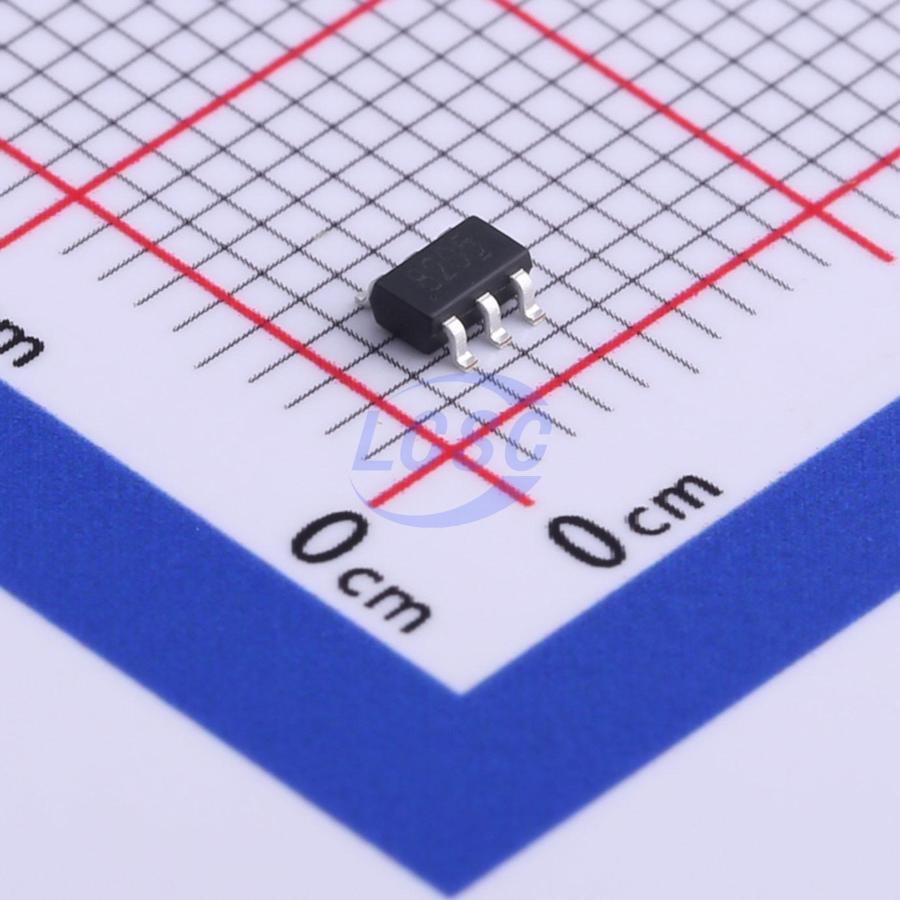

TPM8205TS6
N-Channel Array 20V 6A 1.5W Surface Mount SOT-23-6
SOT-23-6RoHSActive
MOSFET N-CH ARR 20V 6A SOT-23-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM8205TS6
- Store part #
- C521975
- Package / case
- SOT-23-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C521975
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.46 | ₹64.60 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.50 | ₹1,350.00 |
| 3,000+ | ₹4.01 | ₹12,030.00 |
| 6,000+ | ₹3.61 | ₹21,660.00 |
| 9,000+ | ₹3.41 | ₹30,690.00 |
10 × ₹6.46
₹64.60
excl. GST
₹76.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM8205TS6
₹64.60 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 480pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 40mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 8nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
Applications
- Charge protection for lithium batteries (only used for lithium battery protector) D internal connection, not external use.
Key features
- 20, 6A
- Rds(on)=20mΩ @Vgs = 4.5V
- Rds(on)=28mΩ @Vgs = 2.5V
- SOT23 - 6 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UT8205AG-AG6#C2827644TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,830 | ₹7.22 · 2,830 in stock | View |
 | FS8205A#C2830320TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 32,130 | ₹6.63 · 32,130 in stock | View |
 | DMG6968UDM-TP#C48543185TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,150 | ₹6.05 · 2,150 in stock | View |
 | TPM8205ATS6-1#C5123968TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,530 | ₹5.68 · 3,530 in stock | View |
 | 8205A#C5370944TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,730 | ₹5.82 · 3,730 in stock | View |
