TECH PUBLICDatasheet (PDF)

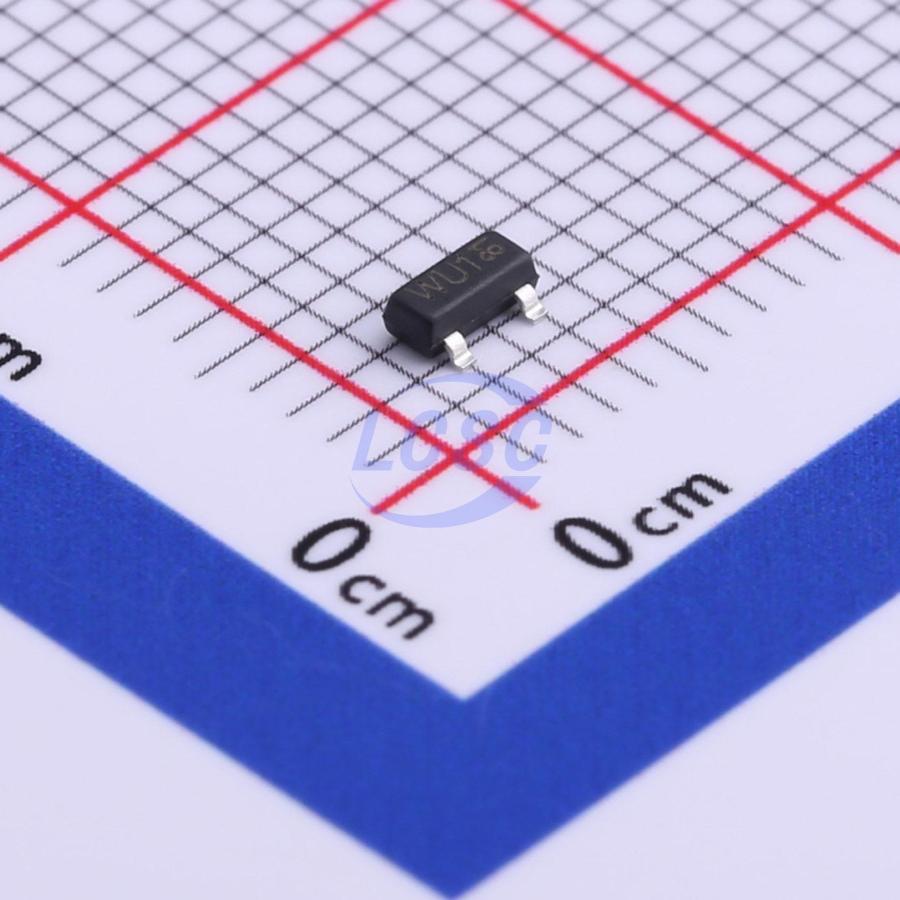

TPPESD5V2S2UT
nan
SOT-23RoHSActive
ESD DIODE 5VWM SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPPESD5V2S2UT
- Store part #
- C558449
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C558449
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.41 | ₹88.20 |
| 200+ | ₹3.53 | ₹706.00 |
| 600+ | ₹3.04 | ₹1,824.00 |
| 3,000+ | ₹2.42 | ₹7,260.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.04 | ₹42,840.00 |
20 × ₹4.41
₹88.20
excl. GST
₹104.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPPESD5V2S2UT
₹88.20 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 1A
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.037 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to IEC 61000 - 4 - 2 (ESD) ±15kV (air), ±8kV (contact) IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- Working voltages: 5V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid - state silicon avalanche technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ6V2ALT1G#C2936998TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 4,200 | ₹4.93 · 4,200 in stock | View |
 | TPSP0502BAHTG#C2827647TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,810 | ₹18.18 · 2,810 in stock | View |
