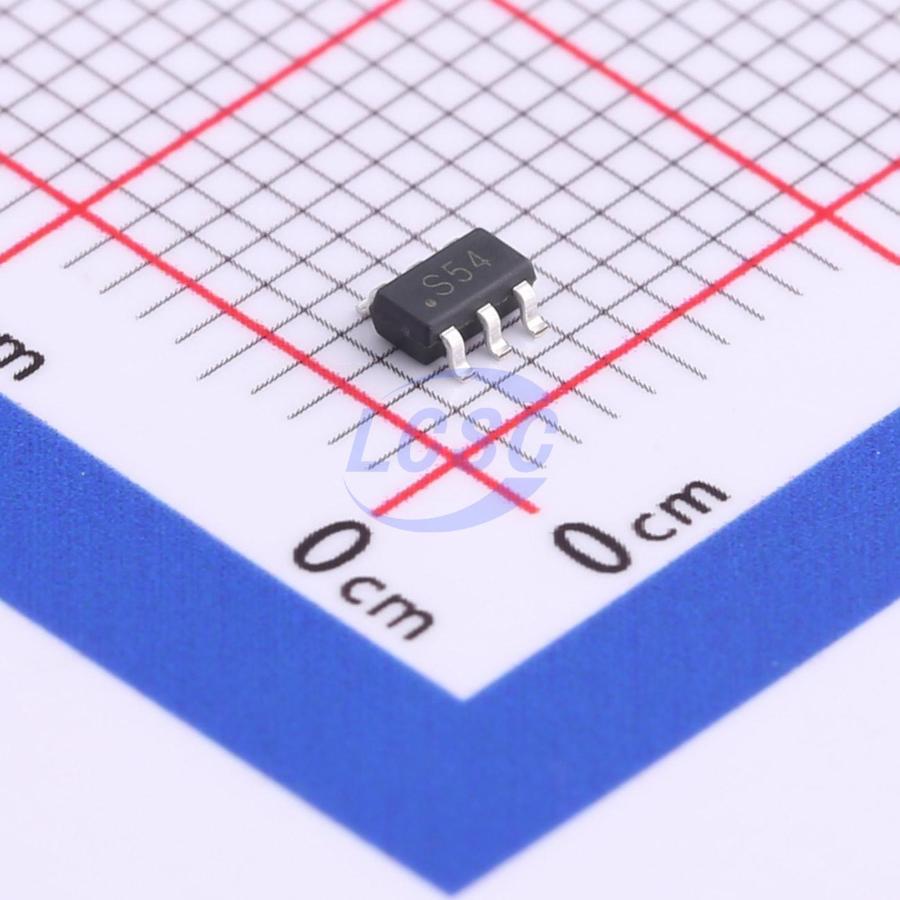

TPRCLAMP0504S
15V 5A@8/20us 300W@8/20us Unidirectional 5V SOT-23-6 TVS Diodes
SOT-23-6RoHSActive
Low Capactiance 4-Line TVS Array
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRCLAMP0504S
- Store part #
- C2835431
- Package / case
- SOT-23-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
790 in stock
#C2835431
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.11 | ₹101.10 |
| 100+ | ₹8.04 | ₹804.00 |
| 300+ | ₹7.01 | ₹2,103.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.13 | ₹30,780.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹10.11
₹101.10
excl. GST
₹119.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRCLAMP0504S
₹101.10 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- Four channels
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface(DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC…)
Key features
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) : 5 A(8/20μs)
