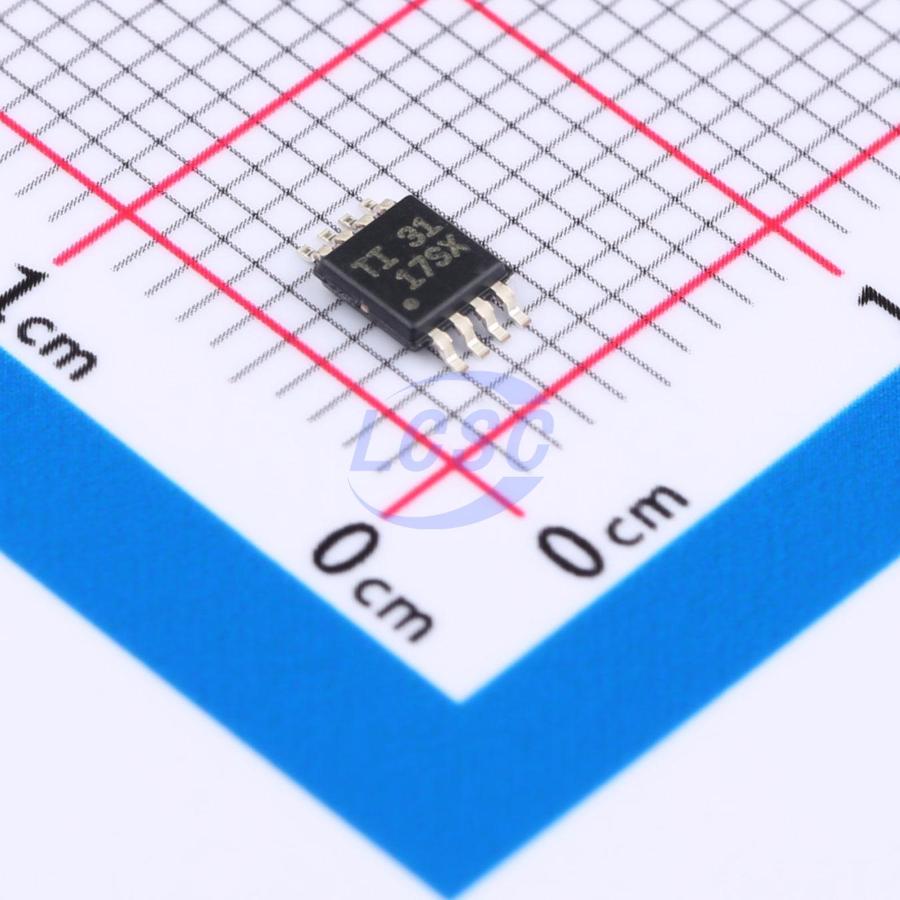

TPS1H000AQDGNRQ1
High Side Switch 1 Channel 1.8A MSOP-8-EP
MSOP-8-EPROHS3 CompliantActive
Single-channel intelligent high-side switch
- Manufacturer
- TI
- Manufacturer part #
- TPS1H000AQDGNRQ1
- Store part #
- C2653764
- Package / case
- MSOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,014 in stock
#C2653764
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.93 | ₹136.93 |
| 10+ | ₹110.15 | ₹1,101.50 |
| 30+ | ₹96.66 | ₹2,899.80 |
| 100+ | ₹83.38 | ₹8,338.00 |
| 500+ | ₹75.54 | ₹37,770.00 |
| 1,000+ | ₹71.40 | ₹71,400.00 |
1 × ₹136.93
₹136.93
excl. GST
₹161.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS1H000AQDGNRQ1
₹136.93 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Integrated charge pump;Latch protection
- number of channels
- 1
- Maximum Continuous Current
- 1.8A
- Control Input Logic
- Active Low
- RDS(on)
- 1Ω
- Operating Voltage
- 3.4V~40V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The TPS1H000-Q1 is a fully protected single-channel high-side power switch with an integrated 1000mΩ NMOS power FET. Adjustable current limiting improves system reliability by limiting inrush or overload currents. High-accuracy current limiting enhances overload protection, simplifying leading-edge power supply design. Additional configurable features beyond current limiting provide design flexibility in terms of functionality, cost, and thermal dissipation. The device supports comprehensive diagnostics via digital status output. Open-load detection is available in both ON and OFF states. The device operates with or without an MCU. "Standalone" mode enables use of the device in isolated systems.
Applications
- Single-channel LED driver
- Single-channel high-side relay driver
- Automotive body lighting
- ADAS sensor
- General resistive, inductive, and capacitive loads
Key features
- Qualified for automotive applications with the following AEC-Q100 results:
- Device temperature grade 1: ambient operating temperature range of -40°C to 125°C
- Device HBM ESD classification level H2
- Device CDM ESD classification level C4B
- Single-channel 1000mΩ smart high-side switch
- Wide operating voltage: 3.4V – 40V
- Low standby current: < 500nA
- Adjustable current limit (via external resistor)
- ≥ 50mA: ±15%
- ≥ 300mA: ±10%
- Configurable behavior after current limit:
- "Hold" mode
- "Latch" mode (with adjustable delay time)
- "Auto-retry" mode
- Supports standalone operation (no MCU required)
- Protection:
- GND short circuit and overload
- Thermal shutdown and thermal oscillation
- Negative voltage clamp for inductive loads
- GND loss and battery loss
- Diagnostics:
- Overload and GND short circuit detection
- Open-load and battery short circuit detection (in ON or OFF state)
- Thermal shutdown and thermal oscillation
