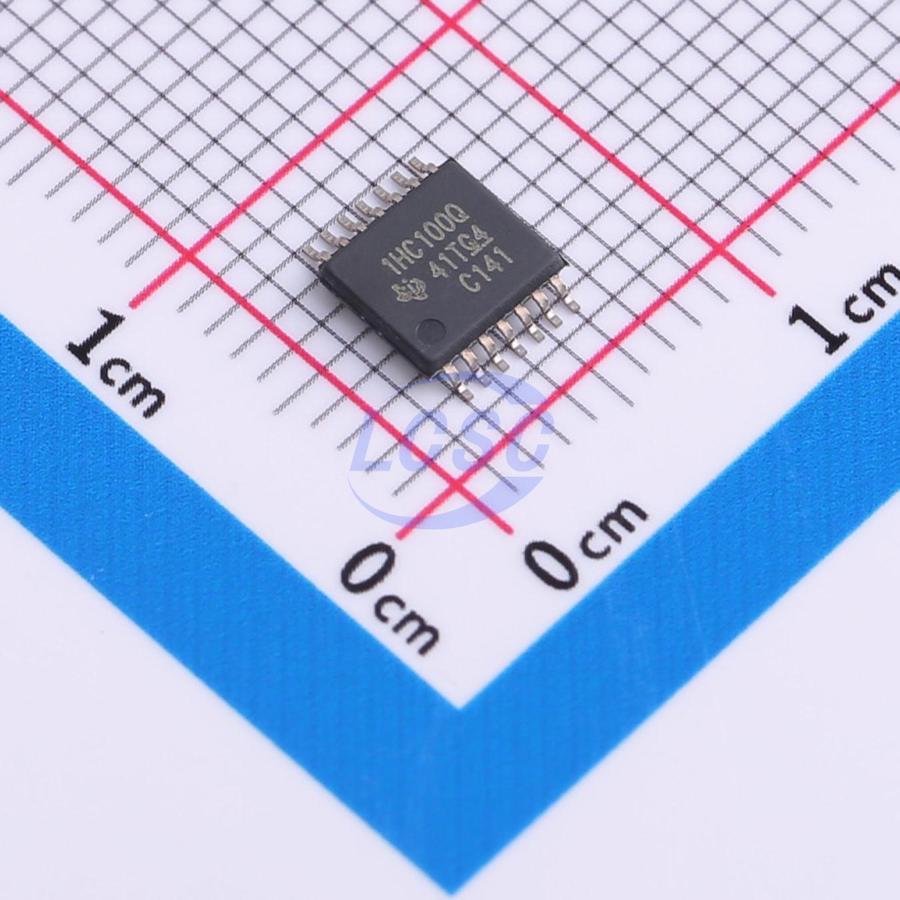

TPS1HC100BQPWPRQ1

High Side Switch 1 Channel 2.5A HTSSOP-14

HTSSOP-14ROHS3 CompliantActive

100 mΩ, 2.5 A single-channel automotive intelligent high-side switch

Manufacturer: TI
Manufacturer part #: TPS1HC100BQPWPRQ1
Store part #: C3230071
Package / case: HTSSOP-14
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,484 in stock

#C3230071

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹158.48	₹158.48
10+	₹140.03	₹1,400.30
30+	₹122.88	₹3,686.40
100+	₹109.85	₹10,985.00
500+	₹104.65	₹52,325.00
1,000+	₹102.04	₹1,02,040.00

Quantity (min 1)

1 × ₹158.48

₹158.48

excl. GST

₹187.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS1HC100BQPWPRQ1

₹158.48 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse voltage protection;Latch protection;Integrated charge pump
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2.5A
RDS(on): 100mΩ
Operating Voltage: 2.6V~28V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.172 g

Overview

The TPS1HC100-Q1 is a high-side power switch with comprehensive protection, integrating an NMOS power FET and charge pump for intelligent control of various loads. The device stands out in the market with its precise current sensing and programmable current limiting features. The 1.5V low logic-high threshold VIH on the input pin enables use with 1.8V MCU GPIO signals. High-accuracy current sensing provides improved real-time monitoring and more precise diagnostics without requiring further calibration. The external high-accuracy current limiting feature allows the current limit value to be configured per application requirements. The device significantly enhances system reliability by effectively clamping inrush current during startup or short-circuit conditions. The TPS1HC100-Q1 can be used as a high-side power switch for various resistive, inductive, and capacitive loads, including low-wattage bulbs, LEDs, relays, solenoids, and heaters.

Applications

Automotive display modules
ADAS modules
Seat comfort modules
HVAC control modules
Body control modules

Key features

Single-channel smart high-side power switch for 12V automotive systems with comprehensive diagnostic capabilities
Open-drain status output
Current sense analog output
Wide operating voltage range: 3V to 28V
Low standby current: below 0.5μA at 85°C
Operating junction temperature range: -40°C to 150°C
Supports 1.8V, 3.3V, and 5V logic levels
ADC protection via fault detection voltage regulation
Programmable current limit with ±18% accuracy at 1.9A
High-accuracy current sensing with ±6% accuracy at 1A
Overload and short-circuit protection
Inductive load negative voltage clamping
Under-voltage lockout (UVLO) protection
Thermal shutdown and thermal oscillation with auto-recovery
Loss of ground and loss of power protection
Reverse battery protection for external components
Open-load and battery short-circuit detection for ON and OFF state outputs
Overload and short-to-ground detection
Thermal shutdown and thermal oscillation detection
AEC-Q100 automotive Grade 1 temperature compliant
Functional safety documentation available to support functional safety system design
Tested to AECQ100-12 Class A, with 1 million short-to-ground test cycles
Certified to ISO7637-2 and ISO16750-2 electrical transient immunity
