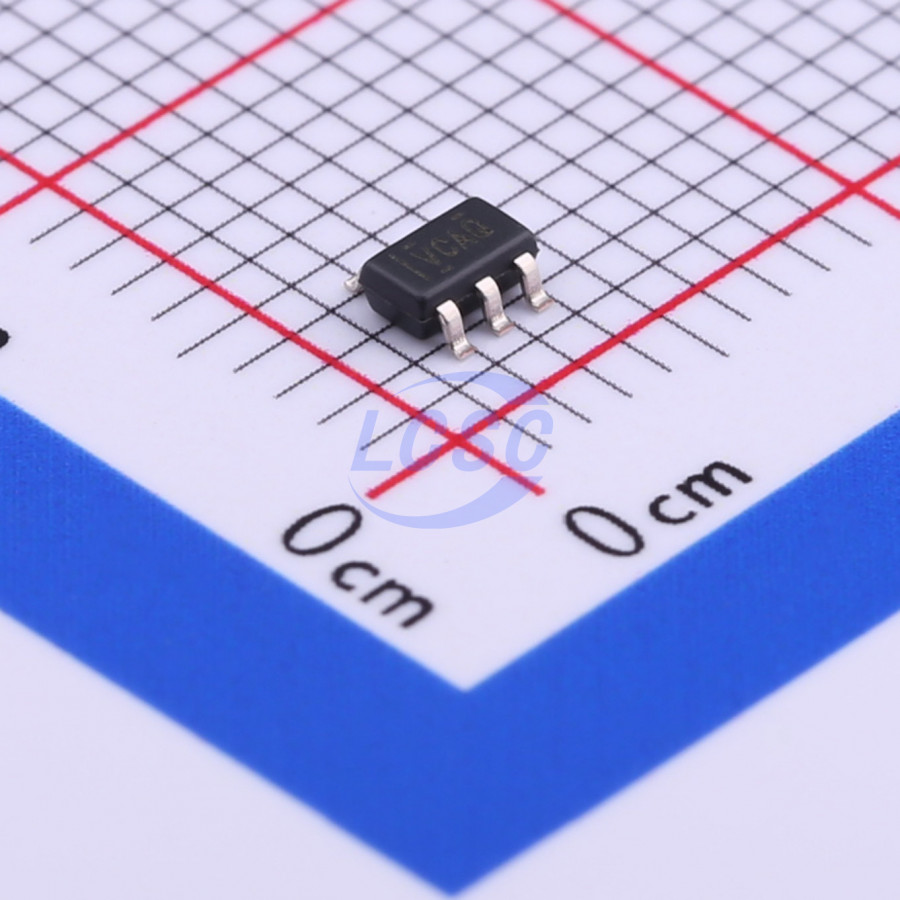

TPS2065CDBVR

The TPS20xxC and TPS20xxC - 2 power - distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current - limit thresholds for applications from 0.5 A to 2 A. The TPS20xxC and TPS20xxC - 2 family limits the output current to a safe level by operating in a constant - current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5 - V supply to provide regulated power when the output is shorted. The power - switch rise and fall times are controlled to minimize current surges during turnon and turnoff.

Applications

• USB Ports and Hubs, Laptops, and Desktops
• High - Definition Digital TVs
• Set - Top Boxes
• Short - Circuit Protection

Key features

• Single Power Switch Family
• Pin - for - Pin With Existing TI Switch Portfolio Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A
• ±20% Accurate, Fixed, Constant Current Limit
• Fast Overcurrent Response: 2 µs
• Deglitched Fault Reporting Selected Parts With (TPS20xxC) and Without (TPS20xxC - 2) Output Discharge Reverse Current Blocking
• Built - In Soft Start
• Ambient Temperature Range: - 40°C to 85°C
• UL Listed and CB - File No. E169910
