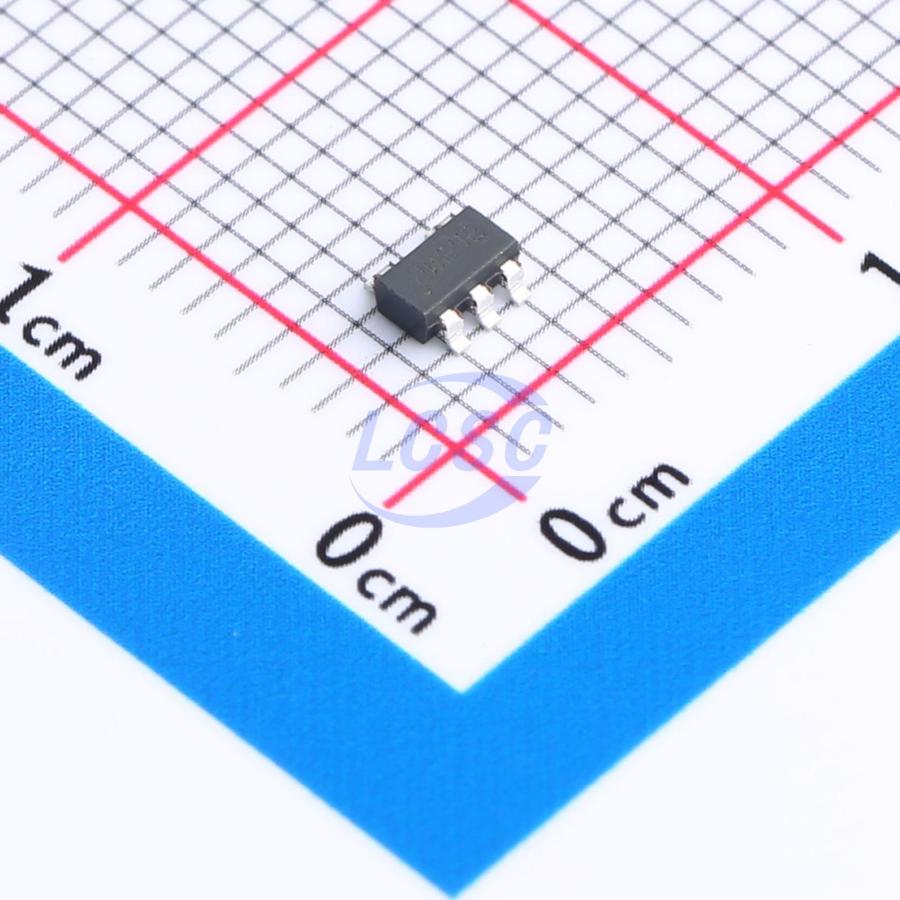

TPS2069EDBVR

The TPS20xxE power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers fixed current-limit thresholds for applications requiring 1.5-A or 2-A loading, with options between high or low enable polarization in different packages. The TPS20xxE family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the 2.7-V - 5.5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.

Applications

• PC and notebooks
• Gaming
• TV
• Connected peripherals and printers
• Data center and enterprise computing
• Short-circuit protection

Key features

• Single power switch family
• Pin-to-pin with existing TI Switch Portfolio
• Rated currents of 1.5 A and 2 A
• Supports 3.3-V and 5-V power rail
• ±20% accurate, fixed, constant current limit
• Fast overcurrent response: 2 µs
• Deglitched fault reporting
• Output discharge
• Reverse current blocking
• Built-in soft start
• Ambient temperature range: -40°C to 85°C
