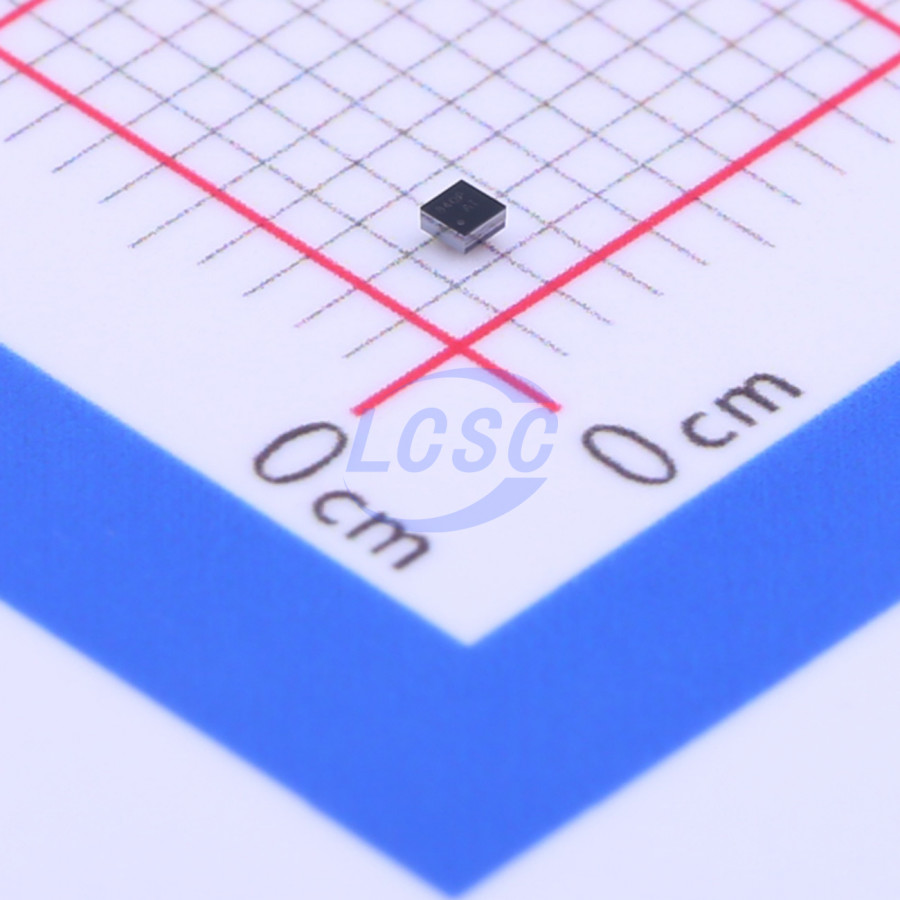

TPS22908YZTR
1 Active High 1A Load Switch DSBGA-4 Power Distribution Switches, Load Drivers RoHS
DSBGA-4ROHS3 CompliantActive
3.6V 1A 28mΩ On-Resistance Load Switch
- Manufacturer
- TI
- Manufacturer part #
- TPS22908YZTR
- Store part #
- C240334
- Package / case
- DSBGA-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C240334
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.88 | ₹304.40 |
| 50+ | ₹50.68 | ₹2,534.00 |
| 150+ | ₹46.32 | ₹6,948.00 |
| 500+ | ₹40.85 | ₹20,425.00 |
| 3,000+ | ₹38.43 | ₹1,15,290.00 |
| 6,000+ | ₹36.96 | ₹2,21,760.00 |
5 × ₹60.88
₹304.40
excl. GST
₹359.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22908YZTR
₹304.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- RDS(on)
- 28.2mΩ
- Operating Voltage
- 1V~3.6V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
The TPS22908 is a small, low R_ON load switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of -40°C to 85°C.
Applications
- Battery Powered Equipment
- Portable Industrial Equipment
- Portable Medical Equipment
- Portable Media Players
- Point of Sale Terminal
- GPS Devices
- Digital Cameras
- Portable Instrumentation
- Smartphones and Tablets
Key features
- Integrated P-Channel Load Switch
- Input Voltage: 1 V to 3.6 V
- 1 A Maximum Continuous Switch Current
- On-Resistance (Typical Values) R_ON = 28 mΩ at V_IN = 3.6 V; R_ON = 33 mΩ at V_IN = 2.5 V; R_ON = 42 mΩ at V_IN = 1.8 V; R_ON = 70 mΩ at V_IN = 1.2 V
- Maximum Quiescent Current = 1 μA
- Maximum Shutdown Current = 1 μA
- Low Control Input Thresholds Enable Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V Logic
- Controlled Slew Rate to Avoid Inrush Currents
- t_R = 105 μs at V_IN = 3.6V
- Four Terminal Wafer-Chip-Scale Package (WCSP)
- Quick Output Discharge (QOD)
