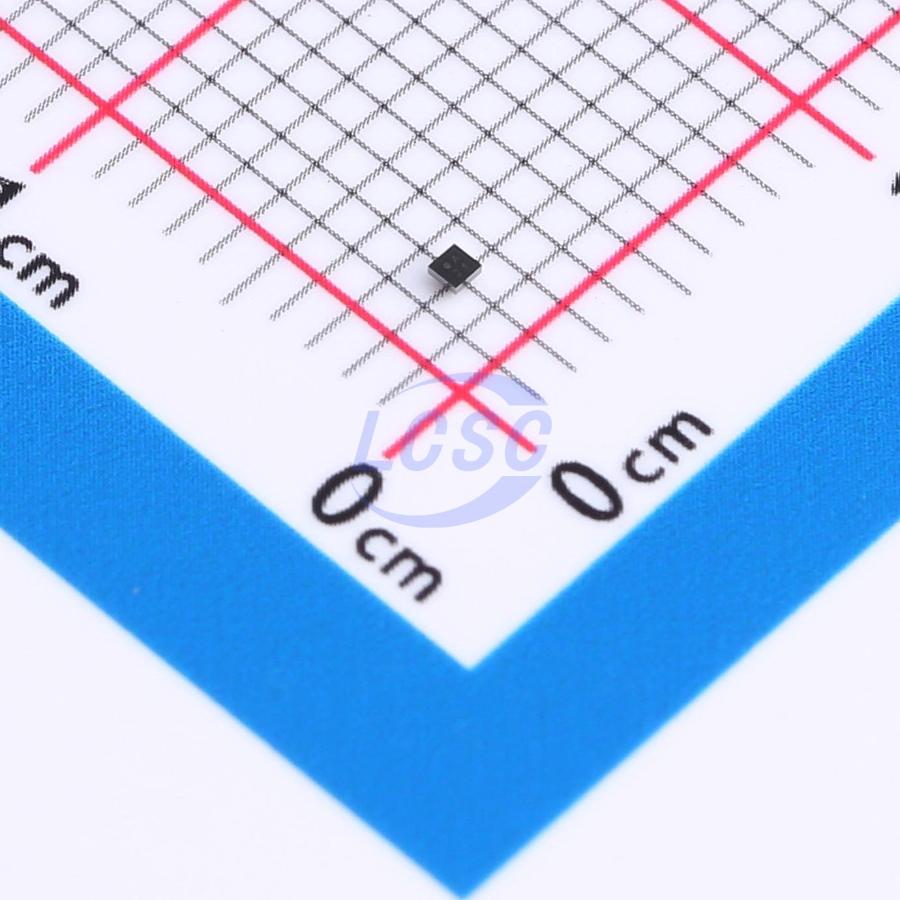

TPS22915CYFPR-TP
1 Active High 2A Load Switch CSP-4L(1x1) Power Distribution Switches, Load Drivers
CSP-4L(1x1)RoHSActive
Low Quiescent current Load Switch
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS22915CYFPR-TP
- Store part #
- C42449038
- Package / case
- CSP-4L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C42449038
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.32 | ₹111.60 |
| 50+ | ₹17.50 | ₹875.00 |
| 150+ | ₹15.44 | ₹2,316.00 |
| 500+ | ₹12.86 | ₹6,430.00 |
| 3,000+ | ₹11.71 | ₹35,130.00 |
| 6,000+ | ₹11.02 | ₹66,120.00 |
5 × ₹22.32
₹111.60
excl. GST
₹131.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22915CYFPR-TP
₹111.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Over temperature protection;Soft-start;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 30mΩ
- Operating Voltage
- 1.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The is a single channel load switch with ultra-low on resistance MOSFET. It is designed for load switching applications with ultra-low quiescent current and ultra-low standby current. The device is controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. The contains a P-channel MOSFET that can operate over an input voltage range of 1.2V to 5.5V and can support a maximum continuous current of 2A. The are available in a small 1 x 1mm CSP-4L Package. Standard products are Pb-free and Halogen-free.
Applications
- Notebook and Desktop Computers
- High-Side Power Protection Switchs
- Consumer Electronics
- Telecom Systems
- Digital TV
- USB Device Power Switch
- Motherboard USBPower Switch
Key features
- Wide Supply Voltage Range: 1.5V to 5.5V
- Quiescent current: 290nA @ Typ
- Standby current: 70nA @ Typ
- Maximum Output current: 2A
- Enable Active High
- Typical Rdson 30mQ ×4.2V
- Thermal Shutdown Protection
- Current Limiting Protection
- Hot Plug-In Application(Soft start)
- Reverse Current Flow Blocking (no body diode)
- RoHS and Halogen free compliance
- ESD Protection: 2kV HBM, 200V MM
- Package CSP-4L
