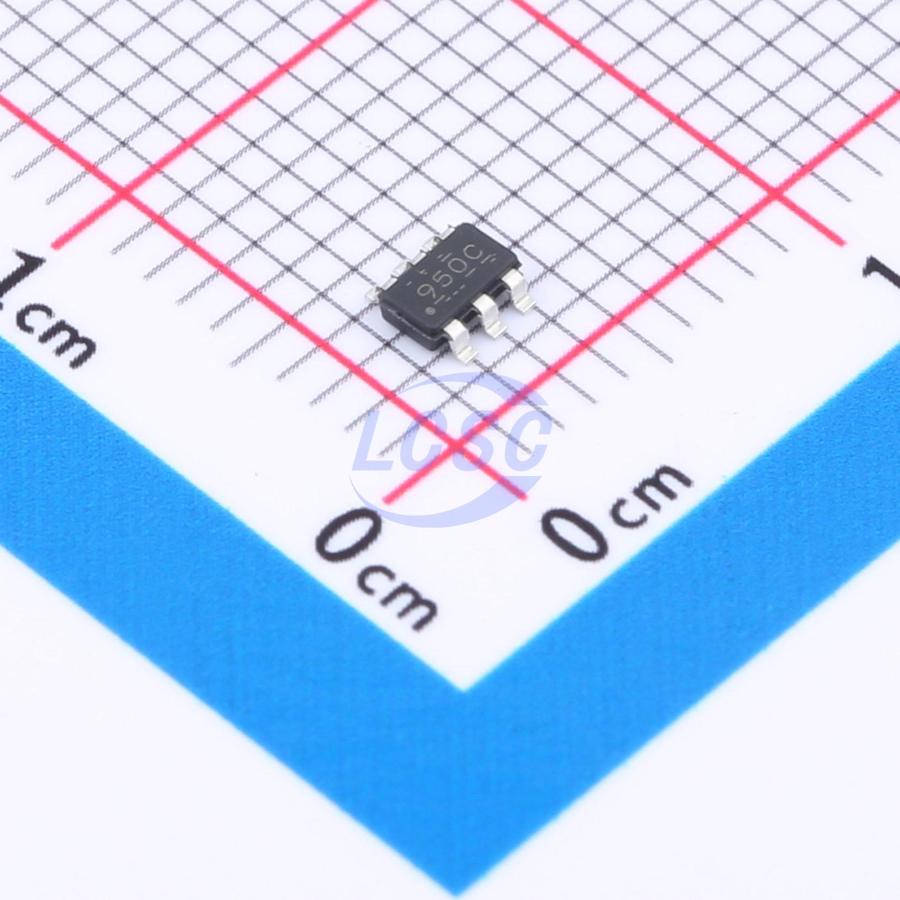

TPS22950CDDCR

1 3.2A Active High Load Switch SOT-23-6 Power Distribution Switches, Load Drivers RoHS

SOT-23-6ROHS3 CompliantActive

5.5-V, 3.2-A, 34-mΩ Adjustable Current Limited Load Switch

Manufacturer: TI
Manufacturer part #: TPS22950CDDCR
Store part #: C7587833
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,938 in stock

#C7587833

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹88.44	₹88.44
10+	₹70.41	₹704.10
30+	₹61.51	₹1,845.30
100+	₹52.59	₹5,259.00
500+	₹47.38	₹23,690.00
1,000+	₹44.56	₹44,560.00

Quantity (min 1)

1 × ₹88.44

₹88.44

excl. GST

₹104.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS22950CDDCR

₹88.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Soft-start;Latch protection
number of channels: 1
Maximum Continuous Current: 3.2A
Control Input Logic: Active High
RDS(on): 34mΩ
Operating Voltage: 1.8V~5.5V
Type: Load Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The TPS22950x is a compact single-channel load switch with robust protection against fault conditions, including adjustable output current limiting, reverse current blocking, and thermal shutdown. The switch state is controlled by a digital input that interfaces directly with low-voltage control signals. When power is first applied, an intelligent pull-down holds the ON pin from floating until system sequencing is complete. After the pin is intentionally driven high, the intelligent pull-down disconnects to prevent unnecessary power loss. The TPS22950/C uses auto-retry behavior during overcurrent events, while the TPS22950L employs a debounce time and latch-off behavior. The TPS22950x is available in standard WCSP and leaded SOT packages, with an operating ambient temperature range of -40°C to 125°C.
