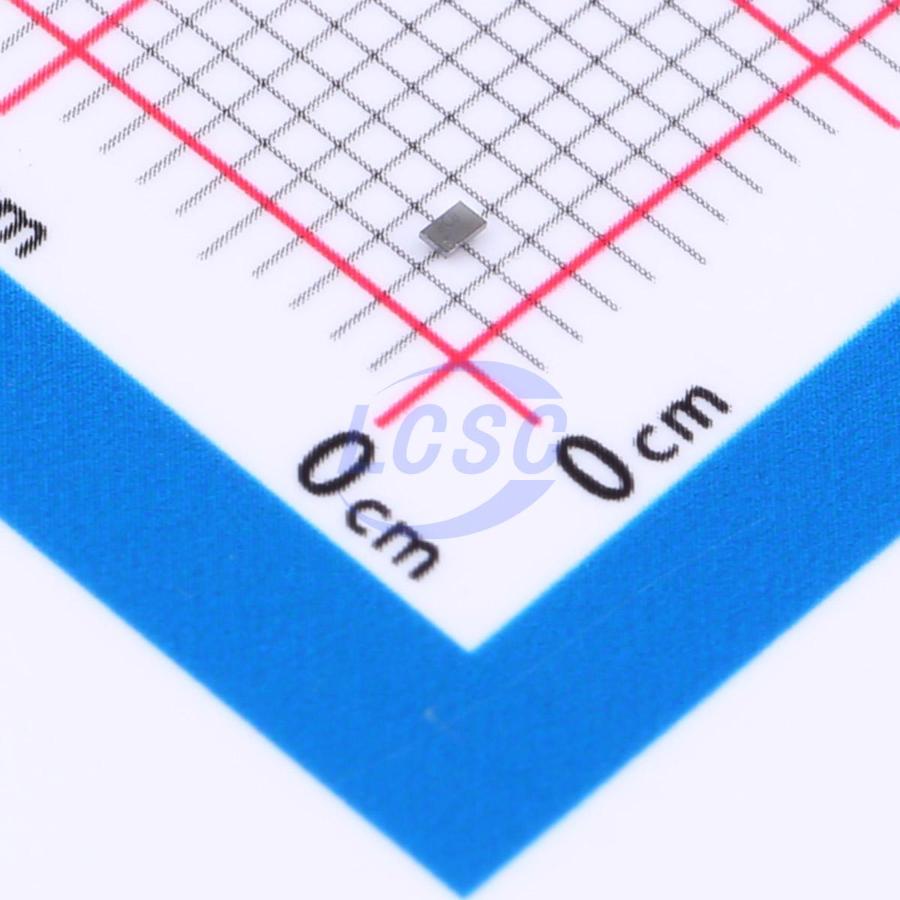

TPS22950YBHR

The TPS22950x is a small single-channel load switch that provides robust fault protection through adjustable output current limiting, reverse current blocking, and thermal shutdown. The switch on/off state is controlled by a digital input that can be directly interfaced with low-voltage control signals. At initial power-up, the device uses an intelligent pull-down resistor to keep the ON pin from floating until system sequencing is complete. Once the pin is intentionally driven high (>V_H), the intelligent pull-down resistor is disconnected to prevent unnecessary power dissipation. The TPS22950 responds to overcurrent events with automatic retry behavior, while the TPS22950L uses debounce time and latch-off behavior. The TPS22950x is available in a standard WCSP package and operates over an ambient temperature range of –40°C to 125°C.

Applications

• Consumer Electronics
• Tablets
• Laptops
• Gaming Accessories

Key features

• Input voltage range (V_IN): 1.8V to 5.5V
• Output current limit (I_LMT): 0.05A - 3.5A (typical)
• TPS22950: Auto-retry current limit response
• TPS22950L: Latch-off current limit response
• Thermal shutdown (TSD)
• On-resistance (R_ON):
• V_IN = 5V, R_ON: 34mΩ (typical)
• V_IN = 3.3V, R_ON: 41mΩ (typical)
• Slow turn-on timing for inrush current limiting (typical):
• V_IN = 5V, t_ON: 800us
• V_IN = 3.3V, t_ON: 550us
• Always-on reverse current blocking (TPS22950)
• Fault indication (FLT)
• Quick output discharge (QOD): 150Ω
• ON pin intelligent pull-down resistor (RpD,ON):
• ON ≥ V_H (I_ON): 50nA (maximum)
• ON ≤ V_L (Rp,ON): 500kΩ (typical)
• Low power consumption:
• On-state (I_Q): 40uA (typical)
• Shutdown state (I_SD): 0.2uA (typical)
• UL 2367 certified – File No. E169910
• Certified for I_LIM = 66mA to 2.46A
