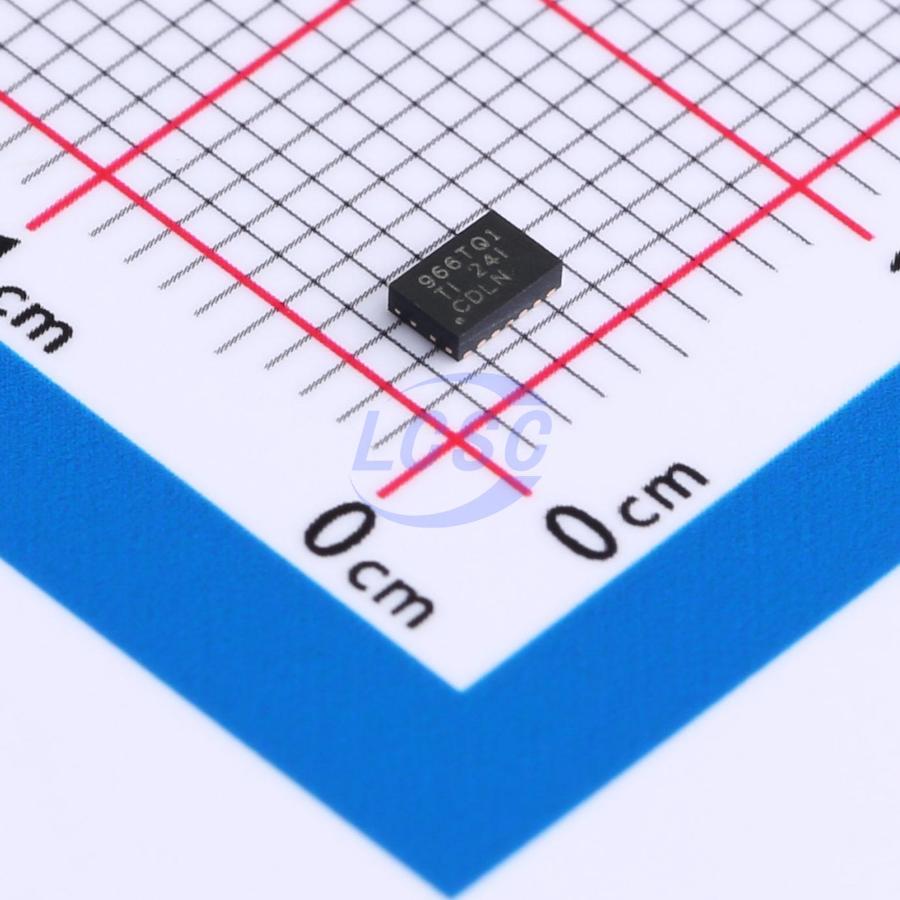

TPS22966TDPURQ1

Load Switch 2 Channel 4A WSON-14-EP(2x3)

WSON-14-EP(2x3)ROHS3 CompliantActive

Dual-channel, ultra-low resistance load switch

Manufacturer: TI
Manufacturer part #: TPS22966TDPURQ1
Store part #: C2149873
Package / case: WSON-14-EP(2x3)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,063 in stock

#C2149873

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹172.92	₹172.92
10+	₹157.04	₹1,570.40
30+	₹142.25	₹4,267.50
100+	₹131.16	₹13,116.00
500+	₹126.58	₹63,290.00
1,000+	₹124.20	₹1,24,200.00

Quantity (min 1)

1 × ₹172.92

₹172.92

excl. GST

₹204.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS22966TDPURQ1

₹172.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃
Features: Output discharge function;Soft-start
number of channels: 2
Maximum Continuous Current: 4A
Control Input Logic: Active High
Operating Voltage: 0V~5.5V
RDS(on): 16mΩ
Type: Load Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.047 g

Overview

The TPS22966-Q1 is a small, ultra-low R_ON dual-channel load switch with adjustable rise time. The device contains two N-channel MOSFETs operating over a 0V to 5.5V input voltage range, supporting up to 4A continuous current per channel. Each switch is independently controlled by an on/off input (ON1 and ON2) that interfaces directly with low-voltage control signals. The TPS22966-Q1 incorporates a 230Ω on-chip resistor for fast output discharge when the switch is turned off. The TPS22966-Q1 is available in a space-saving 2mm×3mm 14-SON small package (DPU) with an integrated thermal pad for enhanced power dissipation. The device is rated for operation from -40°C to 105°C in a natural convection environment.

Applications

Infotainment
ADAS (Advanced Driver Assistance Systems)

Key features

Qualified for automotive applications with the following characteristics per AEC-Q100:
Device temperature grade 2: ambient operating temperature range -40°C to 105°C
Device HBM ESD classification level H1C
Device CDM ESD classification level C6
Integrated dual-channel load switch
Input voltage range: 0V to 5.5V
Ultra-low on-resistance (R_ON)
R_ON = 16mΩ at V_IN = 5V (V_BIAS = 5V)
R_ON = 16mΩ at V_IN = 3.3V (V_BIAS = 5V)
R_ON = 16mΩ at V_IN = 1.8V (V_BIAS = 5V)
Maximum 4A continuous switching current per channel
Low quiescent current
80μA (both channels)
80μA (single channel)
Low control input threshold supporting 1.2V, 1.8V, 2.5V, and 3.3V logic devices
Configurable rise time
Quick output discharge (QOD)
14-pin SON package with thermal pad
