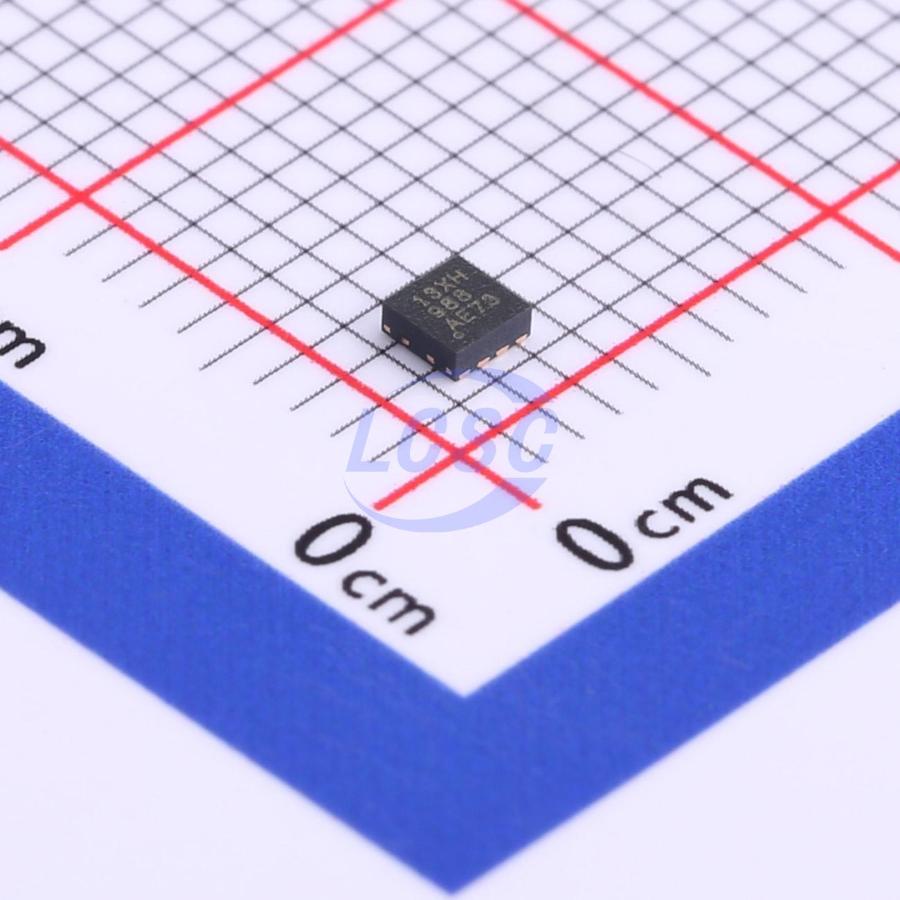

TPS22975DSGR

The TPS22975 product family consists of two devices: TPS22975 and TPS22975N. Each device is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. TPS22975 has an optional 230-Ω on-chip load resistor for quick output discharge when switch is turned off. The TPS22975 is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of -40°C to +105°C.

Applications

• Ultrabook Notebooks and Netbooks
• Tablet PC
• Consumer Electronics
• Set-top Boxes and Residential Gateways
• Telecom Systems
• Solid State Drives (SSDs)

Key features

• Integrated Single-Channel Load Switch
• Input Voltage Range: 0.6 V to VBIAS
• VBIAS Voltage Range: 2.5 V to 5.7 V
• On-Resistance (RON): RON = 16 mΩ (typical) at VIN = 0.6 V to 5.7 V, VBIA S= 5.7 V
• 6-A Maximum Continuous Switch Current
• Low Quiescent Current: 37 μA (typical) at VIN = VBIA S= 5 V
• Low-Control Input-Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic
• Configurable Rise Time
• Thermal Shutdown
• Quick-Output Discharge (QOD) (Optional)
• SON 8-pin Package with Thermal Pad
• ESD Performance Tested per JESD 22: 2000-V HBM and 1000-V CDM
