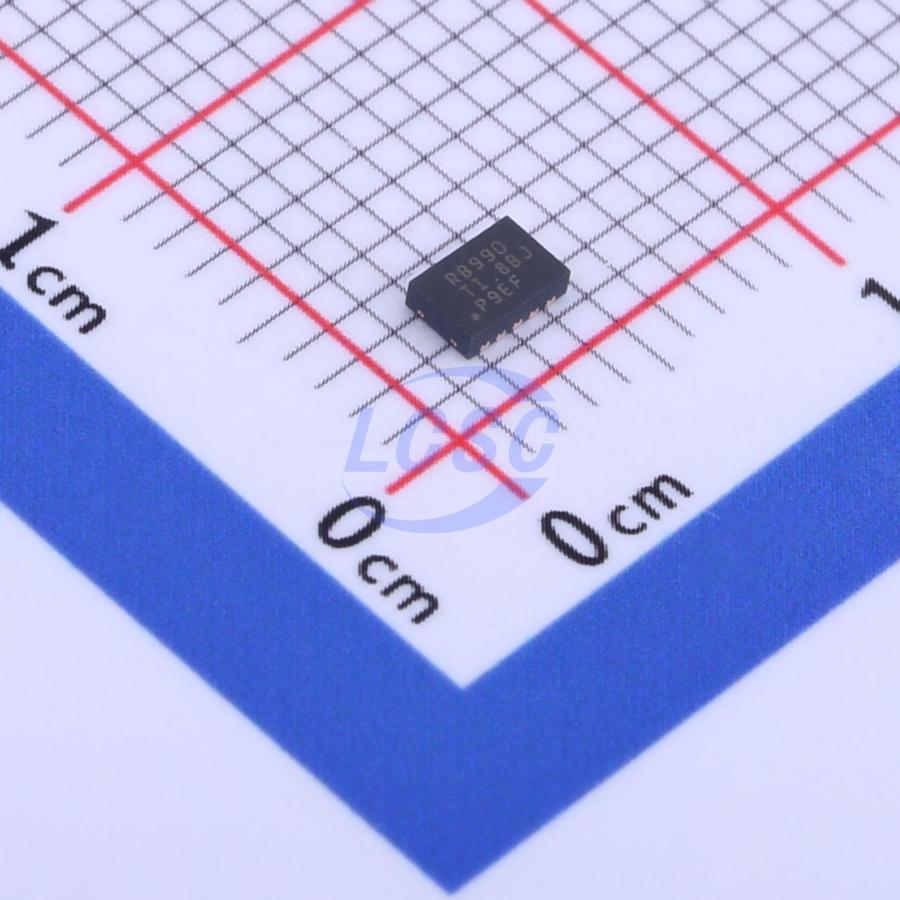

TPS22990DMLR
1 10A Active High Load Switch WSON-10-EP(2x3) Power Distribution Switches, Load Drivers RoHS
WSON-10-EP(2x3)ROHS3 CompliantActive
Load switch with 5.5V, 10A and on-resistance of 3.9mΩ
- Manufacturer
- TI
- Manufacturer part #
- TPS22990DMLR
- Store part #
- C962990
- Package / case
- WSON-10-EP(2x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,498 in stock
#C962990
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.90 | ₹112.90 |
| 10+ | ₹95.07 | ₹950.70 |
| 30+ | ₹86.14 | ₹2,584.20 |
| 100+ | ₹77.45 | ₹7,745.00 |
| 500+ | ₹64.62 | ₹32,310.00 |
| 1,000+ | ₹62.00 | ₹62,000.00 |
1 × ₹112.90
₹112.90
excl. GST
₹133.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22990DMLR
₹112.90 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 10A
- Control Input Logic
- Active High
- RDS(on)
- 3.9mΩ
- Operating Voltage
- 600mV~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Integrated single-channel load switch. VBIAS voltage range: 2.5V to 5.5V; VIN voltage range: 0.6V to VBIAS. On-resistance RON = 3.9mΩ (typical value at ΔVIN = 5V (VBIA S = 5V)), RON = 3.9mΩ (typical value at VIN = 3.3V (VBIA S = 3.3V)). Maximum continuous switching current of 10A. Quiescent current IQ,VBIAS = 63μA (at ΔVBIAS = 5V). Turn-off current with controlled slew rate adjustable via CT, Power Good (PG) indicator, Quick Output Discharge (QOD) (TPS22990 only). Electrostatic discharge (ESD) performance of 2kV Human Body Model (HBM) and 1kV Charged Device Model (CDM) as tested according to JESD 22.
Applications
- Laptops, Chromebooks, and tablets
- Desktop and industrial PCs
- Solid-state drives (SSDs)
- Servers
- Telecom systems
Key features
- Integrated single-channel load switch
- VBIAS voltage range: 2.5V to 5.5V
- VIN voltage range: 0.6V to VBIAS
- On-resistance: RON = 3.9mΩ (typical at ΔVIN = 5V (VBIAS = 5V)), RON = 3.9mΩ (typical at VIN = 3.3V (VBIAS = 3.3V))
- 10A maximum continuous switching current
- Quiescent current IQ,VBIAS = 63μA (at ΔVBIAS = 5V)
- Controlled slew rate with CT-adjustable turn-off current
- Power Good (PG) indicator
- Quick Output Discharge (QOD) (TPS22990 only)
- ESD performance per JESD 22: 2kV Human Body Model (HBM) and 1kV Charged Device Model (CDM)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS22990DMLT#C2653782TI · WSON-10-EP(2x3) | TI | WSON-10-EP(2x3) | 1 | ₹107.37 · 1 in stock | View |
| TPS22990NDMLT#C2150113TI · WSON-10-EP(2x3) | TI | WSON-10-EP(2x3) | 150 | ₹243.27 · 150 in stock | View | |
 | TPS22990NDMLR#C2680451TI · WSON-10-EP(2x3) | TI | WSON-10-EP(2x3) | 2,015 | ₹108.92 · 2,015 in stock | View |
| NLPS22990MN1TAG#C604187onsemi · WDFN-10-EP(2x3) | onsemi | WDFN-10-EP(2x3) | On request | ₹50.10 · 0 in stock | View | |
