TPS22992SRXNR

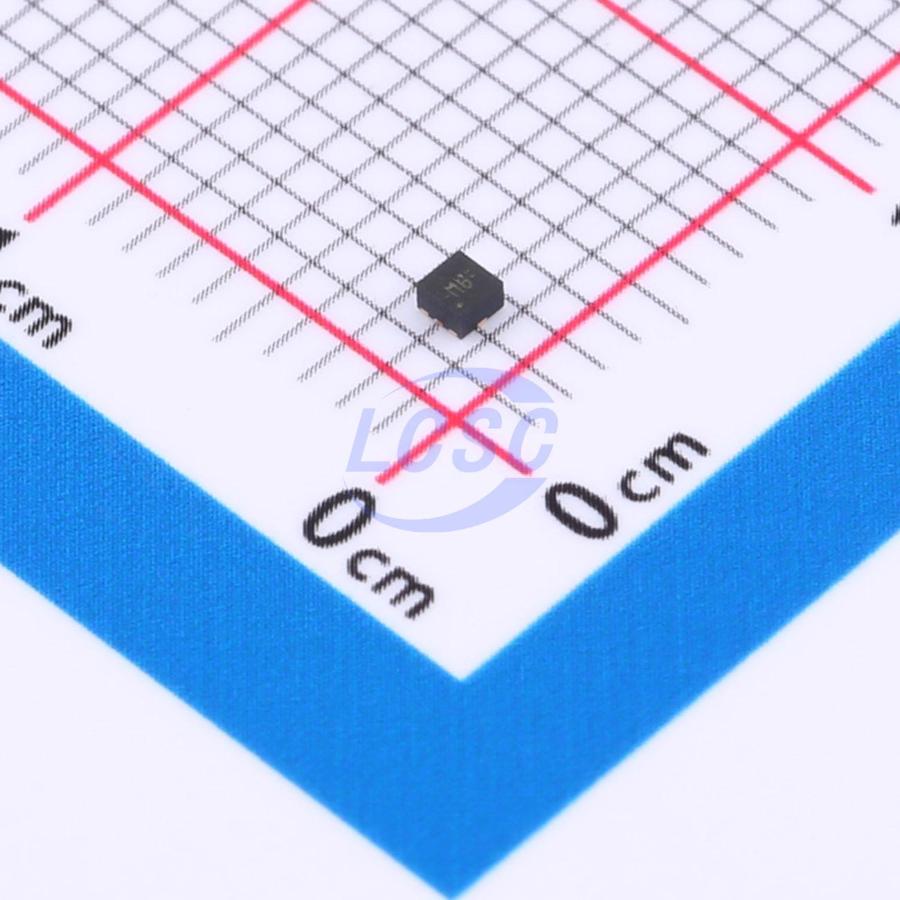

Load Switch 1 Channel 6A WQFN-8-HR(1.25x1.25)
WQFN-8-HR(1.25x1.25)ROHS3 CompliantActive
5V, 8.7mΩ, 6A Load Switch with Adjustable Rise Time
- Manufacturer
- TI
- Manufacturer part #
- TPS22992SRXNR
- Store part #
- C3229354
- Package / case
- WQFN-8-HR(1.25x1.25)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,735 in stock
#C3229354
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.47 | ₹247.35 |
| 50+ | ₹39.60 | ₹1,980.00 |
| 150+ | ₹35.38 | ₹5,307.00 |
| 500+ | ₹30.10 | ₹15,050.00 |
| 3,000+ | ₹27.76 | ₹83,280.00 |
| 6,000+ | ₹26.34 | ₹1,58,040.00 |
5 × ₹49.47
₹247.35
excl. GST
₹291.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS22992SRXNR
₹247.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Soft-start;Output discharge function
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 6A
- RDS(on)
- 8.7mΩ
- Operating Voltage
- 1V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TPS22992x product family includes two devices: TPS22992 and TPS22992S. Each device is a single-channel load switch featuring an 8.7mΩ power MOSFET, designed to maximize power density in applications up to 5.5V and 6A. The configurable rise time provides flexibility for power sequencing and minimizes inrush current for high-capacitance loads. The switch is controlled by an enable pin (ON) that can be directly connected to low-voltage GPIO signals (V|H = 0.8V). The TPS22992x devices feature an optional QOD pin for quick output discharge when the switch is turned off, and the output fall time (tFALL) can be adjusted via an external resistor. A power good (PG) signal indicates when the main MOSFET is fully on, which can be used to enable downstream loads. Both TPS22992x devices include thermal shutdown protection to ensure protection in high-temperature environments. The TPS22992S device also integrates overcurrent protection to prevent damage when the output is shorted to ground during operation or startup.
Applications
- Data Storage
- PCs and Laptops
- Industrial PCs
- Optical Modules
Key features
- Input voltage range (VIN):
- TPS22992: 0.1V to 5.5V
- TPS22992S: 1V to 5.5V
- Bias voltage (VBIAS): 1.5V to 5.5V
- Maximum continuous current: 6A
- On-resistance (RON): 8.7mΩ (typical)
- Adjustable slew rate control
- Adjustable quick output discharge (QOD)
- Open-drain power good (PG) signal
- Low power consumption:
- On-state (IQ): 10μA for TPS22992 (typical)
- On-state (IQ): 30μA for TPS22992S (typical)
- Shutdown state (ISD): 0.1μA (typical)
- Short-circuit protection (TPS22992S only)
- Thermal shutdown
- ON pin smart pull-down resistor (RpD,ON)
- ON ≥ V|H (ION): 25nA (typical)
- ON ≤ V|L (Rp,ON): 500kΩ (typical)
