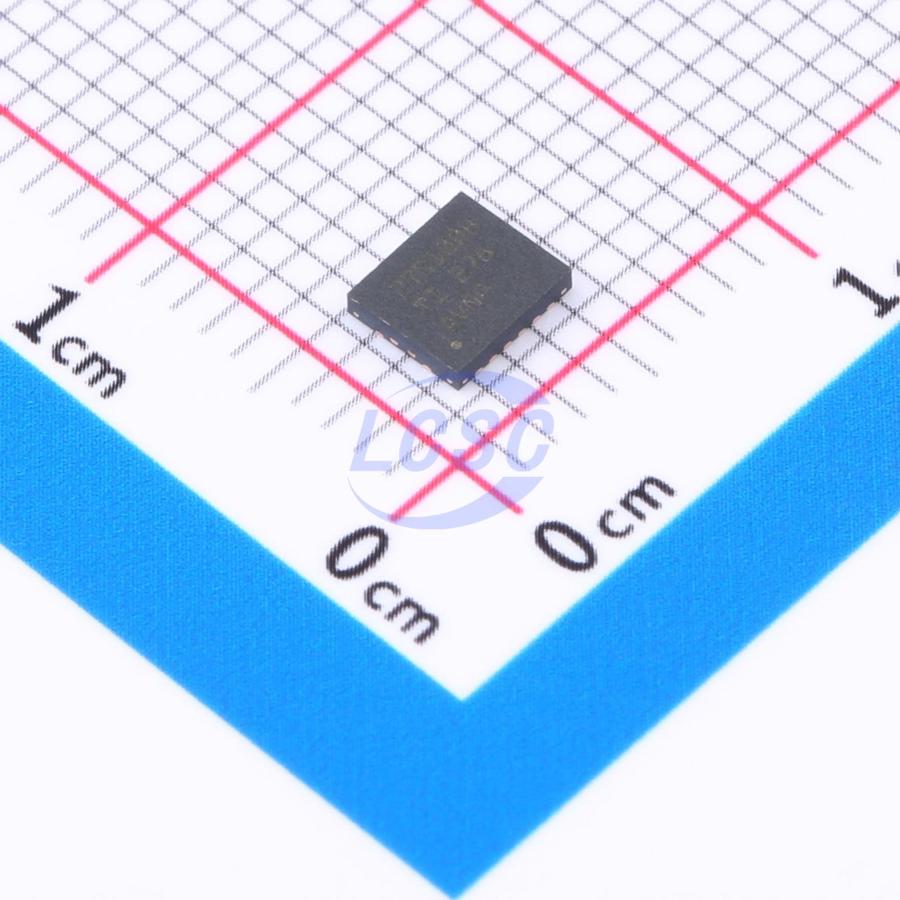

TPS27S100BRRKR

The TPS27S100x is a fully protected single-channel high-side switch with an integrated NMOS and charge pump. Comprehensive diagnostic features and a high-accuracy current monitor enable intelligent load control. The adjustable current limit greatly improves overall system reliability. Device diagnostics are available in two versions to support digital fault status and analog current monitor output. The precise current monitor and adjustable current limit characteristics set this device apart in the market.

Applications

• Programmable Logic Controllers
• Building Automation
• Telecommunications/Networking

Key features

• 80mΩ single-channel high-side switch with comprehensive diagnostic features — TPS27S100A: open-drain status output; TPS27S100B: current monitor analog output
• Wide operating voltage range: 3.5V to 40V
• Ultra-low standby current, below 0.5μA
• Input control compatible with 3.3V and 5V logic
• Diagnostic enable for multiplexing MCU, analog, or digital interfaces
• ±16kV IEC 61000-4-2 ESD contact discharge; ±4kV IEC 61000-4-4 electrical fast transient; ±1.0kV/42Ω IEC 61000-4-5 surge
• Overload and short-to-GND protection
• Inductive load negative voltage clamping
• Undervoltage lockout (UVLO) protection
• Thermal shutdown and thermal oscillation with auto-recovery
• Loss-of-ground protection
• Open-load/short-to-supply detection in ON and OFF states
• Overload and short-to-GND detection
• Thermal shutdown and thermal oscillation detection
• Thermally enhanced 14-pin PWP or 16-pin QFN package
