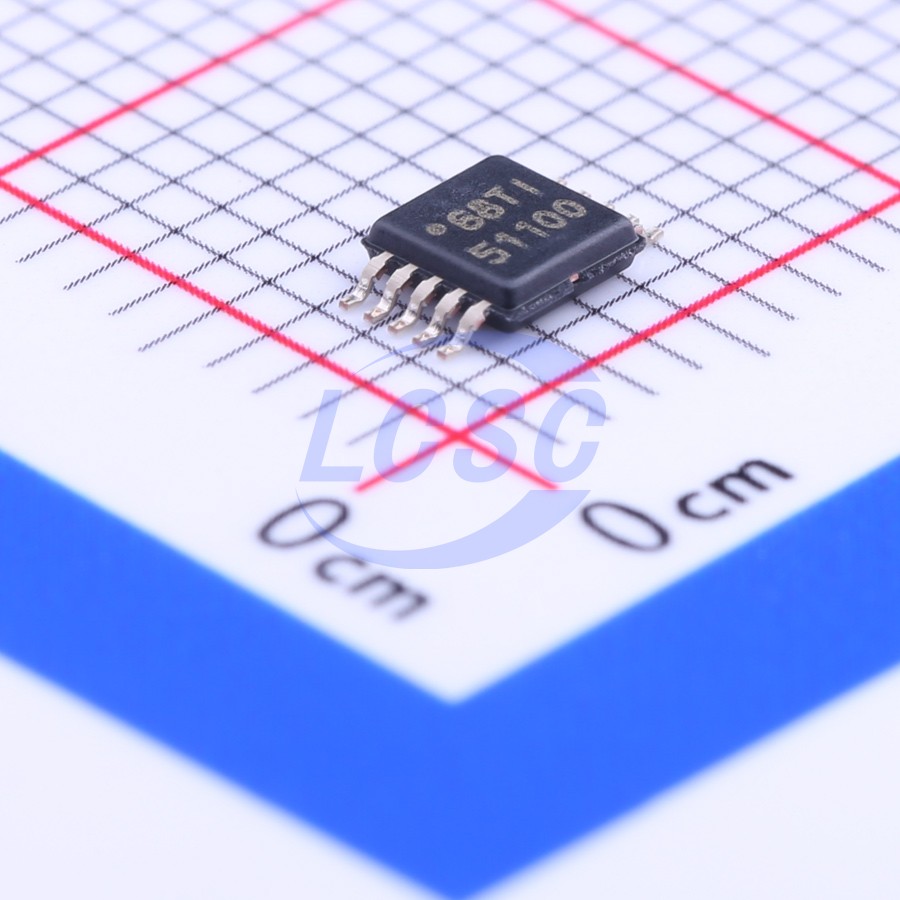

TPS51100DGQR
3A MSOP-10-EP Special Purpose Regulators RoHS
3-A Sink/Source DDR Termination Regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS51100DGQR
- Store part #
- C131927
- Package / case
- MSOP-10-EP
- Category
- Special Purpose Regulators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,222 in stock
#C131927
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹248.17 | ₹248.17 |
| 10+ | ₹222.94 | ₹2,229.40 |
| 30+ | ₹209.02 | ₹6,270.60 |
| 100+ | ₹193.14 | ₹19,314.00 |
| 500+ | ₹125.06 | ₹62,530.00 |
| 1,000+ | ₹121.81 | ₹1,21,810.00 |
1 × ₹248.17
₹248.17
excl. GST
₹292.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS51100DGQR
₹248.17 for 1 + GST
Specifications
- Features
- Output voltage tracking;Cable compensation;Overcurrent Protection;Output discharge
- Output Current
- 3A
- Input Voltage
- 4.75V~5.25V
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.286 g
Overview
Input Voltage Range: 4.75 V to 5.25 V VLDOIN Voltage Range: 1.2 V to 3.6 V 3-A Sink/Source Termination Regulator Includes Droop Compensation Requires Only 20-μF Ceramic Output Capacitance Supports Hi-Z in S3 and Soft-Off in S5 1.2-V Input (VLDOIN) Helps Reduce Total Power Dissipation Integrated Divider Tracks 0.5 VDDQSNS for VTT and VTTREF Remote Sensing (VTTSNS) ±20 mV Accuracy for VTT and VTTREF 10-mA Buffered Reference (VTTREF) • Built-In Soft-Start, UVLO, and OCL Thermal Shutdown Supports JEDEC Specifications
Applications
- DDR, DDR2, DDR3 Memory Termination
- SSTL-2, SSTL-18, and HSTL Termination
Key features
- Input Voltage Range: 4.75 V to 5.25 V
- VLDOIN Voltage Range: 1.2 V to 3.6 V
- 3-A Sink/Source Termination Regulator
- Includes Droop Compensation
- Requires Only 20-μF Ceramic Output Capacitance
- Supports Hi-Z in S3 and Soft-Off in S5
- 1.2-V Input (VLDOIN) Helps Reduce Total Power Dissipation
- Integrated Divider Tracks 0.5 VDDQSNS for VTT and VTTREF
- Remote Sensing (VTTSNS) ±20 mV Accuracy for VTT and VTTREF
- 10-mA Buffered Reference (VTTREF)
- Built-In Soft-Start, UVLO, and OCL
- Thermal Shutdown
- Supports JEDEC Specifications
