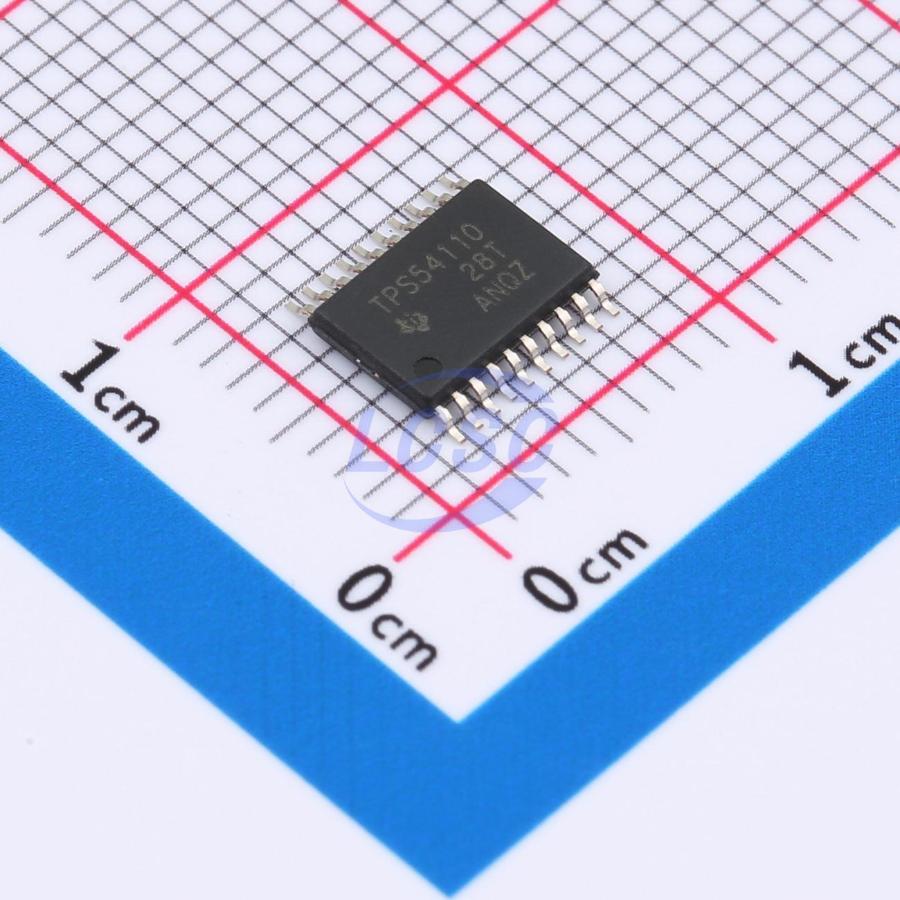

TPS54110PWP

The TPS54110 is a low input voltage, high output current, synchronous step-down PWM converter with all required active components integrated. In addition to the listed features, the substrate includes a true high-performance voltage error amplifier (providing high performance under transient conditions); an undervoltage lockout circuit (to prevent the input voltage from reaching 3V during startup); an internally and externally configurable slow-start circuit (to limit inrush current); and a power-good output (for processor/logic reset, fault signaling, and power sequencing). The TPS54110 device is housed in a thermally enhanced 20-pin HTSSOP(PWP) PowerPAD package, eliminating the need for large heat sinks. Evaluation modules and additional technical support are available to facilitate rapid high-performance power supply design, meeting demanding device development cycle requirements.

Applications

• Low-voltage, high-density systems powered by 5V or 3.3V supply
• Point-of-load regulation for high-performance DSP, FPGA, ASIC, and microprocessors
• Broadband, networking, and fiber optic communication infrastructure
• Portable computing/notebook computers

Key features

• Integrated MOSFET switch for high efficiency at 1.5A continuous source or sink output current
• Adjustable output voltage from 0.9V to 3.3V with 1% accuracy
• External compensation for design flexibility
• Fast transient response
• Wide PWM frequency range: fixed 350kHz, 550kHz, or adjustable 280kHz to 700kHz
• Load protected by peak current limiting and thermal shutdown
• Integrated solution reduces board area and total cost
